| Model: | NT-iMXTAP-12G-E |
|---|---|
| Brand: | NetTAP® |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | Network TAP , Network Visibility , network packet brok |
| Price: |
¥7000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:26 Oct, 2021 |
1- Overviews
NetTAP®A full visual control of Data Acquisition device(2*GE 10/100/1000MBASE-T ports, plus 8*GE SFP ports).

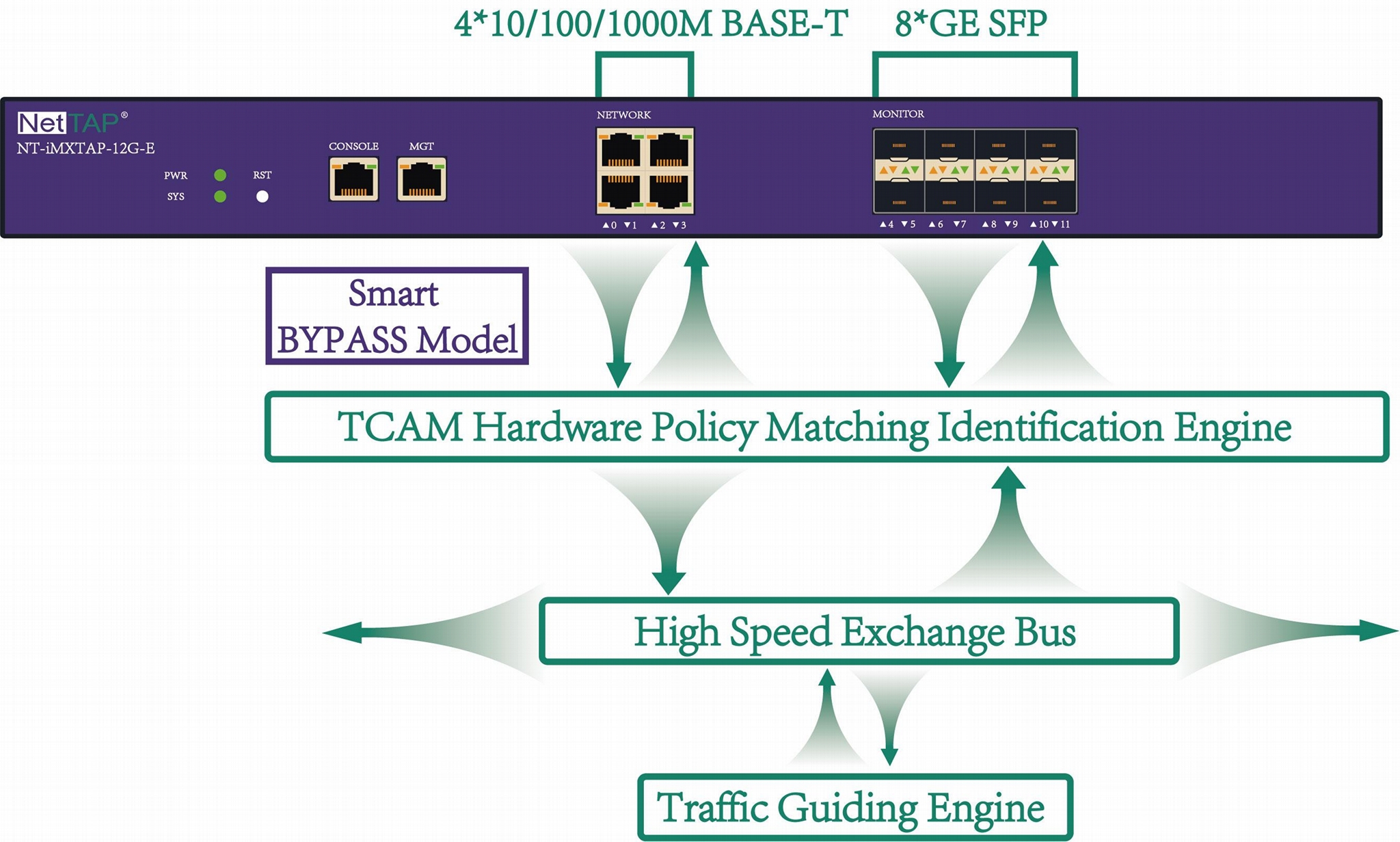

NetTAP® A full Data Scheduling Management device(duplex Rx/Tx processing).
NetTAP® A full pre-processing and re-distribution device(bidirectional bandwidth 16Gbps).

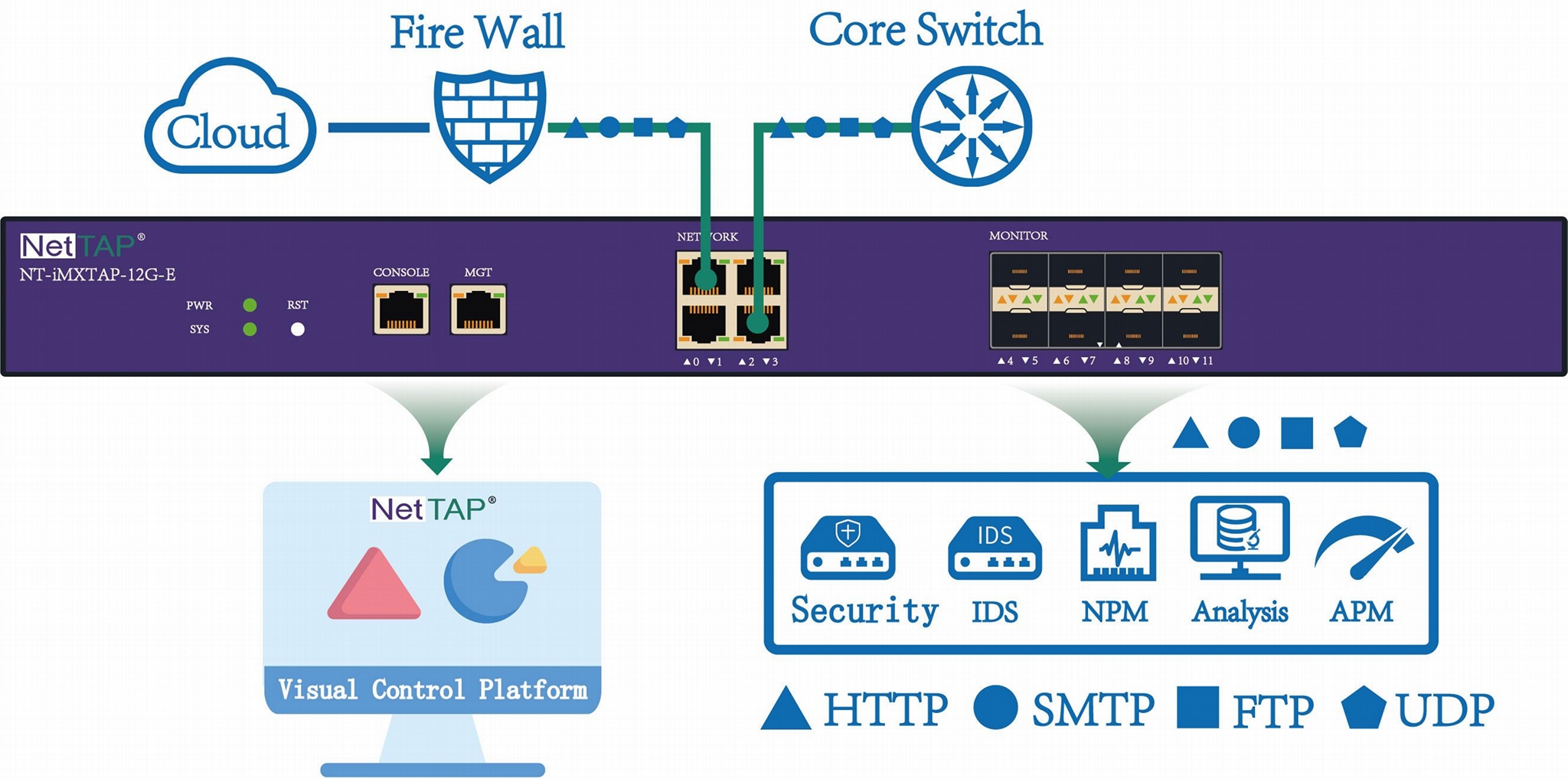

NetTAP® Supported collection & reception of link data from different network element locations.
NetTAP® Supported collection & reception of link data from different switch routing nodes.
NetTAP® Supported raw packet collected, identified, analyzed, statistically summarized and marked.
NetTAP® Supported to realize irrelevant upper packaging of Ethernet traffic forwarding, supported all kinds of Ethernet packaging protocols, and aslo 802.1q/q-in-q, IPX/SPX, MPLS, PPPO, ISL, GRE, PPTP etc. protocol packaging.
NetTAP® Supported raw packet output for monitoring equipment of BigData Analysis, Protocol Analysis, Signaling Analysis, Security Analysis, Risk Management and other required traffic.
NetTAP® Supported real-time packet capture analysis, data source identification.
2- Specifications
|
NT-iMXTAP-12G-E NetTAP® NPB Functional Parameters |
||
|
Network Interface |
GE Electrical Ports |
16*10/100/1000MBASE-T |
|
SFP Slots |
8*GE SFP ports, support GE Optical/Electrical Module |
|
|
Deployment mode |
Inline mode |
support max 2*10/100/1000MBASE-T inline mode |
|
SPAN monitoring input |
support max 15*SPAN inputs |
|
|
Monitoring Output |
support max 15*monitoring outputs |
|
|
Functions |
Total QTYs interface |
12 |
|
Line speed process capability |
12Gbps |
|
|
Traffic replication / aggregation / distribution |
support |
|
|
In-line mode and SPAN monitoring |
support |
|
|
Up/Down Traffic Aggregation |
support |
|
|
Up/Down Traffic Monitoring |
support |
|
|
Distribution based on traffic identification |
support |
|
|
Distribution based on IP / protocol / port Five tuple traffic identification |
support |
|
|
Optical interface single fiber transmission |
support |
|
|
Support Ethernet encapsulation independence |
support |
|
|

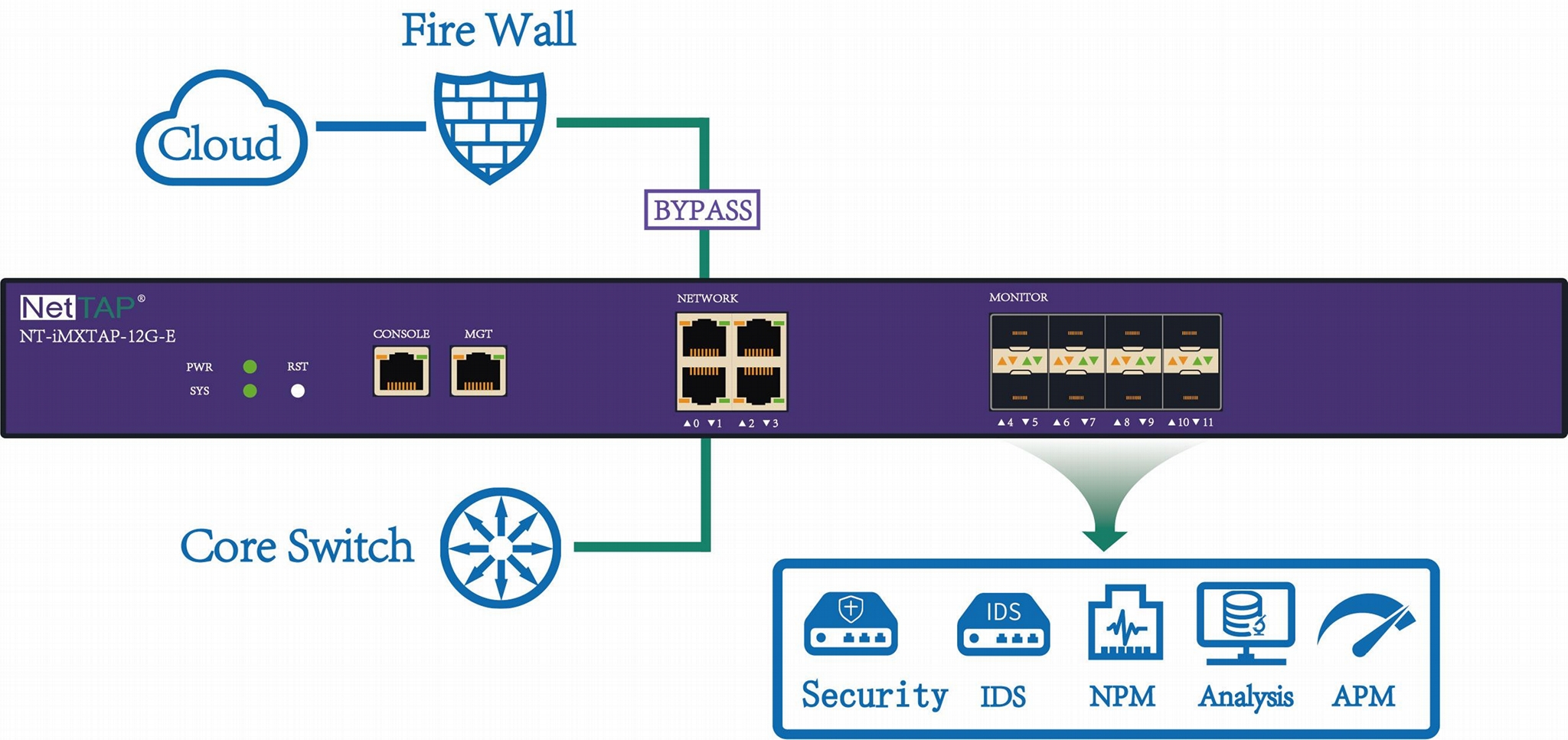

BYPASS Function(Inline mode) |
support |
|
|
BYPASS switch time(Inline mode) |
< 50ms |
|
|
Network Side Delay |
< 100ns |
|
|
LinkReflect(Inline mode) |
support |
|
|
No Flash Break when Power ON/OFF |
support |
|
|
CONSOLE Network Management |
support |
|
|
IP/WEB Network Management |
support |
|
|
SNMP V1/V2C Network Management |
support |
|
|
TELNET/SSH Network Management |
support |
|
|
S OG Protocol |
support |
|
|
User authentication function |
Password authentication based on user name |
|
|
Electric(1+1 Redundant Power System-RPS) |
Rated supply voltage |
AC110-240V/DC-48V (Optional) |
|
Rated power frequency |
50HZ |
|
|
Rated input current |
AC-3A / DC-10A |
|
|
Rated power function |
100W |
|
|
Environment |
Operating Temperature |
0－50℃ |
|
Storage Temperature |
-20-70℃ |
|
|
Operating Humidity |
10%-95%, Non-condensing |
|
|
User Configuration |
Console Configuration |
RS232 interface,9600,8,N,1 |
|
Password authentication |
support |
|
|
Rack Height |
Rack space (U) |
1U 485mm*44.5mm*350mm |
3- Order Information
NT-iMAXTAP-12G-E 2*GE 10/100/1000M BASE-T ports, plus 8*GE SFP ports, max 12Gbps
