SMA Connector

Model:FT-Connector-12
Brand:Futai
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Terminal
Label:SMA Connector , SMA Connector , SMA Connector
Price: US $0.5 / pc
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

Futai HK Co., Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:20 Dec, 2019

Product Description

The SMA seriesconnectors for use with semi-rihid and flexible RF cables,are used for microwave applications requirng high performance.They are characterized by their small size and high reliability,and be inter-changeable with the same-type connectors



SMA Connector

our company can supply the conenctor according to your drawing







Model

FT-Connector-125SMA

Major Technical Characteristics

Type

FT-Connector-125SMA

Impedance

50Ω

Frequency Range

DC~4GHz

Center conductor retention force

≥0.28 N

Insertion Loss

≤0.30dB/1.5GHz

Voltage Standing Wave Ratio

Straight Flexible Cable ≤1.35/3GHz

Right angle Flexible Cable ≤1.45/1GHz

Durability(mating)

≥500(cycles)

Cable

RG174,RG316

Material & Plating

Body

Brass

Gold plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium-copper Customized)

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber





























































Our Company other products:
Futai HK Co.,Ltdis specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.

We are welcoming you to ask sample for testing.
Welcome to our website to work together:
http://www.futai8.com        http://www.gpsgf.com   http://futaihk.en.alibaba.com





Product Image

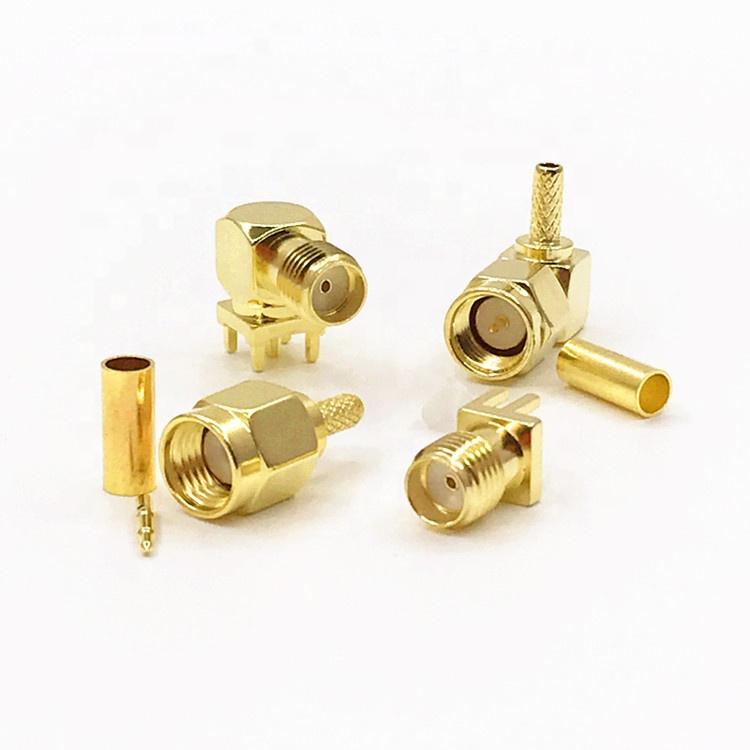

SMA Connector 1
