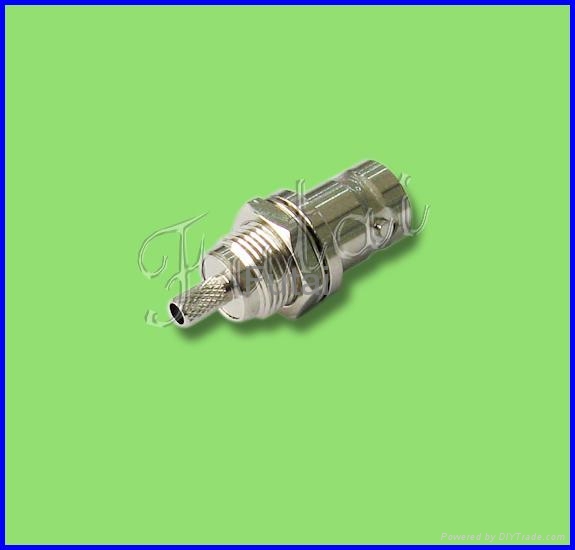

BNC Female for RG174/316 Cable RF Coaxial Connector

BNC Female for RG174/316 Cable RF Coaxial Connector 1

BNC Female for RG174/316 Cable RF Coaxial Connector 2

Model:	FT-Connector068
Brand:	Futai
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Components / Terminal
Label:	BNC female connector , bnc rf connector , bnc antenna
Price:	-
Min. Order:	10 pc

Inquire Now Add to Basket

Member Information

Futai HK Co., Limited

Biz MemberGuang Dong - China

Live Chat:

Last Online:19 Oct, 2023

Product Description

The BNC connectors are for low power,quick connect/disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same-type connectors of abroad.They are widely used connect of the RF coaxial-cables in electronic equipment and instuments.Characteristic impedance 50Ω,75Ω.

We can produce the connector according to your drawing or requirement.

BNC FEMALE RF COAXIAL CONNECTOR FOR RG174/316 CABLE

Specifications:

Model	FT-Connector068
Major Technical Characteristics
Type	BNC-C-KY1.5-068
Impedance	50Ω
Frequency Range	DC～4GHz
Center conductor retention force	≥0.57 N
Insertion Loss	≤0.20dB/3GHz
Insulation resistance	≥5000MΩ
Voltage Standing Wave Ratio	Straight ≤1.22/3GHz
	Right angle ≤1.30/3GHz
Durability(mating)	≥500(cycles)
Cable	RG174，RG316
Material & Plating
Body	Brass	Nickle plated
Pin contact	Brass	Gold or silver plated
Socket contact	Beryllium-copper	Gold or silver plated
Resilient contact	Tin bronze	Gold or silver plated
Insulator	PTFE
Crimp ferrule	Copper alloy	Nickel or gold plated
O-ring sealing	6146 silicone rubber

Our Company Other Products:
Futai HK Co.,Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.

We are welcoming you to ask sample for testing ,welcome to our company website to do business.
http://www.futai8.com http://www.gpsgf.com http://futaihk.en.alibaba.com
