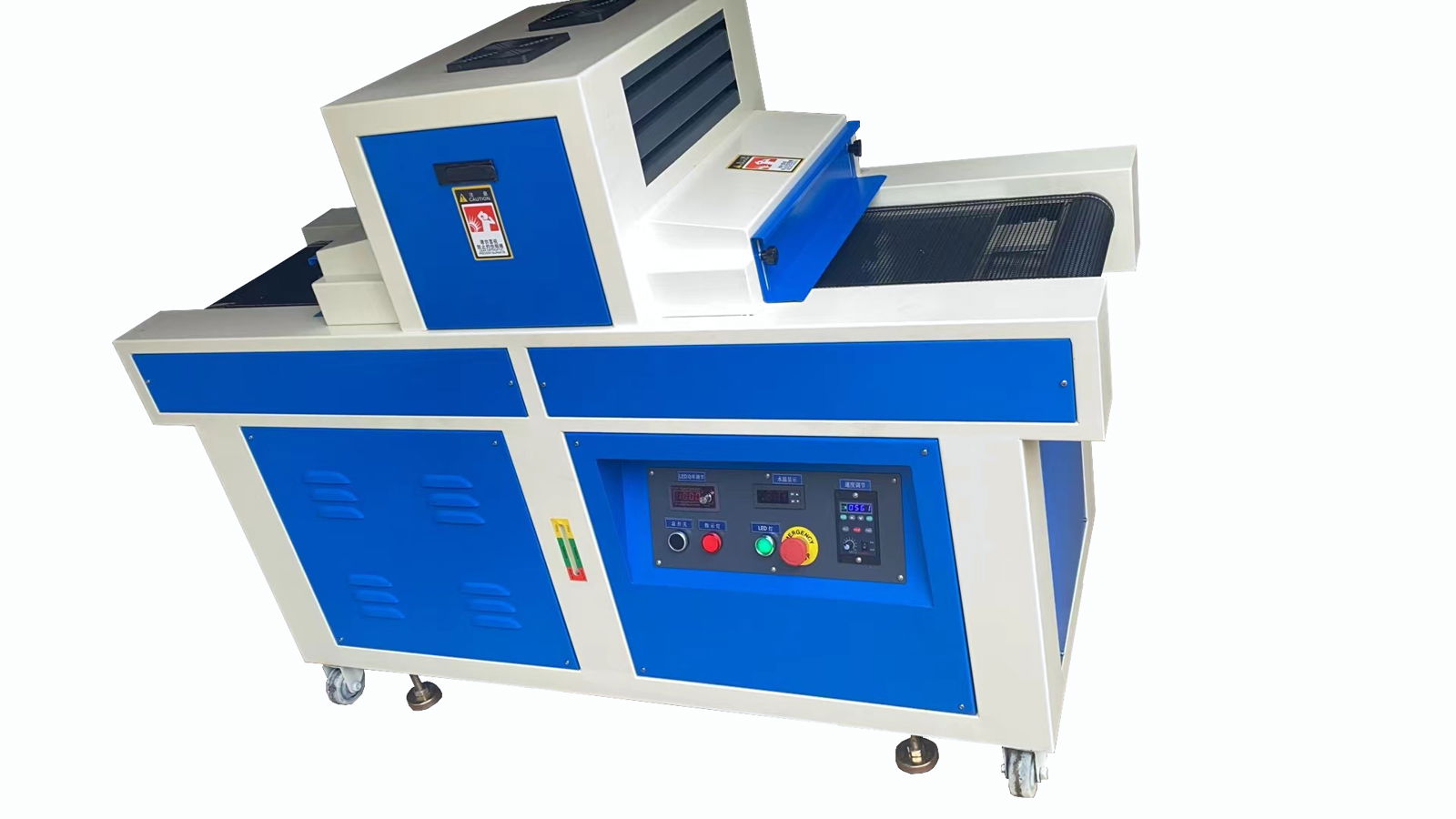

LED UV Curing Machine TM-300LEDUVF

Model:TM-300LEDUVF
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:LEDUV Curing Machine , LEDUV DRYING Oven , LED UV Machine
Price: US $6000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:28 Nov, 2022

Product Description

Our last new LED UV Curing Model is TM-300UVF. it is small Volume and easy carrying .widely  use for  of field of drying  printing LED UV ink ,LED UV paper printing ,LED UV glue ,LED UV tunnel drying ,LED UV ink , LEDUV testing .favorable price and high quality .

1. Cold light source, no heat radiation, suitable for bonding heat sensitive materials
2. Immediately on and off, no preheating is required, and the irradiation intensity can reach 500mw/cm2--12000mw/cm2 or more.
3. Compact size, making it easy to integrate into fully automated production lines and equipment
4. UV LED has no infrared radiation, no harmful gas, and meets ROHS standards. Safer and more environmentally friendly than traditional mercury lamps
5. The service life is over 20,000 hours, which can greatly reduce operating costs and maintenance work hours.
6. The connecting cable is a bending-resistant cable, which can be installed at the movable part at will, to meet the needs of repeated movement.


Tech  Parameter

1.Model  NO. TM-300LEDUVF

2.max product width: 300mm

3.max product length:1200mm

4.UV Process shine area: 300×400mm

5.conveyer speed: 0-10m/min

6.UV Lamp power:1.5KW *1 PCS (Can be cu

7.conveyer belt size:1200*300 (L*W)

8.UV light power supply: 220V/50 HZ

9.UV Machine  Dimension: (L*W*H)1300×320×1350mm

10.Net Weight:150kg

LED  UV Curing Machine

Model number TM-200LEDUVF TM-300LEDUVF TM-400LEDUVF
style Standing Standing       Standing
max product width 200mm 300mm 400mm
max product length 1000mm 1200mm 1200mm
UV Process shine area 200×1000mm 300×1200mm 400×1200mm
 conveyer speed: 0-10m/min 0-10m/min 0-10m/min
UV Lamp power 1.5KW ×1 PCS/ 1.5KW ×1PCS/ 1.5KW ×1PCS
conveyer belt size 200×1000mm 300×1200mm 400×1200mm
UV Machine  Dimension: 1100×220×750mm  1300×320×750mm  1300×420×750mm
Net Weight 130kg 150kg 180kg


Free Fitting :
one pcs LED UV lsmp  (1500W)

Price Terms --FOB or CFR
Payment Terms--- T/T or LC
Packing ----wooden crate
Lead Time ----7days after confirm Payment
SKU ----10 SETS
Standards Certificate ---CE
Cubic Meter---- 1.3
Gross Weight ---150KG
