| Model: | TYR-10 |
|---|---|
| Brand: | Top Oil Purifier |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | oil purifier , oil filtration , oil purification |
| Price: |
¥9800
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:02 Jul, 2019 |
Features

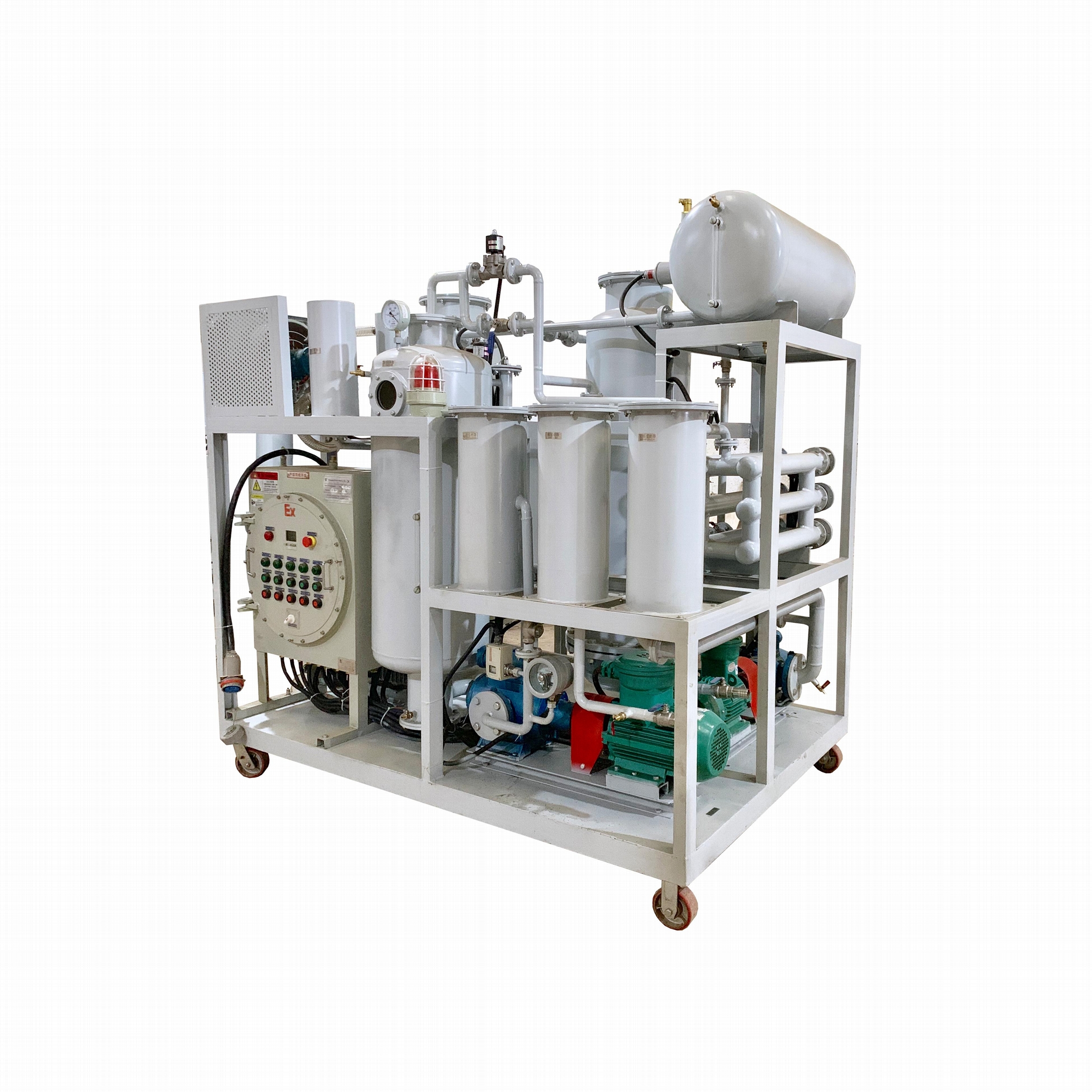

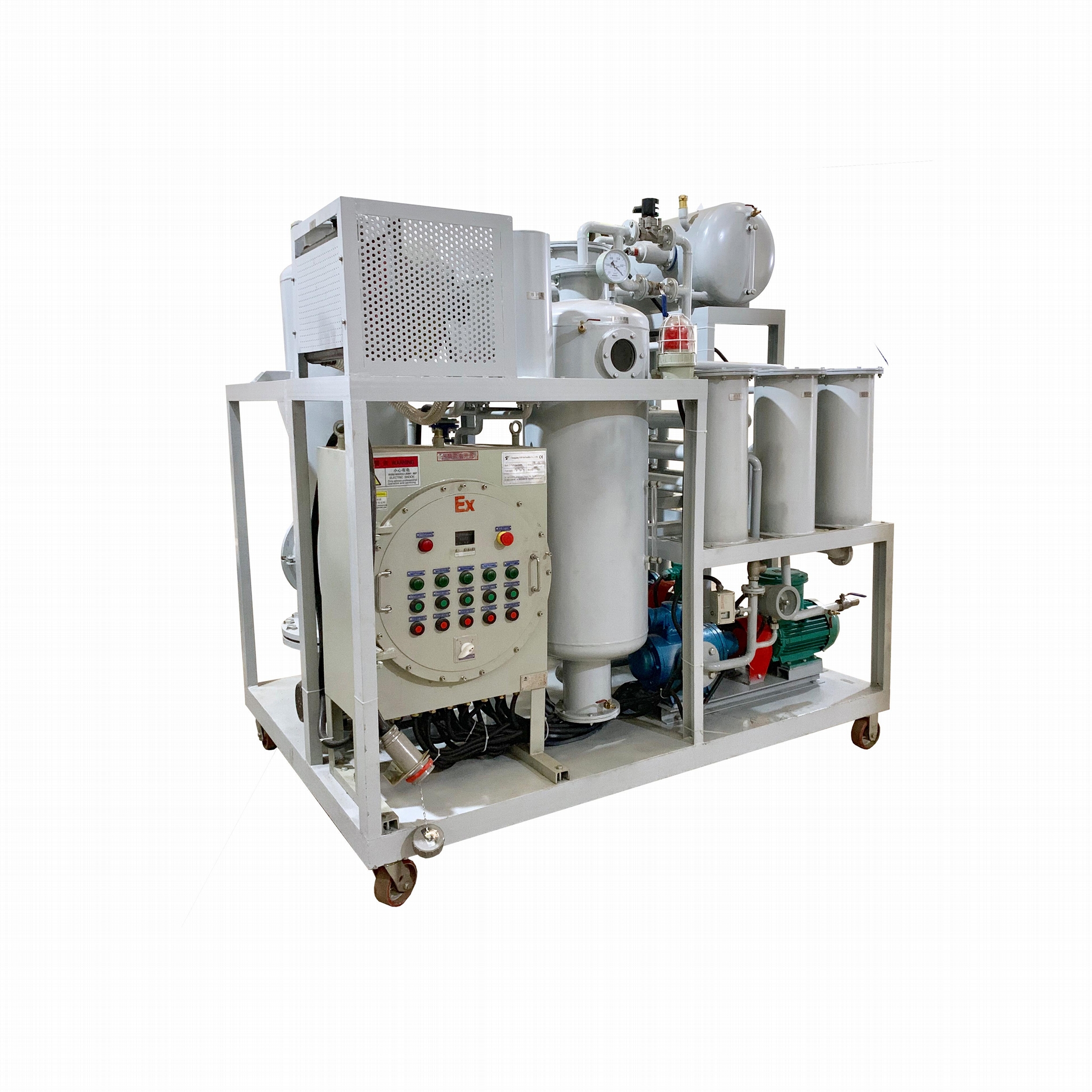

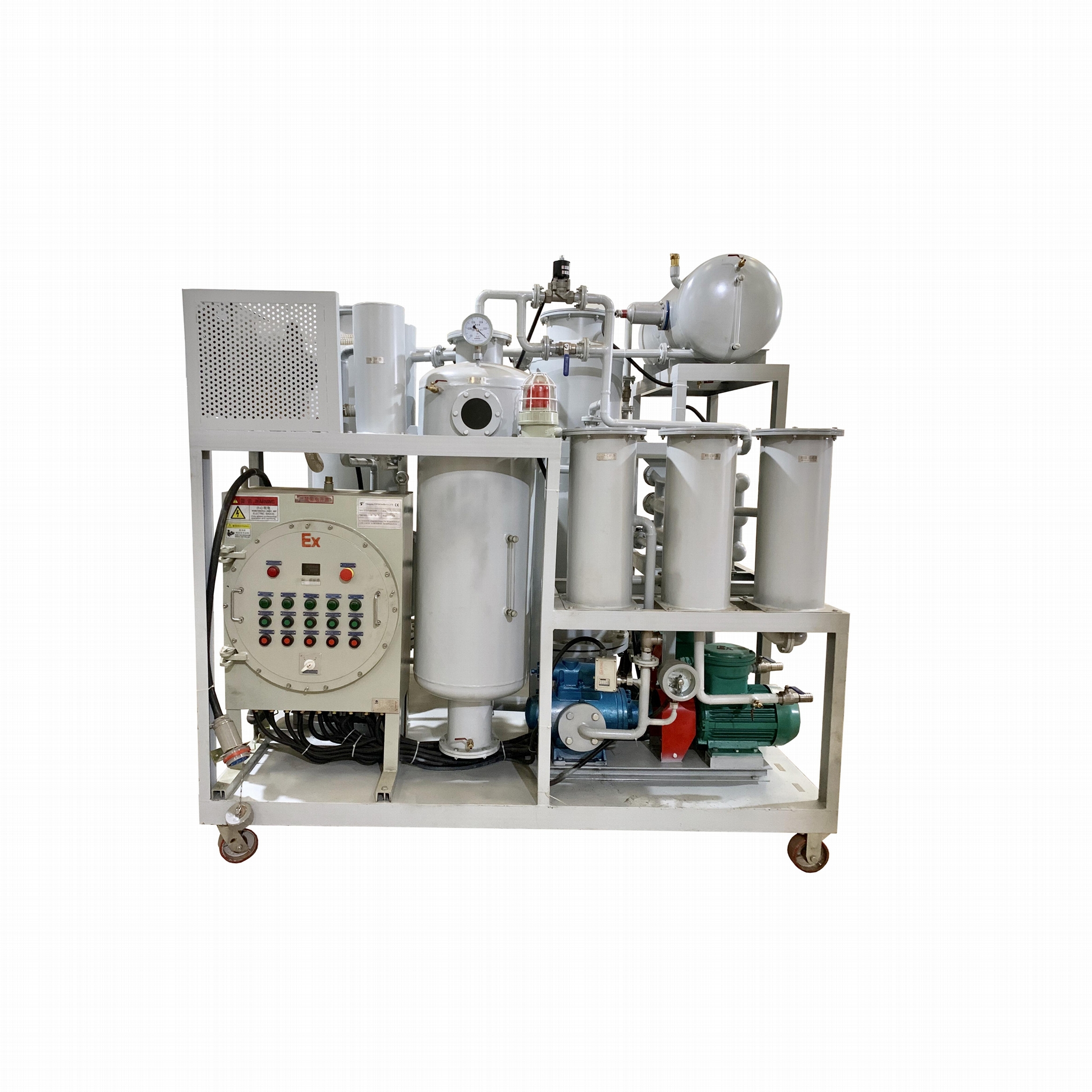

After many years of deep research, our company successfully developed TYR series of oil decoloration machine which can quickly remove out impurities and recover the oil color to original color. This machine uses our special additive which is pure nature and has high efficiency. It can treat hydraulic oil, machinery oil, coolant oil, cooking oil, coconut oil in oil field, mine, metallurgy, electricity, transportation, manufacturing, food industry. The treated oil in very clear and transparent. In the whole treatment process, it adopts purely physical treatment without breaking down the components of oil.
Technical Parameters
|
Parameter |
Unit |
TYR-10 |
TYR-20 |
TYR-30 |
TYR-50 |
TYR-100 |
|
Flow rate |
L/min |
10 |
20 |
30 |
50 |
100 |
|
Power Supply |
|
380v/50Hz/3Phase(Customizable) |
||||
|
Working noise |
dB(A) |
≤65 |
||||
|
Trouble-free working time |
H |
≥4000 |
||||
|
Continuous working time |
H |
≥150 |
||||
|
Inlet(outlet)caliber |
mm |
25 |
25 |
25 |
32 |
42 |
|
Weight |
kg |
400 |
500 |
600 |
800 |
1000 |
|
Size |
Length(mm) |
1400 |
1450 |
1500 |
1600 |
2000 |
|
Width(mm) |
1000 |
1050 |
1100 |
1150 |
1200 |
|
|
Height(mm) |
2000 |
2050 |
2100 |
2200 |
2600 |
|
|
Guarantee value |
Color |
|
≤2 |
|||
|
Impurity |
μm |
≤1（Customizable） |
||||
| Payment Terms: | L/C, T/T |
|---|---|
