| Model: | ZYD-I |
|---|---|
| Brand: | Top Oil Purifier |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | oil purifier , oil purification , oil filtration |
| Price: |
US $5000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:02 Jul, 2019 |

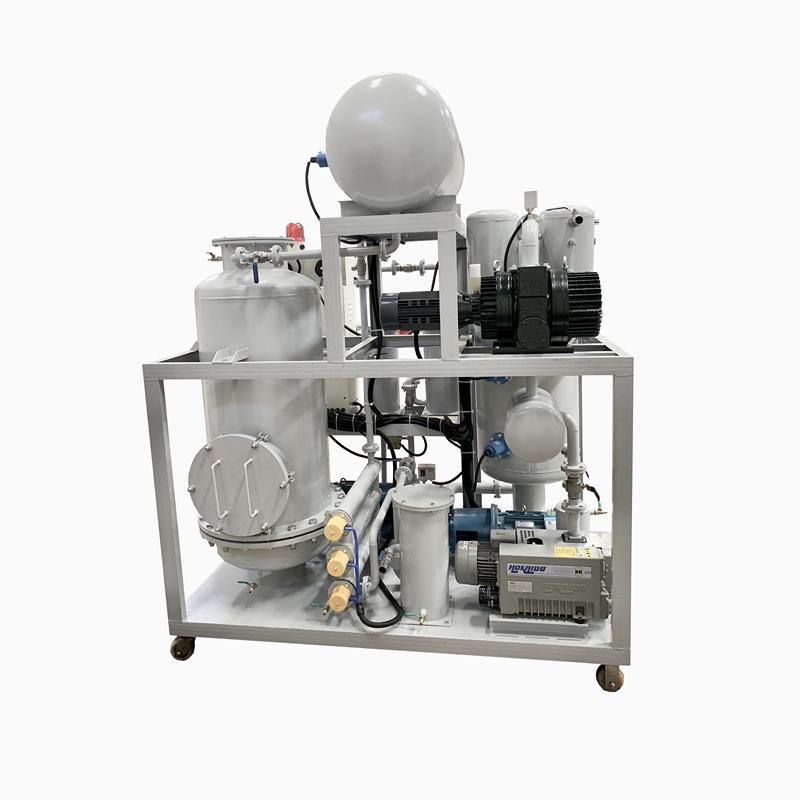

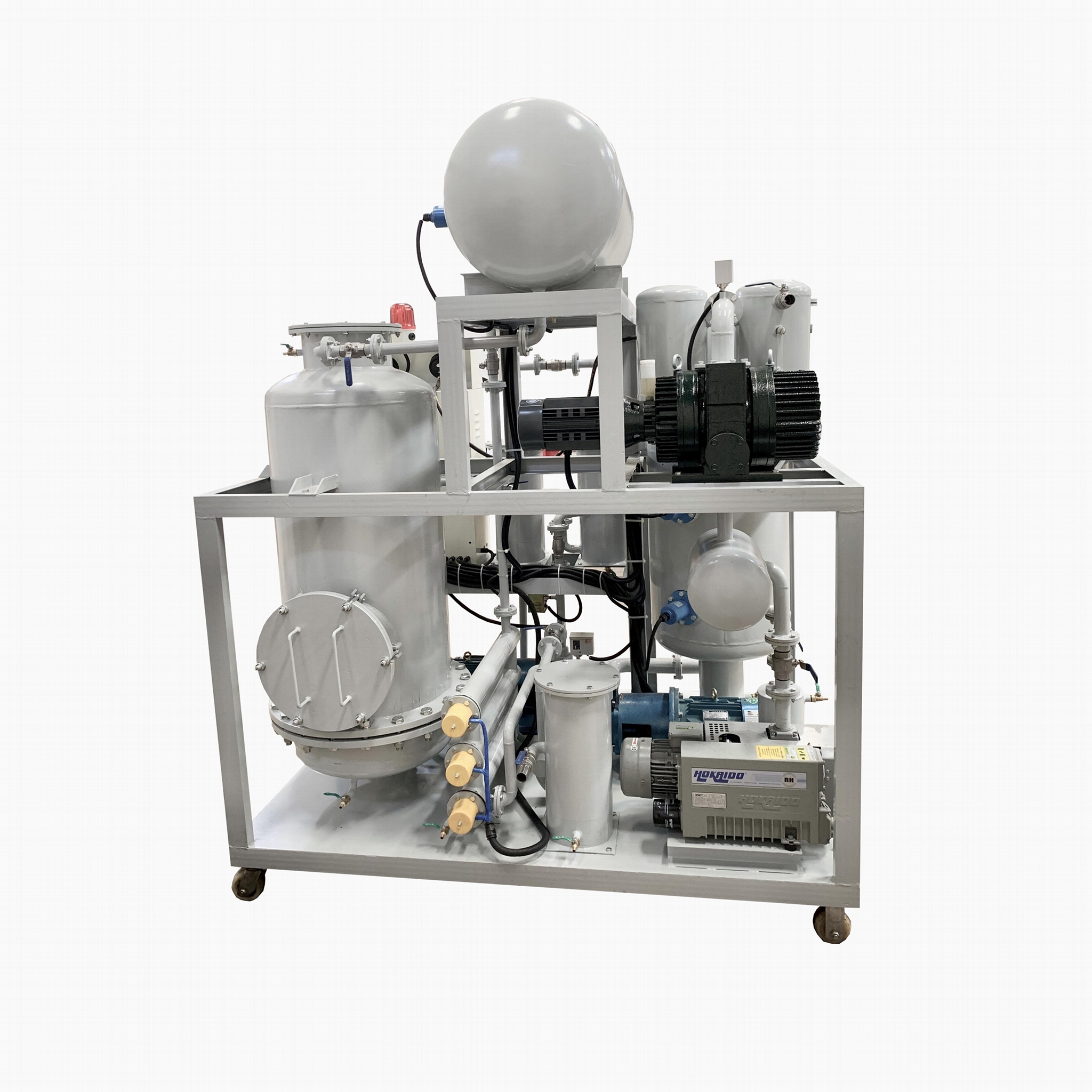

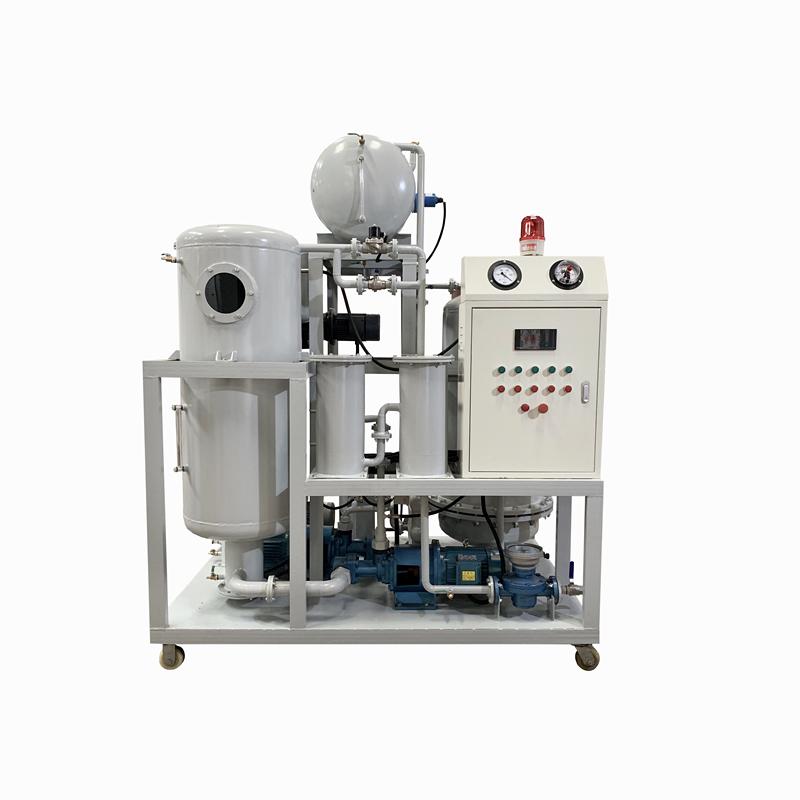

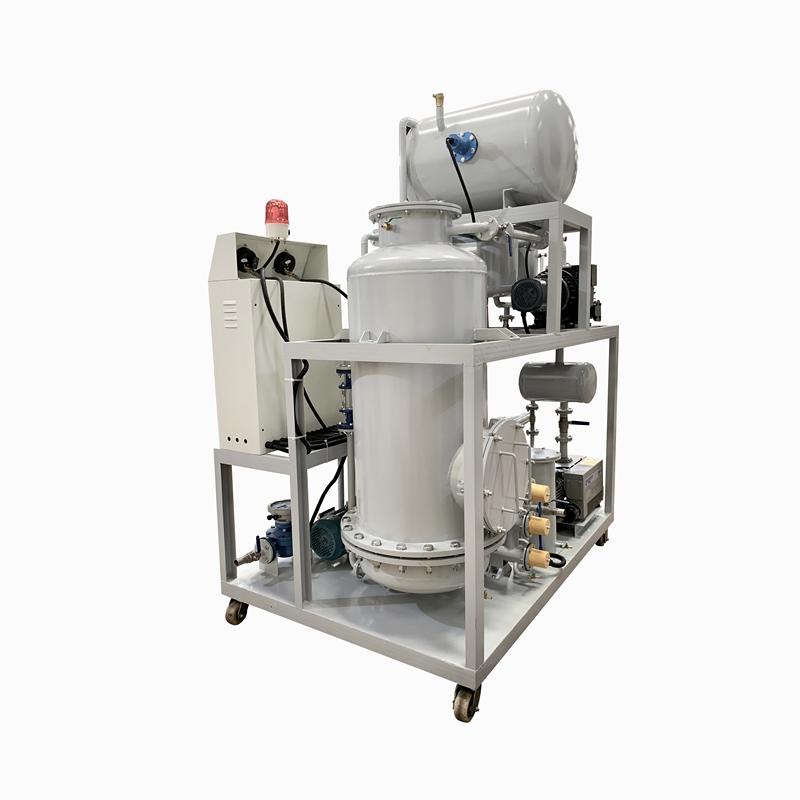

Series ZYD-I Transformer Oil Regeneration System
ZYD-I machine is specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. It not only provides regular oil purification including degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color. For special application, the system also can be mounted on a leak proof base or be installed and operated on a trailer.
Features:
1. For special application, the operation can be controlled by P.L.C (Programmable Logic Controller) (ZYD-I-A Series).
2. Unique vacuum dehydration, degassification and regeneration system, adopt stereo-evaporation technology. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
3. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
4. Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
5. Can be applied for vacuum oiling and drying power transmission equipment.
6. Special additives for depolarization can recover oil color of aged transformer oil to new.
Technical Parameter:
|
Parameter |
Unit |
ZYD-I-30 |
ZYD-I-50 |
ZYD-I-100 |
ZYD-I-150 |
ZYD-I-200 |
ZYD-I-250 |
ZYD-I-300 |
|
|
Flow rate |
L/h |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
|
|
Working vacuum |
MPa |
-0.08～-0.099 |
|||||||
|
Working pressure |
MPa |
≤0.3 |
|||||||
|
Temperature range |
℃ |
20 ～80 |
|||||||
|
Power |
|
3 ph 380V 50Hz (Or as needed) |
|||||||
|
Working noise |
dB(A) |
75 |
75 |
75 |
75 |
80 |
80 |
80 |
|
|
Heating power |
kW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
|
|
Total power |
kW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
|
Oil Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
|
Weight |
Kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
|
|
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
Item |
Unit |
After treatment |
|
Breakdown Voltage |
kV |
≥75 |
|
Moisture content |
PPM |
≤3 |
|
Gas content |
% |
≤0.1 |
|
Impurity size |
micron |
≤1 (no free carbon) |
|
IFT |
dynes/cm |
≥40 |
|
Acid value |
mg KOH/g |
≤0.03 |
|
Dielectric loss factors |
tgδ(90℃) |
≤0.001 |
| Payment Terms: | L/C, T/T |
|---|---|
