Bucket pail tub barrel keg Cylinder screen printer
Product Description
The principle of screen printing of cylinders with a diameter greater than 300mm is the same as that of a small-diameter product screen printing machine, but there are higher requirements for the stability of the screen printing machine. Since the stroke of the scraper is as long as one meter, the error of its movement is maintained. It is very critical. In general, the sliding shaft of the plastic barrel screen printing machine adopts linear guide rails. The plastic barrel and the clamp are heavy, and the structure of the worktable will also be strengthened to a certain extent.
|
S-380S Multi-function screen printing machine//Usage and characters
|
|
Guide
|
- 380mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
- Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
- With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
- Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
- Upper and lower part of table type surface screen printing machine, take place after the table automatically lifting the work piece;
- You can use the foot switch for automatic operation, the safety factor greatly increased;
- Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.
|
|
Application
|
Plastics soft tubes, Bottles, containers, Bucket, Cosmetic case, any Cylinder-object, Oval-object.
|
|
S-380S Multi-function screen printing Machine //Parameters
|
|
Technical parameters
|
- Gear line width:14mm, Length: 1200mm;
- Maximum printing thickness: 300 MM;
- Air consumption: 80 Liter/Min;
- The diameter of maximum printing workpiece: Φ380MM ；
- The arc of maximum printing workpiece: 1150MM；
- The maximum printing speed: 1100Pc/H；
- Weight: 336kg.
- Max Frame dimension: 750×1310mm;
- Maximum Plain printing area:500×1150mm;
- Max diameter of workpiece: Φ380MM
|
|
Works supply
|
- 110V-220V Power supply；
- 5-7Barcompress air；
|
|
Package parameters
|
- Package size: 1820X1250X1650mm;
- Gross weight： 375KG;
- CBM: 3.75T
|
|
H.S.CODE
|
8443198000
|
|
Certificate
|
CE
|
|
S-380S Multi-function screen printing Machine//Advantage
|
|
Function
|
- Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
- Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
- High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
- High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
- Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
- Microcomputer control program operations, set up a variety of modes;
- Four counts digital LED count, high degree of automation;
- Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
- Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
|
| Application: | The principle of screen printing of cylinders with a diameter greater than 300mm is the same as that of a small-diameter product screen printing machine, but there are higher requirements for the stability of the screen printing machine. Since the stroke of the scraper is as long as one meter, the error of its movement is maintained. It is very critical. In general, the sliding shaft of the plastic barrel screen printing machine adopts linear guide rails. The plastic barrel and the clamp are heavy, and the structure of the worktable will also be strengthened to a certain extent. |
| |

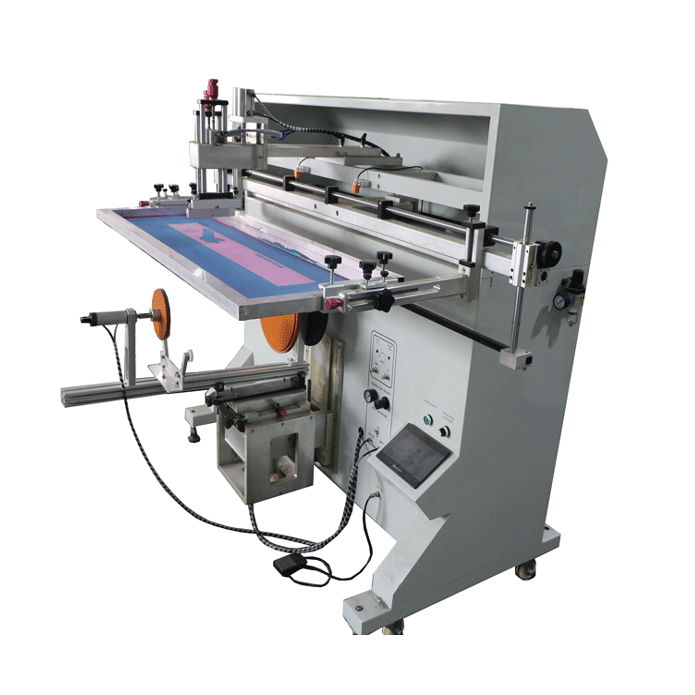

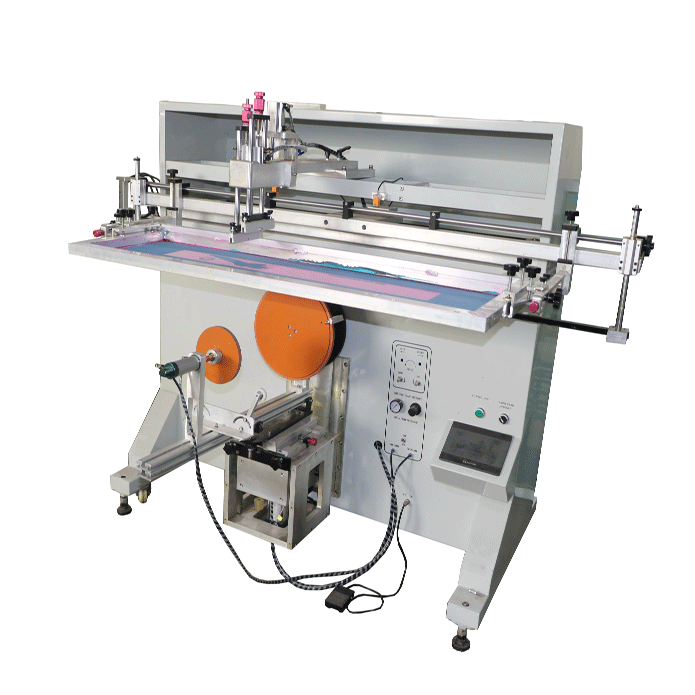

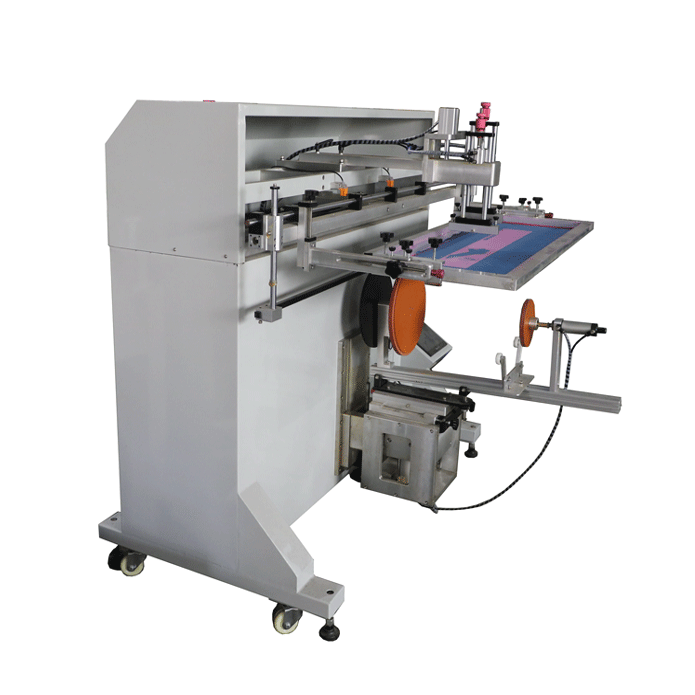

Product Image
