| Model: | LS110A |
|---|---|
| Brand: | Linshang |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus |
| Label: | Transmission Meter , Window Tint Meter , glass film tester |
| Price: |
US $307
/ Piece
|
| Min. Order: | 1 Piece |
| Live Chat: | Last Online:16 May, 2024 |

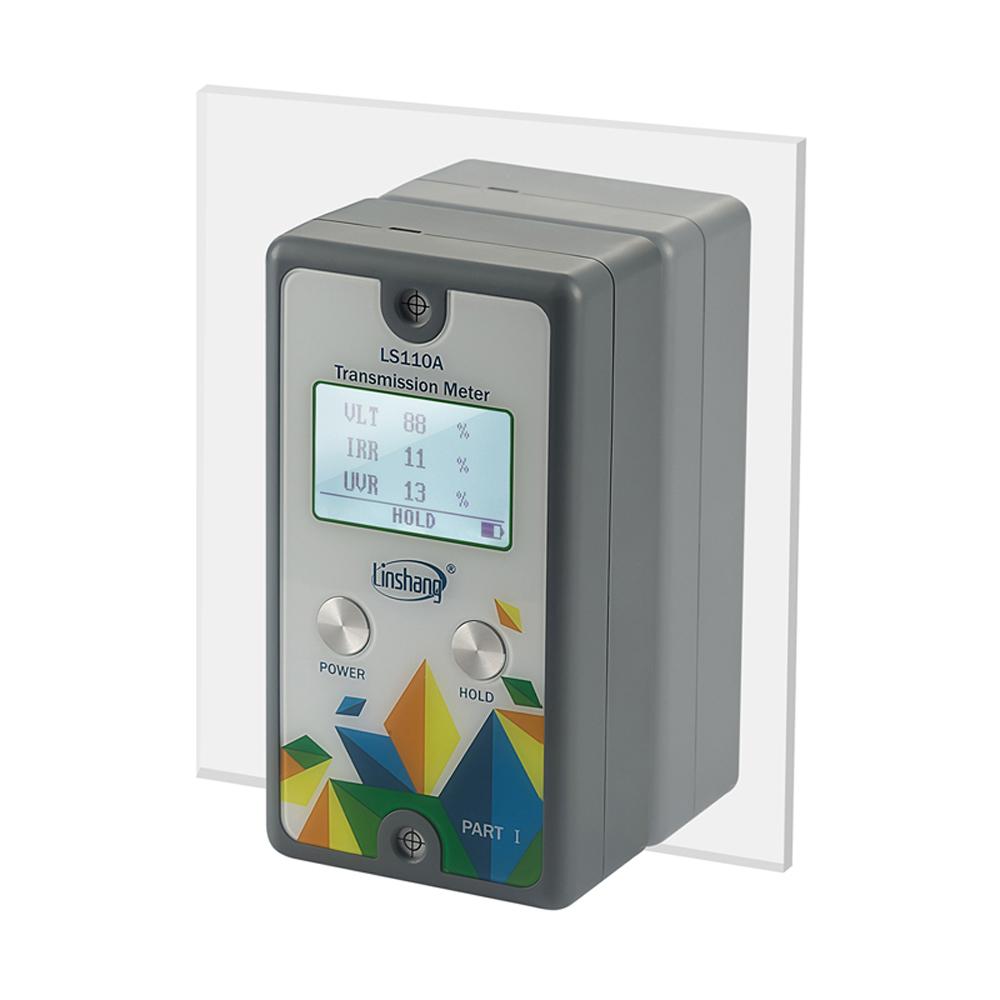

LS110A is able to simultaneously measure and display UV, IR rejection and VL transmission value.

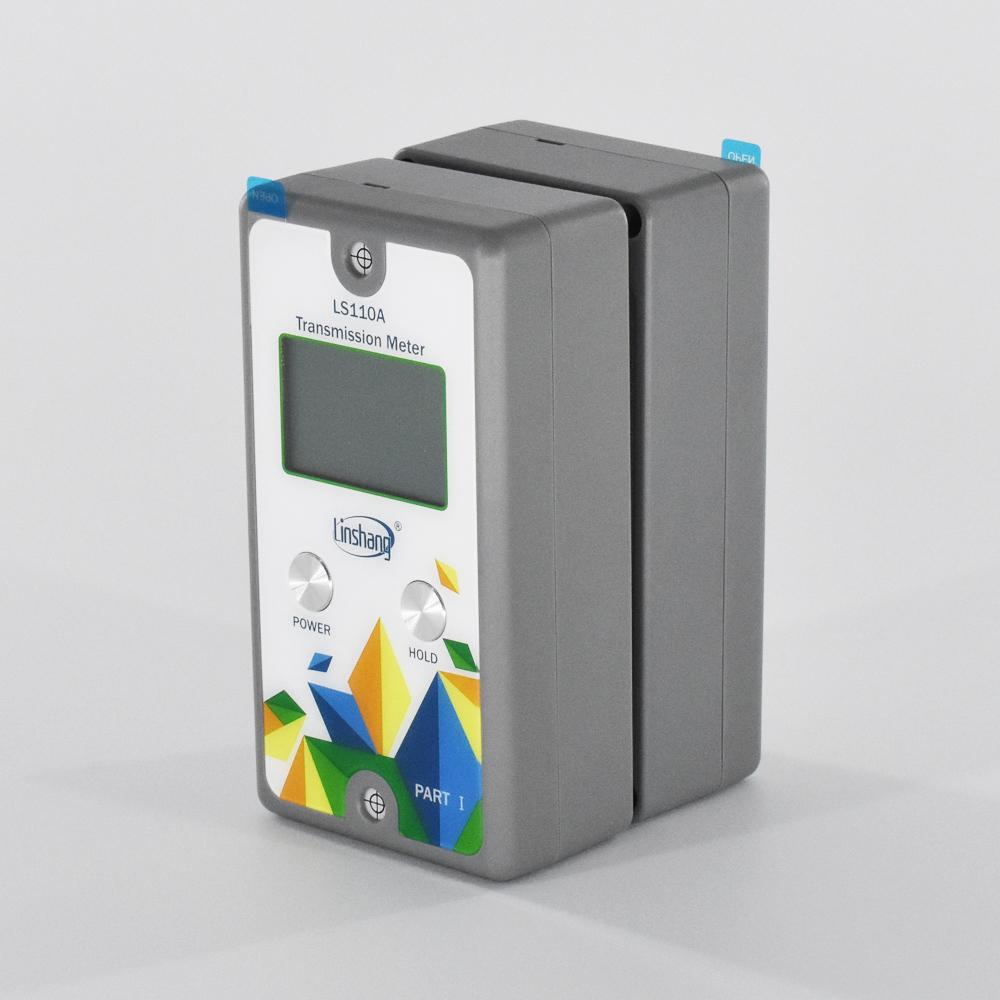

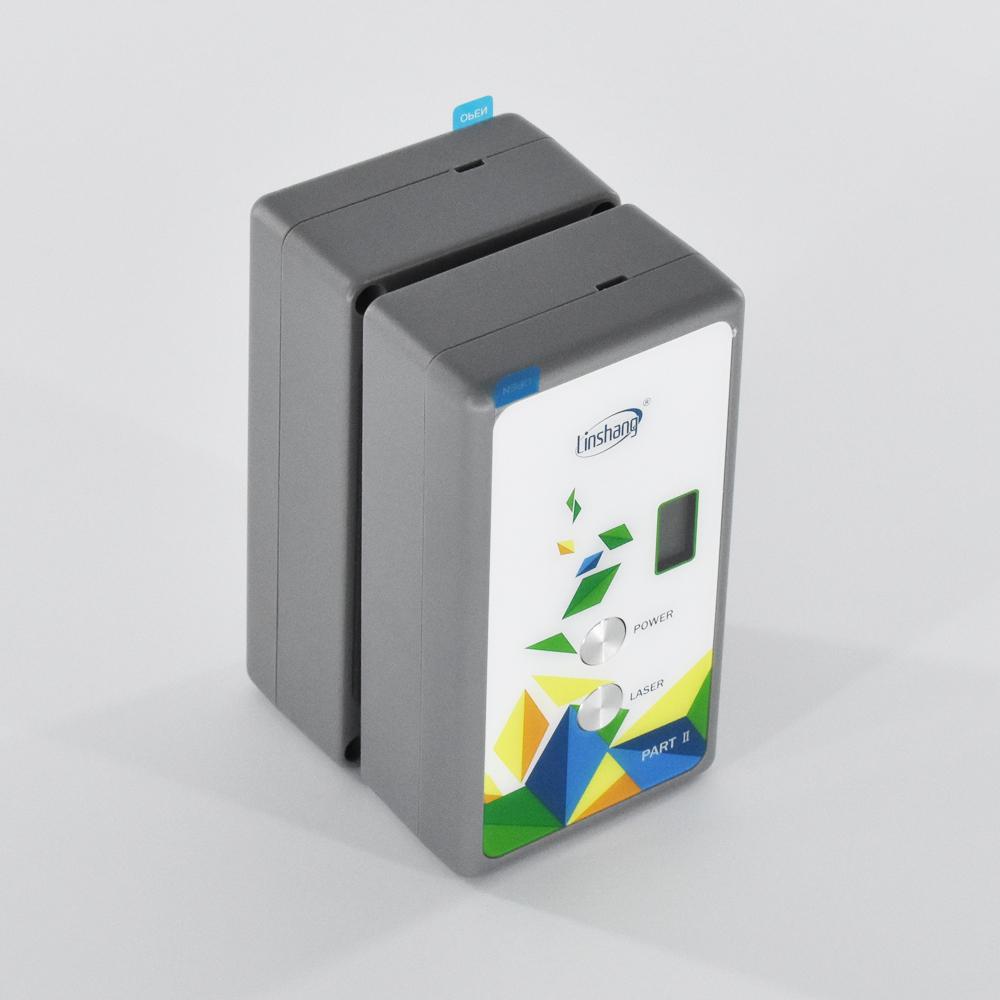

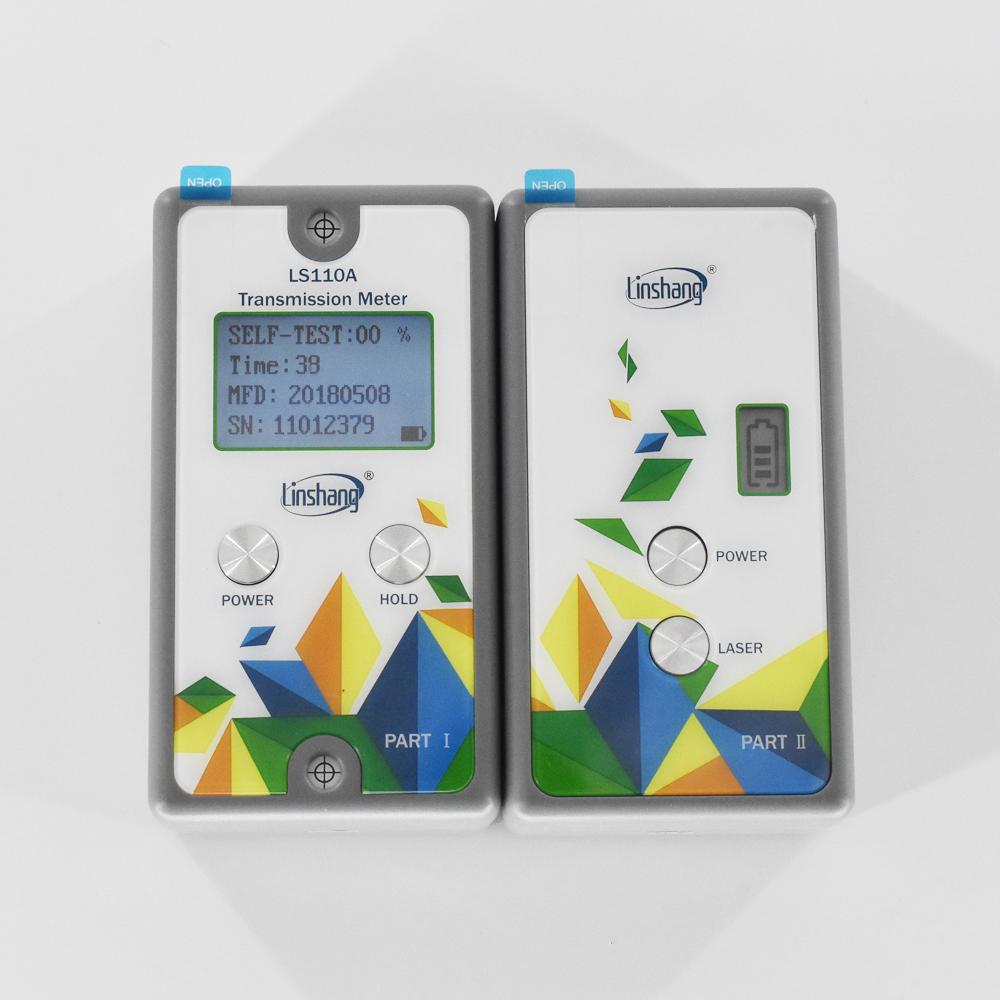

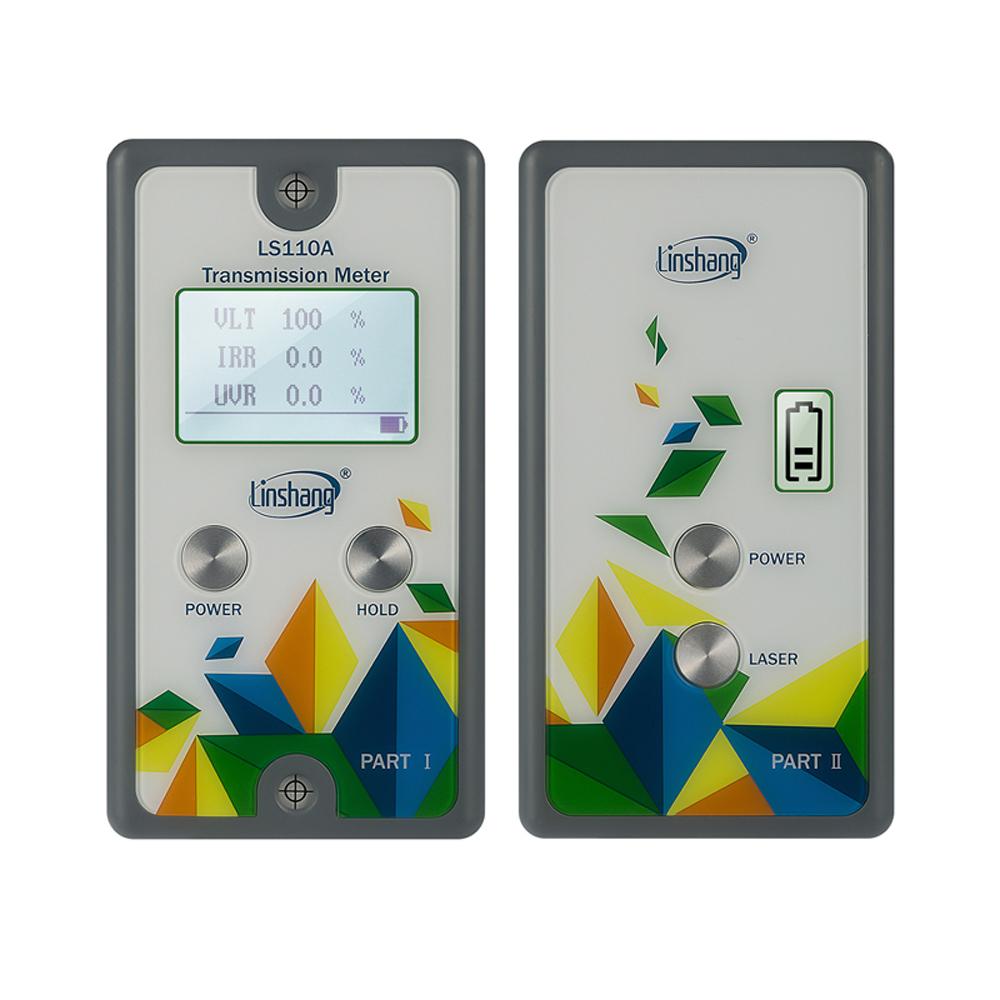

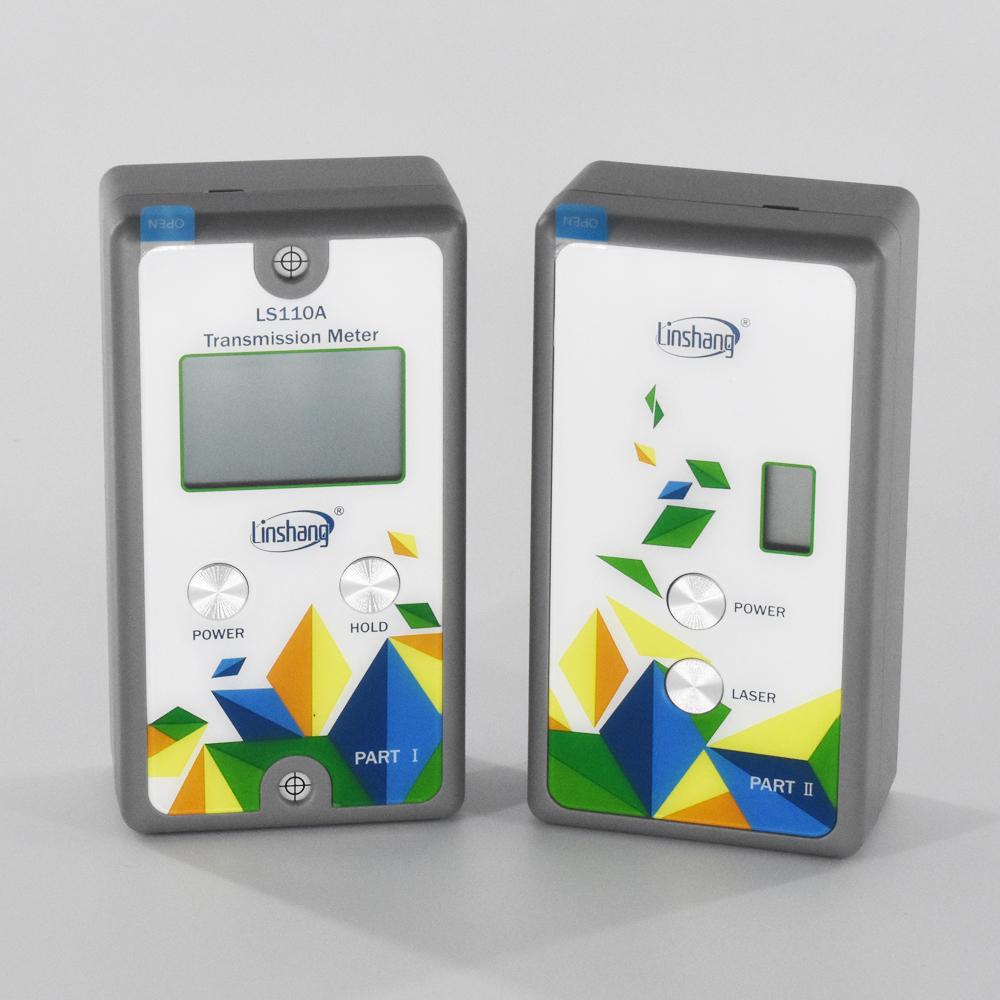

LS110A consist of two parts: main part for measuring and displaying functions and the auxiliary part for light source and laser light for alignment.
LS110A Parameters
1. Dimension: 130mm × 70mm ×84mm (L ×W × H)
2. Weight: 630g
3.Resolution: 0.1% for measured value<10% and 1% for other ranges
4.Accuracy: better than ±2% (Colorless and transparent material)
5. Test sample size: > 40mm × 40mm
6. VL Peak wavelength: 550nm
7. UV Peak wavelength: 365nm
8. IR Peak wavelength : 950nm
9. Power supply: built-in lithium rechargeable battery
Features
1. Two-parts dual mode of the main and auxiliary part facilitates the transmission measurement of the automobile front windshield glass and building glass.
2. UV rejection, IR rejection, Light Transmittance Meter, Three function in ONE device.
3. The built-in lithium rechargeable battery is easy for use without replacing the battery.
4. The laser alignment function guarantees the accurate alignment of the main part with the auxiliary part in the process of measurement and ensures accurate measurement.
