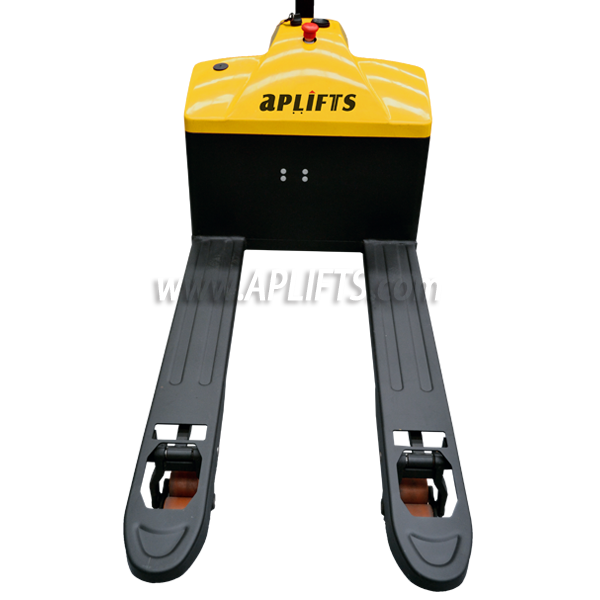

Electric Pallet Truck

Model:EPA15
Brand:APLIFTS
Origin:Made In China
Category:Transportation / Logistics / Forklifts, Pallet Trucks
Label:Battery Pallet Truck , Pallet Truck , Electric Pallet Jack
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Zhejiang Aplifts Machinery Co., Ltd.

Biz MemberZhe Jiang - China
Live Chat:
Last Online:20 Nov, 2018

Product Description

  • High efficiency with low price.

  • Strong power, easy work.

  • High reliadbility in quality, with 18 months warranty.

  • Mini body, great passing, small weight and energy saving.





Model     EPA15
Load capacity Q(kg)   1500
Load center c   600
Min. fork height h13(mm)   85
Wheel size, front mm   Φ210×70
Wheel size, rear mm   Φ84×101/Φ84×70
Wheel numbers(×=drive wheel)     1×+2/4
Max. fork height h3   205
Overall length l1(mm)   1648/1698
Overall width b1(mm)   680
Fork dimensions s/e/l(mm) 53/160/1150
Width over forks b5(mm)   550/685
Turning radius Wa(mm)   1414
Travel speed, laden/unladen Km/h   3.5/4
Fork length l(mm)   1150/1220
Max.gradeability,laden/unladen %    3/10
Service brake     Electromagnetic
Drive motor power Kw   0.65
Lifting motor power Kw   0.8
Battery voltage/rated cacacity V/Ah   24/75
Battery weight Kg   24×2
Battery dimensions l/w/h mm   260/70/230
Service weight(with batery) kg   210


Payment Terms:TT/LC
