Product Description
- Adjustable forks for various load sizes.
- Oil leaking-proof pump, 2 years warranty.
- Light and easy steering with foot brake.
- Heavy duty C-shapped steel construction for strength and rigidity.
- Effortless and quick lifting for using foot pedal without loads.
- Comfortable handle to ensure easy pulling with long tiller.
- Rebust steel profile construction.
| Model |
|
|
HSA10 |
|
HSA15 |
|
HSA20 |
| Capacity |
Q(kg) |
|
1000 |
|
1500 |
|
2000 |
| Load center |
C(mm) |
|
500 |
|
400 |
|
400 |
| Fork height, lowered |
h13(mm) |
90 |
|
90 |
|
90 |
| Mast height, lowered |
h1(mm) |
|
2080/1830/2080 |
2080/1830/2080 |
2080/1830/2080 |
| Max lift height |
h3(mm) |
|
1600/2500/3000 |
1600/2500/3000 |
1600/2500/3000 |
| Fork length |
l(mm) |
|
900/1070 |
900/1070 |
900/1070 |
| Overall length |
l1(mm) |
|
1280 |
|
1280 |
|
1280 |
| Steering wheel |
mm |
|
Φ180×50 |
Φ180×50 |
Φ180×50 |
| Front wheel |
mm |
|
Φ80×70 |
|
Φ80×70 |
|
Φ80×70 |

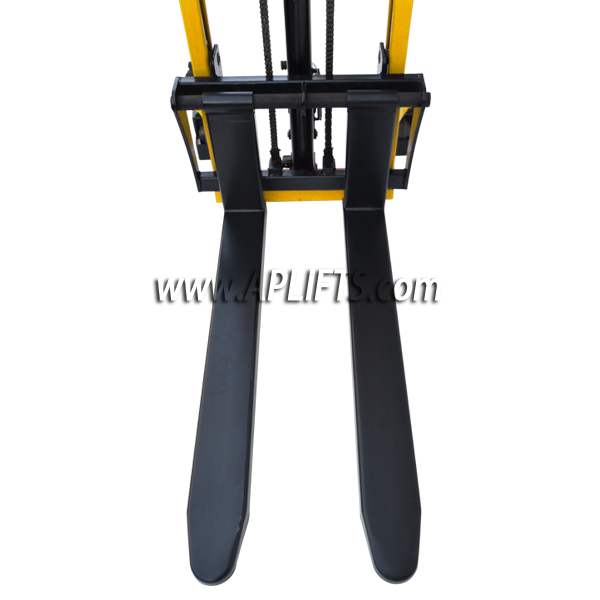

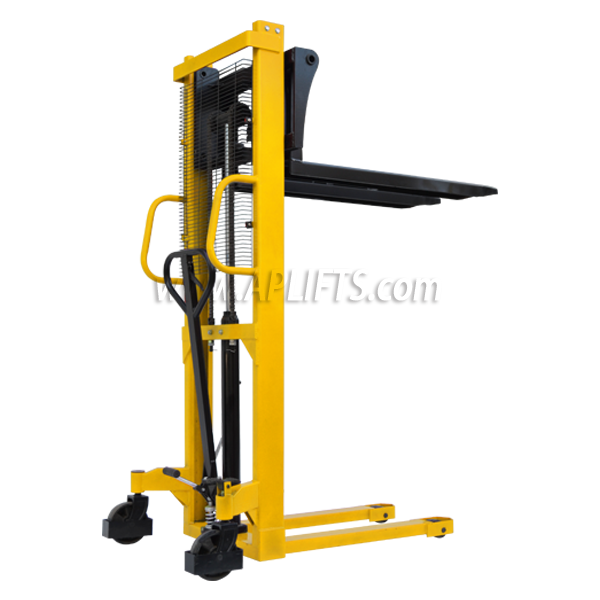

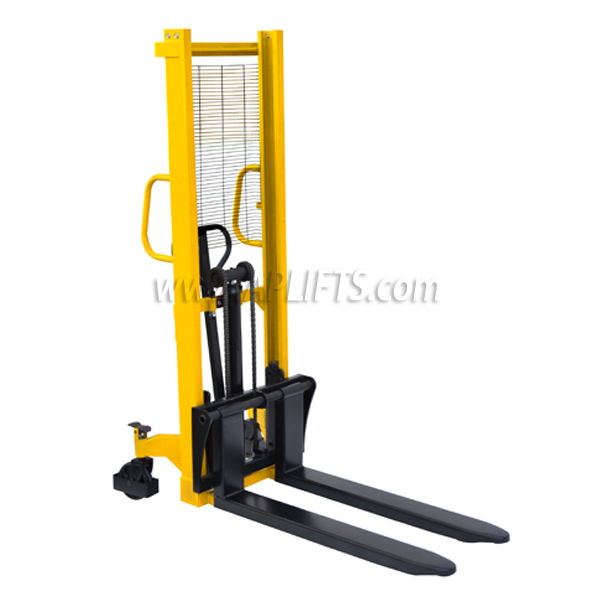

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
