Serial 3G Gateway IP Modem

Model:-
Brand:E-lins
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Other Communication Equipment
Label:3g ip modem , serial 3g modem , serial cellular gate
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

E-Lins Technology Co.,Ltd

Free MemberGuang Dong - China
Live Chat:Last Online:11 Jul, 2018

Product Description

Industrial wireless 3G ip modem, suitable for 3G wireless network and compatible to 2G. Built-in watchdog, wireless radio and sim card slot. Detachable antenna. with 3G/2G fallback capabilities for ensured access to the internet anywhere, providing RS232/RS485/USB port option, and optimized EMC design, high stable and reliable.



1. Main

The M400 seriesSerial 3G Gateway IP Modem is a complete wireless data modem providing global cellular network connectivity; where cellular signal available, with 3G/2G fallback capabilities for ensured access to the internet anywhere, providing RS232/RS485/USB port option.

The M400 is an easy to install productivity tool designed to provide maximum accessibility to the mobile professional allowing quick access to the internet for real-time business transactions, email, web browsing and more.
By connect to cellular mobile network; an Internet connection can be accessed and shared virtually anywhere within a wireless broadband network.



E-Lins’ mobile data products are widely used in industrial fields, such as power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas..



2. Hot Spot

Built-in 2G/3G/4G industrial cellular module, insert SIM/UIM card to work directly;

Built-in sim/uim card slot;

Broadband M2M communications

SIM failover/standby APN

3G/4G failover for fixed line broadband connections

Rapid service deployment applications

Support AT command

RS232/RS485/USB/RJ45 port option

Voice Supported

Built-in TCP/IP Stack

GPS (optional)



3. Serial 3G Gateway IP Modem M2M Application

Remote Data Monitor and Control

CCTV, security surveillance

Water, gas and oil flow metering and schedule

AMR (automatic meter reading)

Power station monitoring and control

Remote POS (point of sale) terminals, ATM,

Traffic signals monitor and control, Traffic info guidance

Oil field, weather forecast, environmental protection, street lamp monitoring and control

Early Warning of Mountain Torrent

Fleet management

Power distribution network supervision

Central heating system supervision

Weather station data transmission

Hydrologic data acquisition

Vending machine

Telemetry, SCADA

Vehicle logistics and diagnostics controlling

Parking meter and Taxi Monitor

Telecom equipment supervision (Mobile base station, microwave or optical relay station)



4. M400 Series Serial 3G Gateway IP Modem spec



Mobile Networks:
GSM EDGE/GPRS;

3G UMTS WCDMA (HSDPA/HSUPA/HSPA/HSPA+);



Wireless Radio Band:

3G UMTS/HSPA/HSUPA/HSPA/HSPA+ (WCDMA/FDD) 2100Mhz or 850/1900/2100MHz or 850/900/1900/2100Mhz;

2G GSM 900/1800Mhz dual band or 850/900/1800/1900Mhz quad-band;



Wireless Radio Bandwidth:



HSPA+: Downlink 21/42Mbps, Uplink 5.76Mbps;

HSPA: Downlink 14.4Mbps, Uplink 5.76Mbps;

HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;

HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;

WCDMA/UMTS: Downlink/Uplink 384 kbps;



EDGE: Downlink 236,8 kbps, Uplink 118 kbps;

GPRS: Downlink 85.6 kbps, Uplink 42.8 kbps;



Main:

GPS (Optional): Yes;

DTU (Optional):

With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option).

USB: USB 2.0 female, Mini USB

Antenna

2 antenna for Cellular and GPS (detachable, 50Ω SMA female interface)

Led

Power indicator*1 Data indicator*1

Console: 1 console port

Serial port: RS232 or RS485 built-in terminal block interface

IO Port: 2

Configuration Interface: Web/Telnet/CLI, support remote management

At command: support

UIM/SIM Card Slot: Support 1.8V/3V UIM/SIM

DC Jack:

Two types of input jack for DC

2.5mm DC jack * 1

Terminal Block * 1



Power supply:

DC5V-50V, typical DC 9V1A or 12V1A, 12v CAR USE; DC5V~40V is the default, DC5V~50V is the option;



Power consumption

Idle: 30mA@9VDC

Max:700mA@9VDC

Average:85mA@9VDC



OS

Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser;



Physical

Operating Temperature:

Work temperature: -30°C to 75°C

Storage temperature: -40°C to 85°C

Humidity: 95% Maximum (Non-condensing)

Dimensions:

With case: 83mm x 53mm x 25mm

Packing: 260mm x 190mm x 65mm

Weight:

100g (not including the antenna)
370g (including all accessories, without package)


Product Image

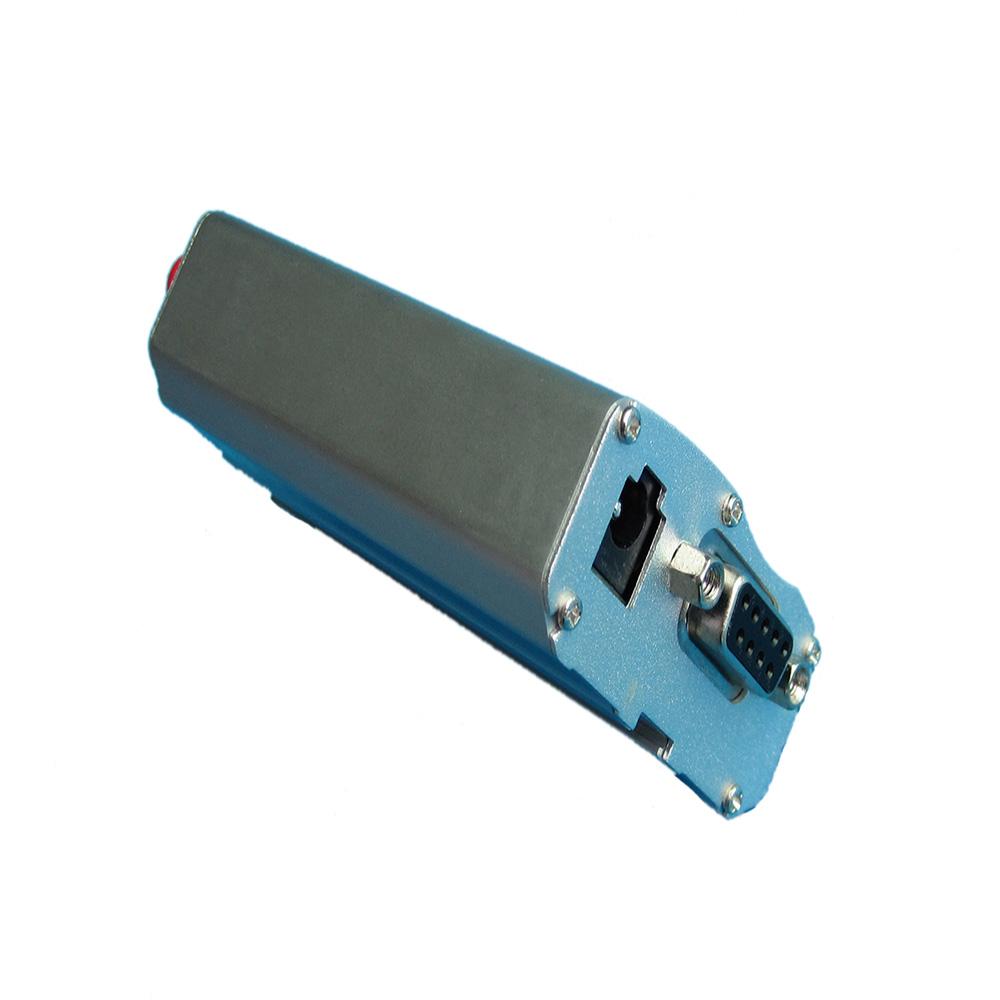

Serial 3G Gateway IP Modem 1
Img 1
Serial 3G Gateway IP Modem 2
Img 2
Serial 3G Gateway IP Modem 3
Img 3
Serial 3G Gateway IP Modem 4
Img 4
Serial 3G Gateway IP Modem 5
Img 5
