Industrial wireless 4g modem, suitable for 4G LTE wireless network and compatible to 3G/2G. Built-in watchdog, wireless radio and sim card slot. Detachable antenna. Optimized EMC design, high stable and reliable.



1. Main

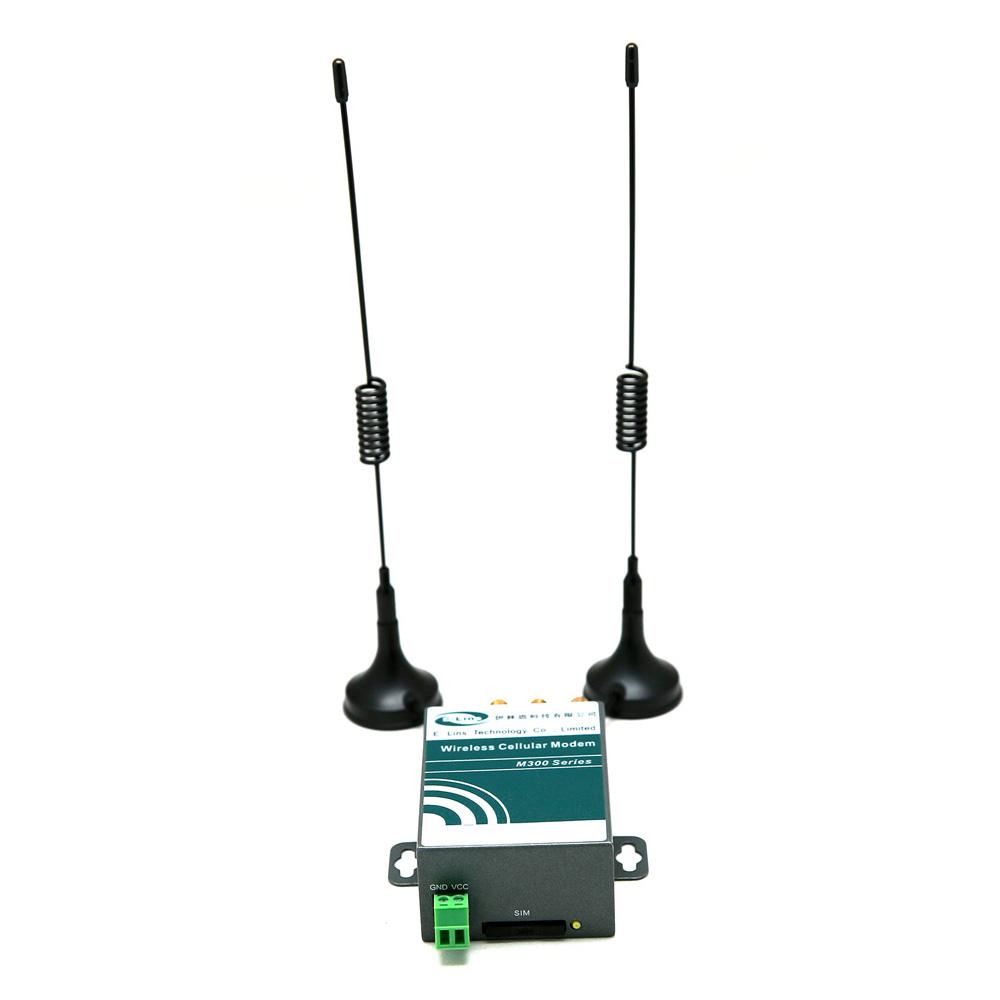

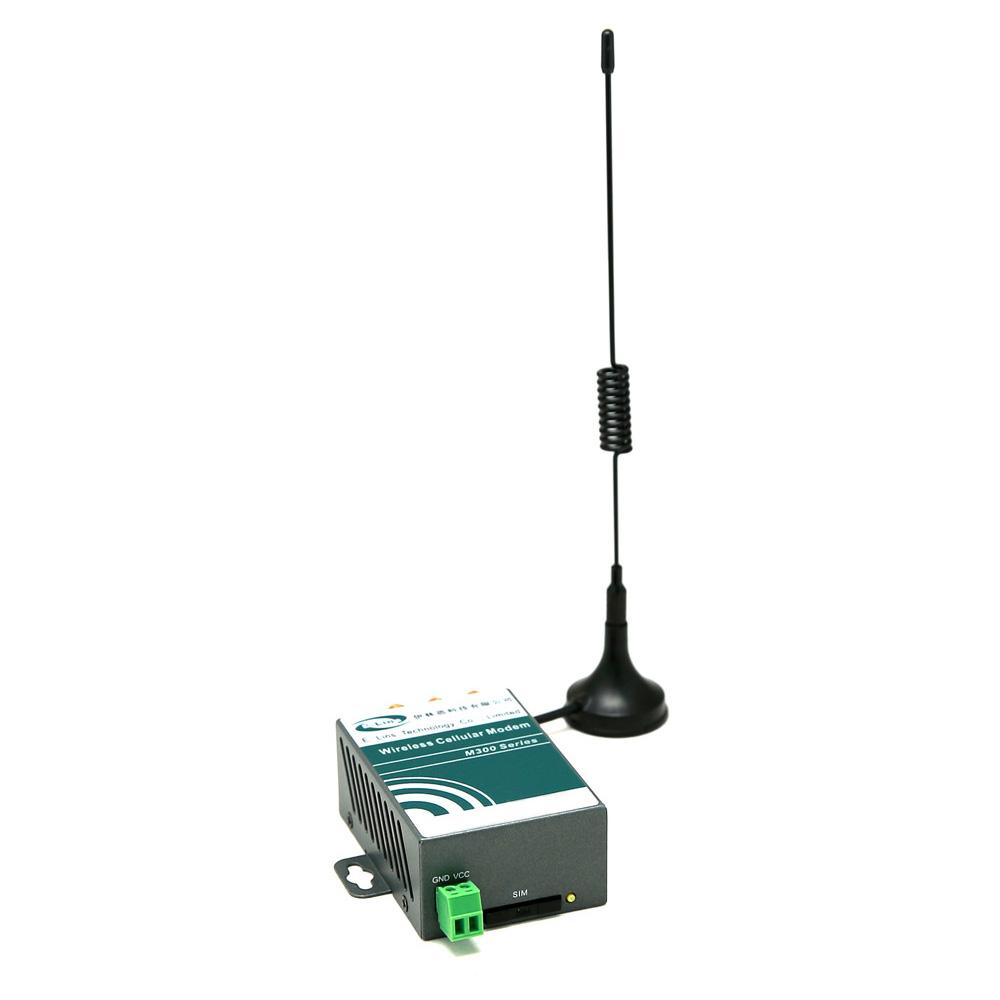

The M300 series Cellular Modem is a complete wireless USB data modem providing global cellular network connectivity, where cellular signal available, with 4G/3G/2G fallback capabilities for ensured access to the internet anywhere.

The M300 is an easy to install productivity tool designed to provide maximum accessibility to the mobile professional allowing quick access to the internet for real-time business transactions, email, web browsing and more.



E-Lins’ mobile data products are widely used in industrial fields, such as power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.



2. Hot Spot

Built-in 2G/3G/4G industrial cellular module, insert SIM/UIM card to work directly;

Built-in sim card slot;

Broadband M2M communications

SIM failover/standby APN

3G/4G failover for fixed line broadband connections

Rapid service deployment applications

Support At command

USB port

MIMO support (option)

GPS support (option)



3. Wireless M2M Application

Remote Data Monitor and Control

CCTV, security surveillance

Water, gas and oil flow metering and schedule

AMR (automatic meter reading)

Power station monitoring and control

Remote POS (point of sale) terminals, ATM,

Traffic signals monitor and control, Traffic info guidance

Oil field, weather forecast, environmental protection, street lamp monitoring and control

Early Warning of Mountain Torrent

Fleet management

Power distribution network supervision

Central heating system supervision

Weather station data transmission

Hydrologic data acquisition

Vending machine

Telemetry, SCADA

Vehicle logistics and diagnostics controlling

Parking meter and Taxi Monitor

Telecom equipment supervision (Mobile base station, microwave or optical relay station)



4. M300 Series Wireless Broadband Modem Spec



Mobile Networks:
GSM EDGE/GPRS;

CDMA1x;

3GUMTS WCDMA (HSDPA/HSUPA/HSPA/HSPA+);

3GTD-SCDMA

3GCDMA EVDO Rev 0 and Rev A;

4GLTE;



Wireless Radio Band:

3GUMTS/HSPA/HSUPA/HSPA/HSPA+ (WCDMA/FDD) 2100Mhz or 850/1900/2100MHz or 850/900/1900/2100Mhz;

2GGSM 900/1800Mhz dual band or 850/900/1800/1900Mhz quad-band;

CDMA1x/EVDO: 800/1900Mhz or 450Mhz option;

3GTD-SCDMA 2010~2025MHz/1880~1920MHz;

4GFDD LTE:

Band 1--2100Mhz

Band 2--1900Mhz

Band 3--1800Mhz

Band 4—AWS(1700/2100Mhz)

Band 5--850Mhz

Band 7--2600MHz

Band 8--900Mhz

Band 12--700Mhz

Band 13--700(B13)Mhz

Band 17--700(B17)/AWS

Band 19—800Mhz

Band 20--DD800Mhz

Band 21

Band 25 –1900Mhz G Block

Band 31– 450Mhz

Other FDD band(some bands are not listed)…



4GTDD LTE (TD-LTE):

Band 41 –2500/2600Mhz

Band 40 -- 2300Mhz

Band 39 – 1900Mhz

Band 38 -- 2600Mhz

Other TDD band(some bands are not listed)…

Wireless Radio Bandwidth:

4GLTE: Max. 100/150/300Mbps downlink, 50Mbps uplink



HSPA+: Downlink 21/42Mbps, Uplink 5.76Mbps;

HSPA: Downlink 14.4Mbps, Uplink 5.76Mbps;

HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;

HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;

WCDMA/UMTS: Downlink/Uplink 384 kbps;



EDGE: Downlink 236,8 kbps, Uplink 118 kbps;

GPRS: Downlink 85.6 kbps, Uplink 42.8 kbps;



CDMA1x: Downlink/Uplink 153.6kbps;

CDMA EVDO:
Rev B: 14.7Mbps downlink, 5.4Mbps uplink
Rev A: 3.1Mbps downlink, 2.4Mbps uplink

Rev O: 2.4Mbps downlink, 153.6kbps uplink



3GTD-SCDMA: 2.8Mbps



Antenna

50Ω SMA female interface *3, external detachable;

Antenna for Main Cell, MIMO Cell, GPS



Led

System LED*1

Data LED*1



UIM/SIM Card Slot
Support 1.8V/3V UIM/SIM



USBPort: Mini USB2.0



At Command

Support at command. Packed with GUI software



Power supply:

DC5V-40V , option is DC5V-50V, typical DC9V1A or 12V1A or 12V2A



Power consumption

Peak: 700mA@+9VDC

Average: 85mA@+9VDC

Idle: 30mA@+9VDC



OS

Windows;

Mac OS;

Linux;

Other OS with USB port;



Physical

Operating Temperature:

Work temperature: -30°C to 70°C option for -30°C to 80°C

Storage temperature: -40°C to 85°C

Humidity: 95% Maximum (Non-condensing)

Dimensions:

Item (L x B x H): 87mm*50mm*23mm

Packaging (L x B x H): 102*70*23mm

PCBA: 84mm*48mm*20mm

Weight: 150g(not including accessories and package)
