| Model: | OTS-JY5059 |
|---|---|
| Brand: | OTS |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Laboratory Instrument |
| Label: | Ink Tester , Friction Tester , Friction test |
| Price: |
US $985
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:16 Apr, 2018 |
OTS-JY5059

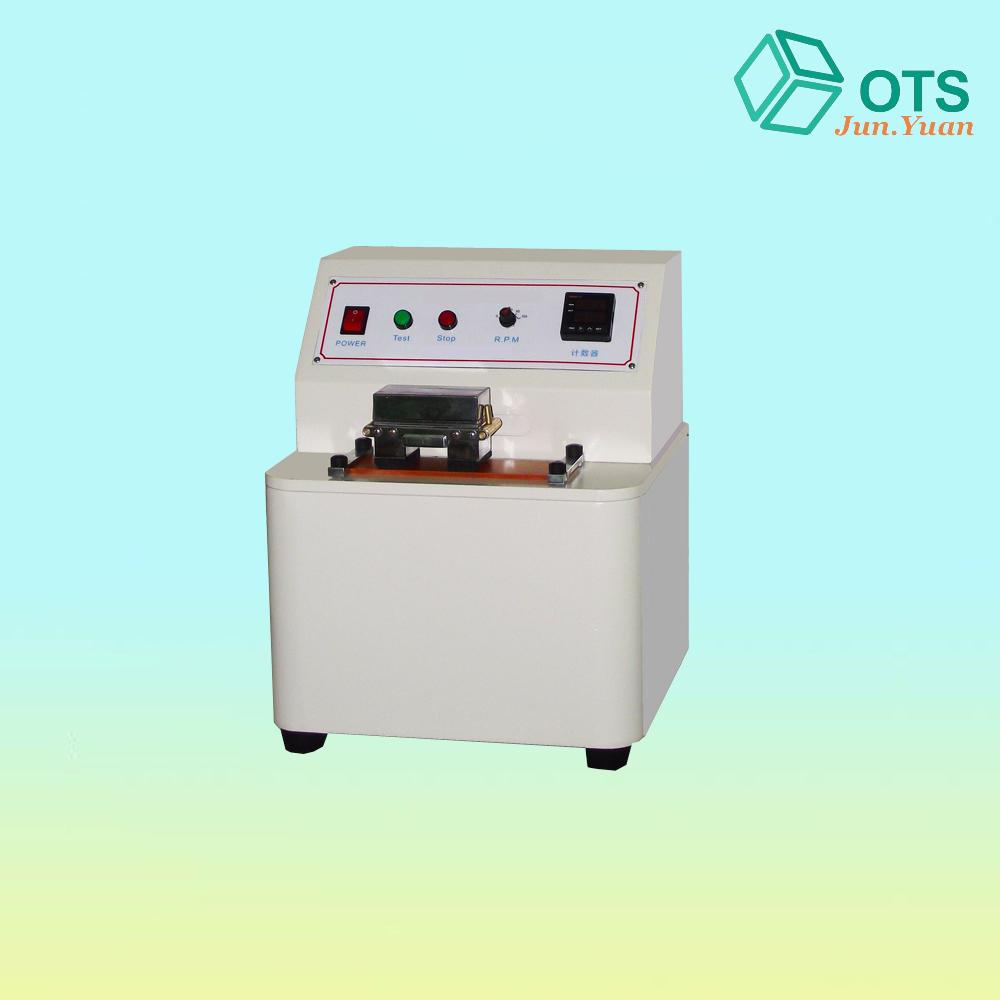

Ink friction tester
Brief Introduction
Ink discoloration testing machine is mainly used for testing the abrasion performance and discolored degree of printed matter, printing ink and printing box.
Main Features
1. Specific power memory function, provides users with a secure operating environment
2. The embedded standard friction table to ensure a uniform area of friction, and the friction process is quiet
3. User can set the number of friction, easy to accurately test
4. The number of swings automatic counting
Test Standard
GB/T 7706 GB/T 17497.3 GB/T7706, GB7707, JIS K5701, ASTM D5264
Specification:
| Measuring range | (1 ~ 9999) times automatically shut down |
| Friction load (double weight) | 10N, 20N |
| Wipe ink speed | (21,43,85,106) r / min |
| Friction travel | 60mm |
| Friction area | 50 * 100mm |
| time setting | Smart timer |
| working environment | Temperature (20 ± 10 ℃), humidity <85% |
| Dimensions | 318 * 276 * 530mm |
| weight | 25kg |
| Payment Terms: | TT |
|---|---|
