| Model: | JY-1050 |
|---|---|
| Brand: | OTS |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Laboratory Instrument |
| Label: | package Falling Test , package fall Tester , Falling Tester |
| Price: |
US $2500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:16 Apr, 2018 |

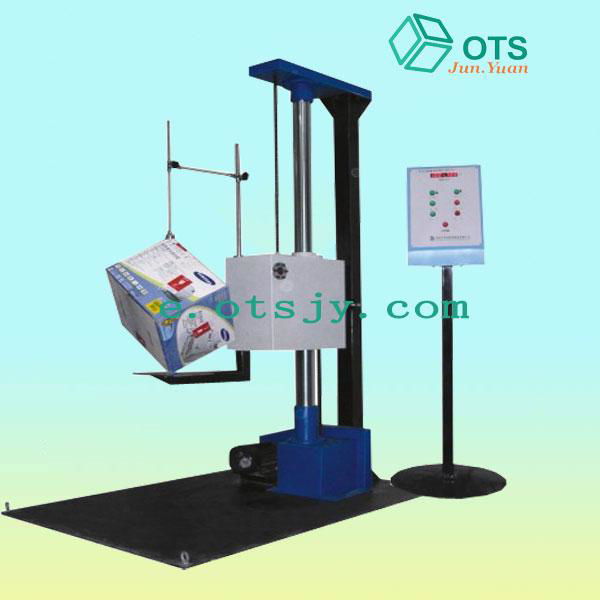

Monoplane drop test machine
Monoplane Packaging Falling Testing Machine
Uses:
This tester can determine the ultimate dimension in drop testing and incline impact testing for product and package performance which uses as reference to improve the packing. Special fixtures are available to allow for corner and edge drops.
Monoplane Packaging Falling Testing Machine
Design Standard: GB4757.5-84 JISZ0202-87 ISO2248-1972(E)
Monoplane Packaging Falling Testing Machine
Characteristics:
1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.
3. High Accuracy, direct display
4. It is steady when it is dropping and lifting
Monoplane Packaging Falling Testing Machine
Specifications:
|
Drop Height |
300 - 1500mm |
|
Max Weight of Specimen |
65 kg |
|
Test space(mm) |
800mm×800mm×800mm |
|
Impact board dimensions (Length*Width*Thickness) |
1700×1200 |
|
Corbel dimensions(mm) (Length*Width*Thickness) |
160×180×8mm |
|
Overall dimensions(mm) |
1700×1200×2300 |
|
Net weight(kg) |
600 |
|
Error for Drop |
<2° |
|
Error for Drop Height (mm) |
±10 |
|
Power |
380V 50HZ 5A 3φ |
|
Fitting modes |
Rhombohedrons, Angle, face |
|
Height Display modes |
digital |
|
Rate of work |
1.5KWA |
| Payment Terms: | TT |
|---|---|
