Cheapest price printer mechanism compatible with M-T532AF/AP
Product Description
| Key features |
| → Easy on the paper structure |
| → Separate Platen Design |
| → available with automatic cutter |
| → High-speed printing 250 mm / sec |
| → 150 km altitude durable life |
| → 90-degree vertical feed |
| Technical parameters |
| Printing method |
Thermal dot line printing |
| Printing speed |
≥50Km |
| Periphery dimension |
128mm x 93mm x 58mm |
| Weight |
537g |
| Path of paper traveling |
out-the-front |
| Printing width |
48mm |
| Platen unit's fixation |
May be off the basic mechanism to achieve installing paper easy |
| Platen unit’s position detection |
Via a mechanical switch |
| Paper detection |
Occlusion type light sensor via swing of the paper middle part |
| Thermal head temperature detection |
Via thermistor |
| Motor (driving paper)voltage |
24 ± 10%VDC(Stepping motor) |
| Motor (driving auto cutter paper)voltage |
24 ± 10%VDC(DC brush motor) |
| Printing dots number of per line |
576 dots |
| Paper width |
79.5 ± 0.5mm |
| Thermal head average resistance value |
650Ω ± 4% |
| Operating temperature |
+0℃-50℃ |
| Operating humidity |
20%-85%RH |
| Operating machine noise |
60dB(Max) |
| Resolution of level |
8dots/mm |
| Dot pitch |
0.125mm |
| Dot size |
0.125mm×0.12mm |
| Paper cutting |
Automatism (AF is full autocutter paper, AP is autocutter paper~keep |
| connecting together after finish printing) |
| Printer head working power voltage |
VH: 21.6-26.4VDC(Type:24V) |
| Printer head working logic voltage |
VDD: 4.75-5.25VDC(Type:5.0V) |
| Printing speed(Max) |
150mm/s(Motor voltage at 14VDC) |
| Driving method |
Stepping motor(24VDC pulsed drive), paper travel distance 0.0625mm |
| per step |
| Compatibility |
Compatible EPSON M-T532AF/AP printer mechanism |
| Scope |
Mini/pocket Cash register/POS printer for thermal bill printing equipment |
| with high quality & high speed operation |
| Payment Terms: | T/T, L/C, Western Union, Paypal |
| |

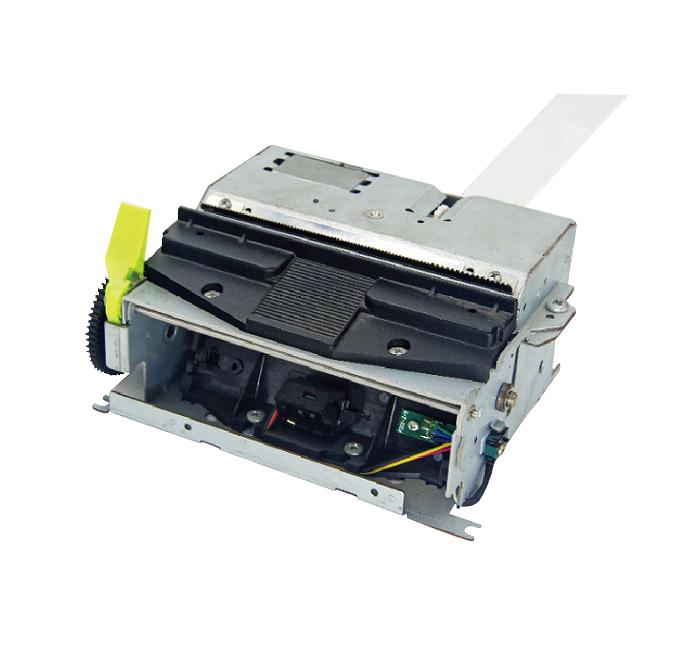

Product Image
Img 1
