Thermal printer mechanism compatible with Fujitsu FTP-628MCL101 & 384 dot matrix
Product Description
| Key features |
| → Long life |
| → Easy paper loading |
| → 180 degree in and out thermal paper |
| → Low noise, durable |
| → High-speed printing 90mm / sec (8.5V) |
| Technical parameters |
| Printing method |
Thermal dot line printing |
| Printing life |
≥50km |
| Paper width |
58mm |
| Printing dots number of per line |
384 dots |
| Printing width |
48mm |
| Periphery dimension |
96mm x 65.6mm x 29.6mm |
| Weight |
266g |
| Average resistance of printing head |
176Ω ± 4% |
| Platen unit's fixation |
May be off the basic mechanism to achieve installing paper easy |
| Paper detection |
Via a photo interrupter |
| Thermal head temperature detection |
Via thermistor |
| Printer head working power voltage |
VH:3.13～8.50VDC |
| Printer head working logic voltage |
VDD：2.7-5.25VDC |
| Motor voltage |
4.20～8.50VDC |
| Operating machine noise |
60dB(Max) |
| Path of paper traveling |
Perpendicular bend |
| Paper cutting |
Tear cut |
| Operating temperature |
+0℃-50℃ |
| Operating humidity |
20%-85%RH |
| Resolution of level |
8dots/mm |
| Dot pitch |
0.125mm |
| Dot size |
0.125mm×0.12mm |
| Printing speed(Max) |
90mm/s(Motor voltage at DC8.5V) |
| Driving method |
Stepping motor(4.20~10VDC pulsed drive), paper travel distance 0.0625mm |
| per step |
| Compatibility |
Complete(structure & FPC)FUJITSU's FTP-628MCL101 printer mechanism |
| Scope |
Mini/pocket Cash register/POS printer for the lower power voltage |
| Payment Terms: | T/T, L/C, Western Union, Paypal |
| |

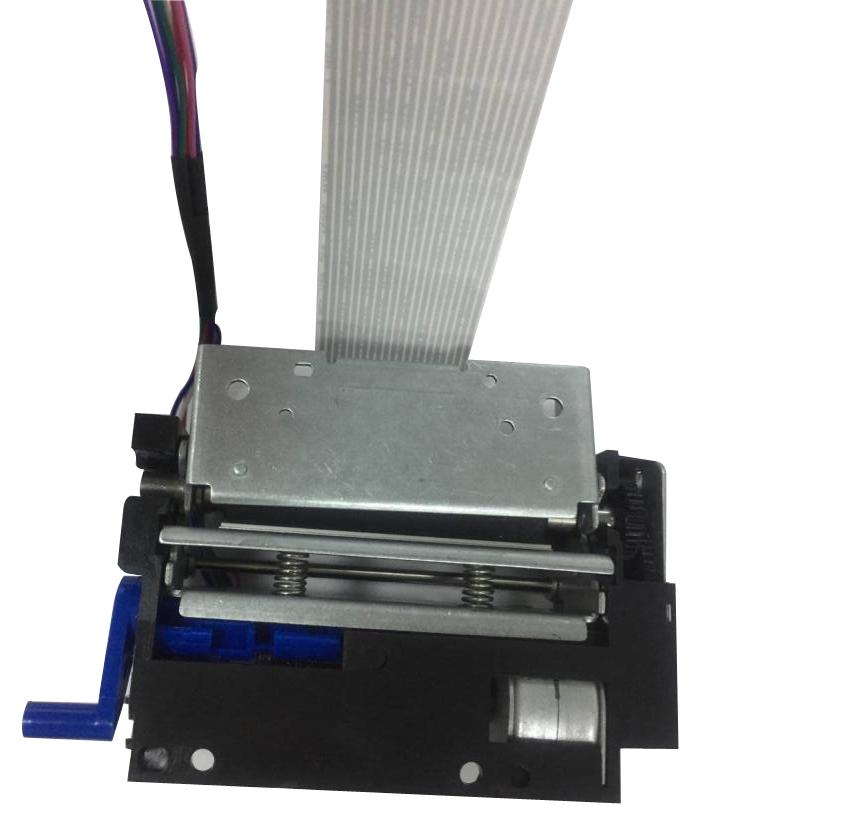

Product Image
Img 1
