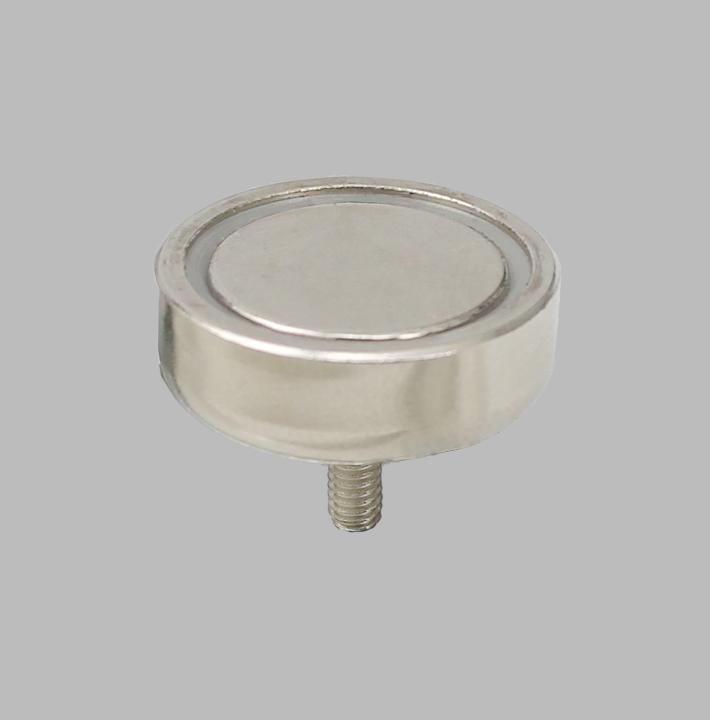

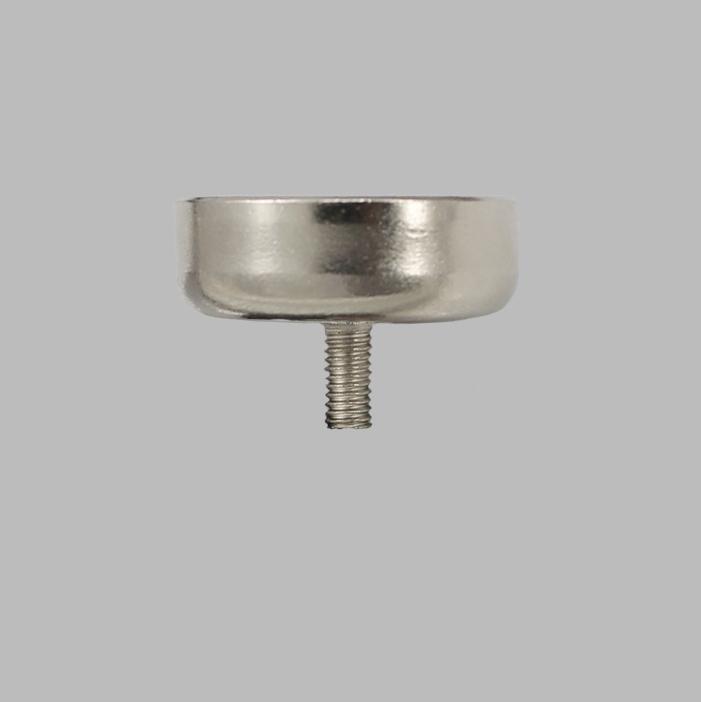

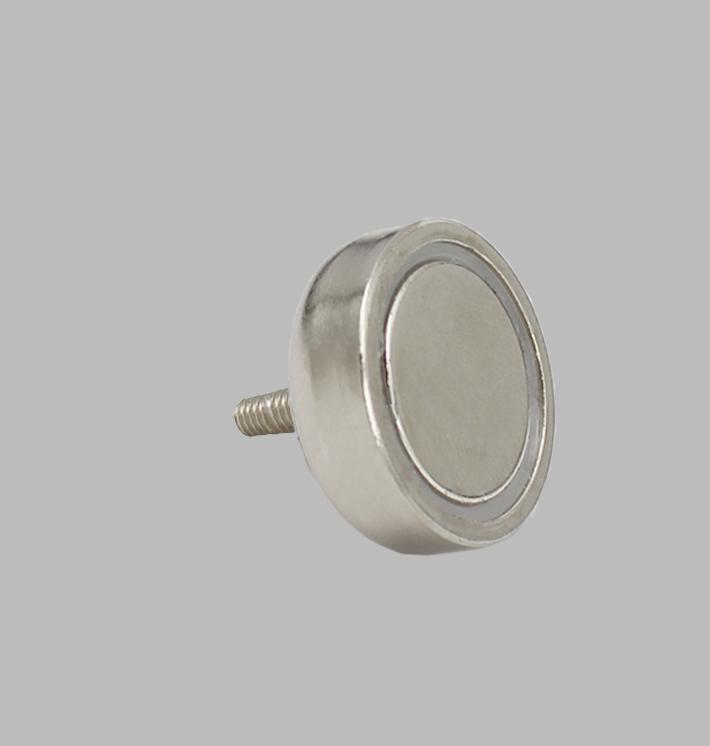

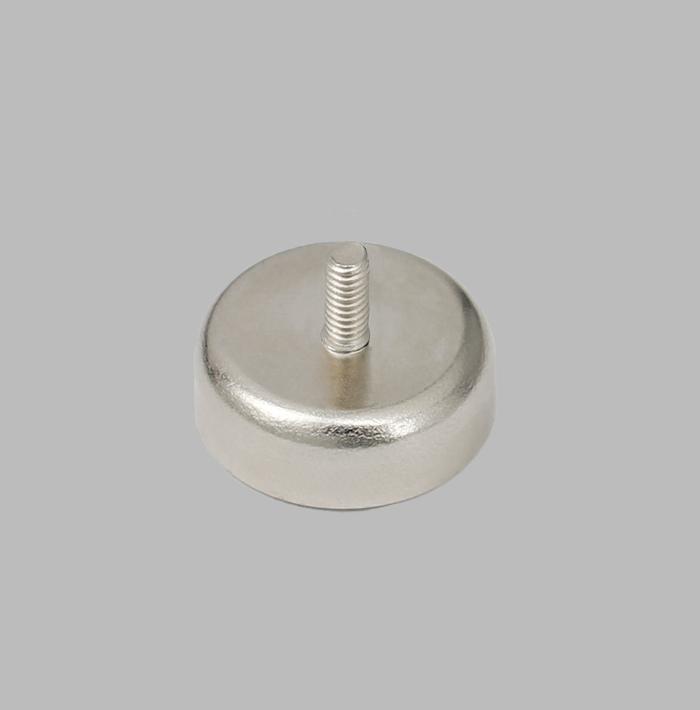

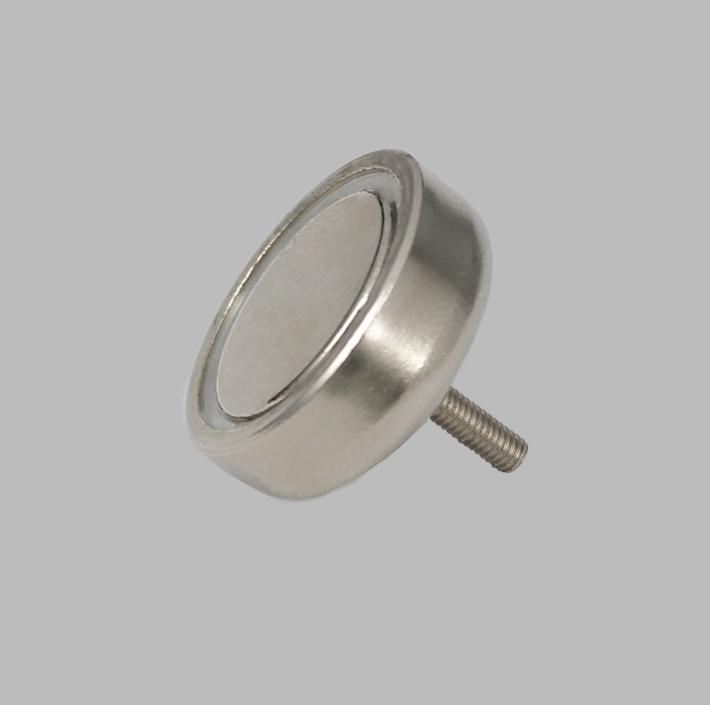

Round cup magnet consists of ndfeb magnet embeded in a iron armature with threaded mounting stud. Round cup magnet is a magnetic device used for retaining tools, signs or objects which have fastener basis and nut.




An round cup magnet cound retain the weight more than 200 times of itself,place round base magnet on flat and clean surface  it offers amazing stability. You can use them in any application which need strong magnetic holding force.





We could produce round base magnet in just about the dimensions and magnetic force you specify.












Model


D


M


H


h


Thickness
of Iron(mm)


Force(kg)


Net weight(g)




RPM-C10


10


3


12


4.5





2


2.8




RPM-C12


12


3


12


4.5





3


3.5




RPM-C16


16


4


14.5


5


1


5


7




RPM-C20


20


4


17


7


1


9


14




RPM-C25


25


4


17


8


2


17


25




RPM-C32


32


6


18


8


2.5


34


40




RPM-C36


36


6


22


8


2.5


40


50




RPM-C42


42


6


23


9


2.5


66


80




RPM-C48


48


6


24


11.5


3


80


140




RPM-C60


60


8


30


15


3


112


260




RPM-C75


75


10


32


18


3


162


475
