Router PCB Board-Precision PCB Cutting Machine

Model:CW-F04
Brand:Chuangwei
Origin:Made In China
Category:Industrial Supplies / Machinery / Separation Equipment
Label:Pcb Router , Routing Pcb with CNC , CNC Router for PCB
Price: -
Min. Order:1 Set
Inquire Now Add to Basket

Member Information

Detail

ChangWei Electronic Equipment Manufactory

Free MemberGuang Dong - China
Live Chat:Last Online:15 Mar, 2021

Product Description

China PCB Separator Machine Cutting Machine CNC Router,CW-F04

Specification:

Model

CW-F04

Standard working area

320*320mm

Power

220V, 4.2KW

Manipulator Repeatability

±0.02mm

Resolution

±0.01mm

Board Positioning

Dual workstation with nest fixture or pin fixture

Panel Location

Located by tooling holes or edges of PCB

Loading

Manual

Unloading

Manual

Panel Size

320*320mm(standard)

Panel Thickness

0.5-3.5mm

Spindle motor

KAVO Spindle

Tool Change

Manual

Dust filtration system

3KW Vacuum Cleaner

Vision system

High resolution CCD video camera

Programming

Vision assisted point to point manual teaching

Editing Function

Dry run vision assisted / test run mode

Machine weight

500kgs

Machine dimension

113*140*108cm

PCB Router Bits,PCB Depanelize Detailed Product Description:

PCB Size:

450*350( Any Size Customize )

Spindle:

KAVO

Power:

220/110V

Vacuum Cleaner:

3.5KW

Working Table:

2

Name:

PCB Router

The best sulotion for PCB depaneling:
1.Avoids problems such as the tin break and damage to the compnent caused by manually bending a plate
2.Avoids the stress produced mechanically by using punch or bending
3.Suitable for cutting of a circle, arc and line of a finished plate
Rotational speeds adjustable
1.The spindle head consists pf a high-speed motor and the main shaft, which can be replaced separately to reduce the cost of maintenance
2.The high-speed spindle uses air radiation to reduce volume
3.The head of the main shaft is suitable for the milling cutter specially designed for a PCB
4.The rotational speeds of the main shaft can be adjusted from 2K-60K RPM according to the thickness of PCB
The screen is friendly and can be switches between Chinese and English
1.Equipped with a build-in image capture, workpiece image and operation on the same screen, easy operation
2.The function selection, manual function selection and instruction for shift are selected by mouse
3.Mechanical parameters and function setting can be locked up with a password to avoid operation the equipment accidentally.
Value matching is accurate and instruction is conveniently
1.During instructing, there are three kinds of speed optional
2.Cooperating with the monitor, the diameter of a milling cutter, a circle and square frame can be set

DIY PCB Router,Router PCB Board,Precision PCB Cutting Machine, CW-F04 Samples


Payment Terms:TT LC

Product Image

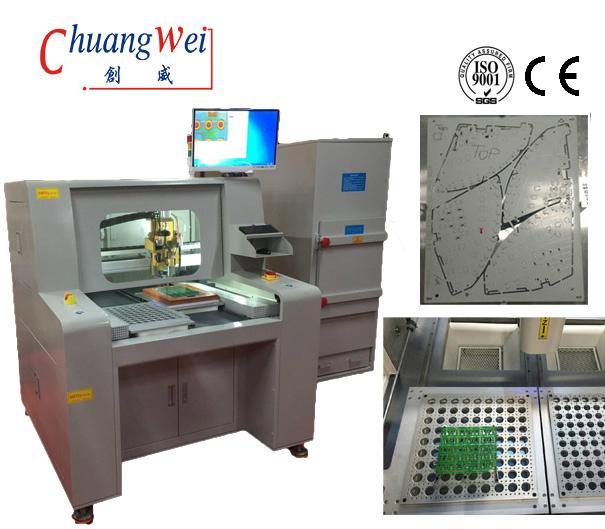

Router PCB Board-Precision PCB Cutting Machine 1
Img 1

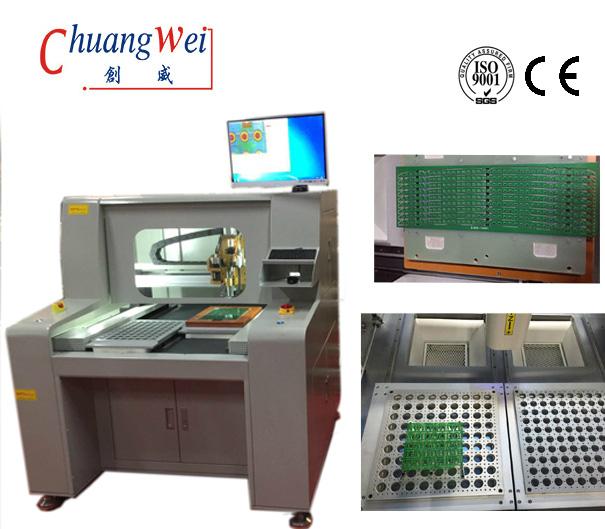

Router PCB Board-Precision PCB Cutting Machine 2
Img 2
Router PCB Board-Precision PCB Cutting Machine 3
Img 3
