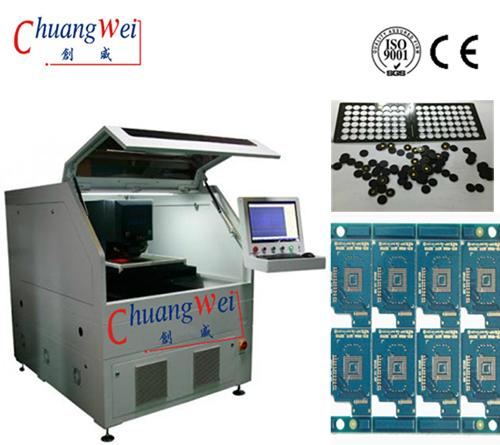

Fpc Separator by Using PCB Cutting with UV Laser

Model:CWVC-5S
Brand:Chuangwei
Origin:Made In China
Category:Industrial Supplies / Machinery / Separation Equipment
Label:Laser Pcba Cutting , Fpc Laser Depaneling , UV Laser cut for Pcb
Price: -
Min. Order:1 Set
Inquire Now Add to Basket

Member Information

Detail

ChangWei Electronic Equipment Manufactory

Free MemberGuang Dong - China
Live Chat:Last Online:15 Mar, 2021

Product Description

Fpc Depaneling,Fpc Cutting,PCB Cutter,CWVC-5S Detailed Product Description:

Product Name:

Laser Pcb Separator

Super:

Low Power Consumption.

Laser:

12/15/17W

Laser Brand:

Optowave

Power:

220V 380v

Warranty:

1 Year

Cutting Pcb with Laser PCB Depanelization,CWVC-5S Specification:

Laser

Q-Switched diode-pumped all solid-state UV laser

Laser Wavelength

355nm

Laser Power

10W/12W/15W/17W@30KHz

Positioning Precision of Worktable of Linear Motor

±2μm

Repetition Precision of Worktable of Linear Motor

±1μm

Effective Working Field

460mmX460mm(Customizable)

Laser Scanning Speed

2500mm/s (max)

Ga anometer Working Field Per One Process

40mmх40mm

Video of Fpc Depanelin with UV Laser,CWVC-5S

Challenges of Depaneling using Routing/Die Cutting/Dicing Saws

· Damages and fractures to substrates and circuits due to mechanical stress

· Damages to PCB due to accumulated debris

· Constant need for new bits, custom dies, and blades

· Lack of versatility – each new application requires ordering of custom tools, blades, and dies

· Not good for high precision, multi-dimensional or complicated cuts

· Not useful PCB depaneling/singulation smaller boards

Lasers, on the other hand, are gaining control of the PCB depaneling/singulation market due to higher precision, lower stress on the parts, and higher throughput. Laser depaneling can be applied to a variety of applications with a simple change in settings. There is no bit or blade sharpening, lead time reordering dies and parts, or cracked/broken edges due to torque on the substrate. Application of lasers in PCB depaneling is dynamic and a non-contact process.

Advantages of Laser PCB depaneling/singulation

· No mechanical stress on substrates or circuits

· No tooling cost or consumables.

· Versatility – ability to change applications by simply changing settings

· Fiducial Recognition – more precise and clean cut

· Optical Recognition before PCB depaneling/singulation process begins.

· Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)

· Extraordinary cut quality holding tolerances as small as < 50 microns.

· No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards

Working principle :

humidity sensor ( humidity and temperature signal ) → Microcomputer ( CPU Central Processing Unit ) → Heaters  ( PTC heating module polymer material heating ) → Smart shape memory alloy ( alloy shape with temperature change ) → Balance spring ( general balance spring with alloy )

PCB Separator with UV Laser Cutting Application:

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
