High Pressure Flexible HDPE Composite Oil Hose

Model:17mm ~ 200mm
Brand:Happy or OEM
Origin:Made In China
Category:Chemicals / Rubber Materials
Label:hydraulic hose , rubber hose , oil hose
Price: US $0.99 / meter
Min. Order:1 meter
Inquire Now Add to Basket

Member Information

Detail

Happy Tianjin Technology & Development CO,.LTD.

Free MemberTian Jin - China
Live Chat:
点击这里给我发消息Last Online:08 Jan, 2018

Product Description

High Pressure Flexible HDPE Composite Oil Hose

Construction

This kind of hose was designed by three thermoplastic inner layer of helically wound continuous fiber reinforced high strength metallic structural layer, protective layer of thermoplastic.

As a thermoplastic inner layer of corrosion resistant medium transport layer, non-metallic pipeline structureto provide integrity protection of the protective layer bearing thermoplastic fibers.

Technical overview:

Thermoplastic inner line layer, as for conveying a fluid (liquid or gas), the transport layer mainly use high-density polyethylene (HDPE) which can be resistant corrosion.

Structural layer spiral nonmetallic fibers, so that products have structural integrity.

Thermoplastic protective layer is a protective high-density polyethylene (HDPE). We usually provide. Standard black jacket, which provides a minimum of 20 years of protection against exposure to ultraviolet (UV) light. This kind of composite hose of white color can absorb low heat and provides UV protection for at least 20 years. Yellow jacket are frequently used utilities industry.

Application:

Spoolable non-metallic fiber reinforced plastic composite pipe for corrosion collection and injection,
including general and acidic liquids or gases / water / crude oil / refined oil, alcohol and so on.


Advantages:

1. The thermoplastic inner layer could protect the pipeline from corrosion and save the money for restrain the corrosion.

2. It could make the project construction easier and simpler, reduce the cost for instead of traditional steel pipeline and glass fiber pipeline.

3. Its length could be unlimited. In this case, it is not necessary to make connection and easy and quick to set up.

3. Structural layer is between thermoplastic inner layer and the protective layer. It can move freely, thus the the bend radius is smaller and easier to use in the field and transpor.

4. Very durable and easy to handle.

Specification:



ID
mm

Average OD
mm

Min WT
mm

Tolerance
mm

Working Pressure
MPa

Mini Bent Radius
mm

17

30

6.5

+0.5
0

32

230

25

40

7.5

+0.5
0

32

300

25

38

6.5

+0.5
0

25

300

25

37

6.0

+0.5
0

20

300

25

36

5.5

+0.5
0

16

300

25

35

5.0

+0.5
0

12

300

25

31

3.0

+0.5
0

2.5

300

40

70

15.0

+0.5
0

25

450

40

69

14.5

+0.5
0

20

450

40

67

13.5

+0.5
0

16

450

40

65

12.5

+0.5
0

12

450

40

62

11.0

+0.5
0.

6.4

450

40

60

10.0

+0.5
0

2.5

450

50

82

16.0

+0.5
0

32

500

50

79

14.5

+0.5
0

25

500

50

78

14.0

+0.5
0

20

500

50

75

12.5

+0.5
0

16

500

50

74

12.0

+0.5
0

12

500

50

69

9.5

+0.5
0

6.4

500

50

67

8.5

+0.5
0

2.5

500

60

96

18

+0.6
0

25

600

60

95

17.5

+0.6
0

20

600

60

94

17.0

+0.6
0

16

600

60

92

16.0

+0.6
0

12

600

60

90

15

+0.6
0

6.4

600

60

88

14

+0.6
0

2.5

600

65

99

17

+0.6
0

25

700

65

98

16.5

+0.6
0

20

700

65

97

16

+0.6
0

16

700

65

95

15

+0.6
0

12

700

65

92

13.5

+0.6
0

6.4

700

65

90

12.5

+0.6
0

2.5

700



Our Services
We can offer OEM Services.
We can provide FREE SAMPLE for our customers.
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.


FAQ's

Q1. Do you produce smooth or cloth wrapped cover?
       A.   Both, we can produce both cover, which depends on customer's request.
Q2. Do you produce embossed marking?
       A.   Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
       A.   Yes, we have been offering OEM services for more than 13 years.
Q4. Does your product have different color hose?
       A.   Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
       A.   It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.


Our principle:
Excellent quality. Fast delivery. Integrity service.

For any inquiries,please contact us directly !






Product Image

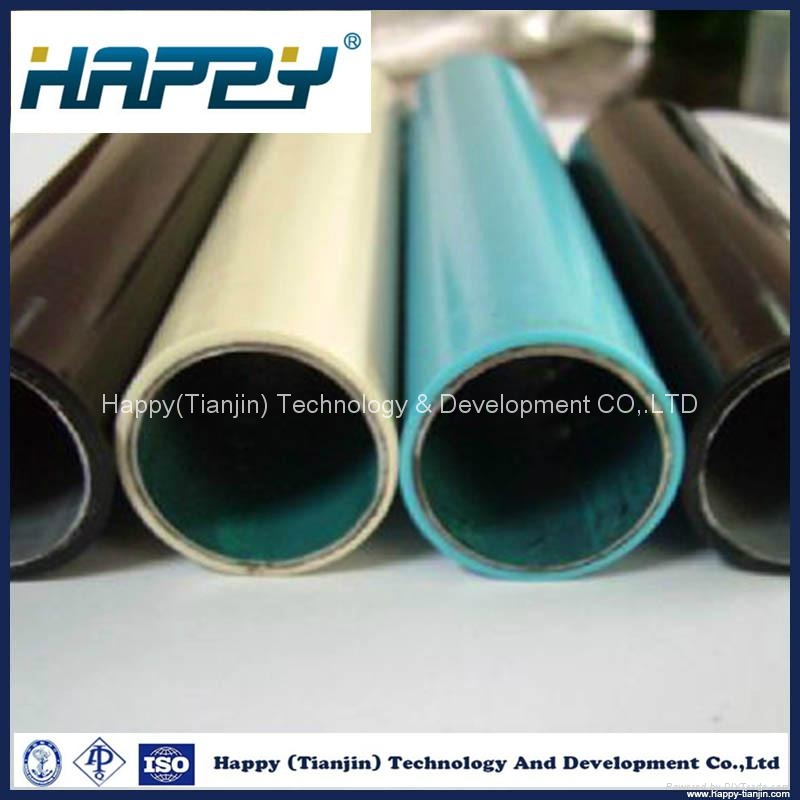

High Pressure Flexible HDPE Composite Oil Hose 1
Img 1
High Pressure Flexible HDPE Composite Oil Hose 2
Img 2
High Pressure Flexible HDPE Composite Oil Hose 3
Img 3
High Pressure Flexible HDPE Composite Oil Hose 4
Img 4
High Pressure Flexible HDPE Composite Oil Hose 5
Img 5
