Chinese Hydraulic Rubber Hose Assembly Pipe Fitting

Model:Hose Assembly
Brand:Happy or OEM
Origin:Made In China
Category:Chemicals / Rubber Materials
Label:hydraulic hose , hose , hose assembly
Price: US $0.73 / meter
Min. Order:1 meter
Inquire Now Add to Basket

Member Information

Detail

Happy Tianjin Technology & Development CO,.LTD.

Free MemberTian Jin - China
Live Chat:
点击这里给我发消息Last Online:08 Jan, 2018

Product Description

Chinese Hydraulic Rubber Hose Assembly Pipe Fitting

Construction:

  • Tube: High quality synthetic rubber.
  • Reinforcement: One or two, four or six high tensile steel wire braided or spiralled.
  • Cover: Abrasion and weather resistant synthetic rubber.
  • Temperature range: -40°C to +120°C.
  • Usual hose fittings: JIC NPT BSP BSPT ...standard hydraulic hose fittings crimped.


Application:

Hose range suitable to carry hydraulic fluids such as glycol, mineral oil, fuels, lubricants, emulsion, hydrocarbons etc.

Specification:



R2
DN

Hose I.D

Wire O.D

Hose O.D

Working Pressure

Burst Pressure

Minimum Bend Radius

Weight

inch

mm

mm

mm

MPa

psi

MPa

psi

mm

kg/m

5

3/16

4.8

11.1

13.4

41.4

6000

16

23720

89

0.32

6

1/4

6.4

12.7

15.0

40.0

5800

160

22840

102

0.36

8

5/16

7.9

14.3

16.6

36.0

5250

140

20000

114

0.45

10

3/8

9.5

16.7

19.0

33.1

4800

132

18840

127

0.54

13

1/2

12.7

19.8

22.2

27.6

4000

110

15720

178

0.68

16

5/8

15.9

23

25.4

25.0

3630

100

14280

203

0.8

19

3/4

19.0

27

29.3

21.5

3120

85

12280

241

0.94

25

1

25.4

34.9

38.0

16.5

2400

65

9420

305

1.35

32

1 1/4

31.8

44.5

48.3

12.5

1820

50

7140

419

2.15

38

1 1/2

38.1

50.8

54.6

9.0

1310

36

5140

508

2.65

51

2

50.8

63.5

67.3

8.0

1160

32

4560

635

3.42



Our Services
We can offer OEM Services.
We can provide FREE SAMPLE for our customers.
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.


FAQ's

Q1. Do you produce smooth or cloth wrapped cover?
       A.   Both, we can produce both cover, which depends on customer's request.
Q2. Do you produce embossed marking?
       A.   Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
       A.   Yes, we have been offering OEM services for more than 13 years.
Q4. Does your product have different color hose?
       A.   Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
       A.   It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.


Our principle:
Excellent quality , Fast delivery, Integrity service.


For any inquiries,please contact us directly !


Product Image

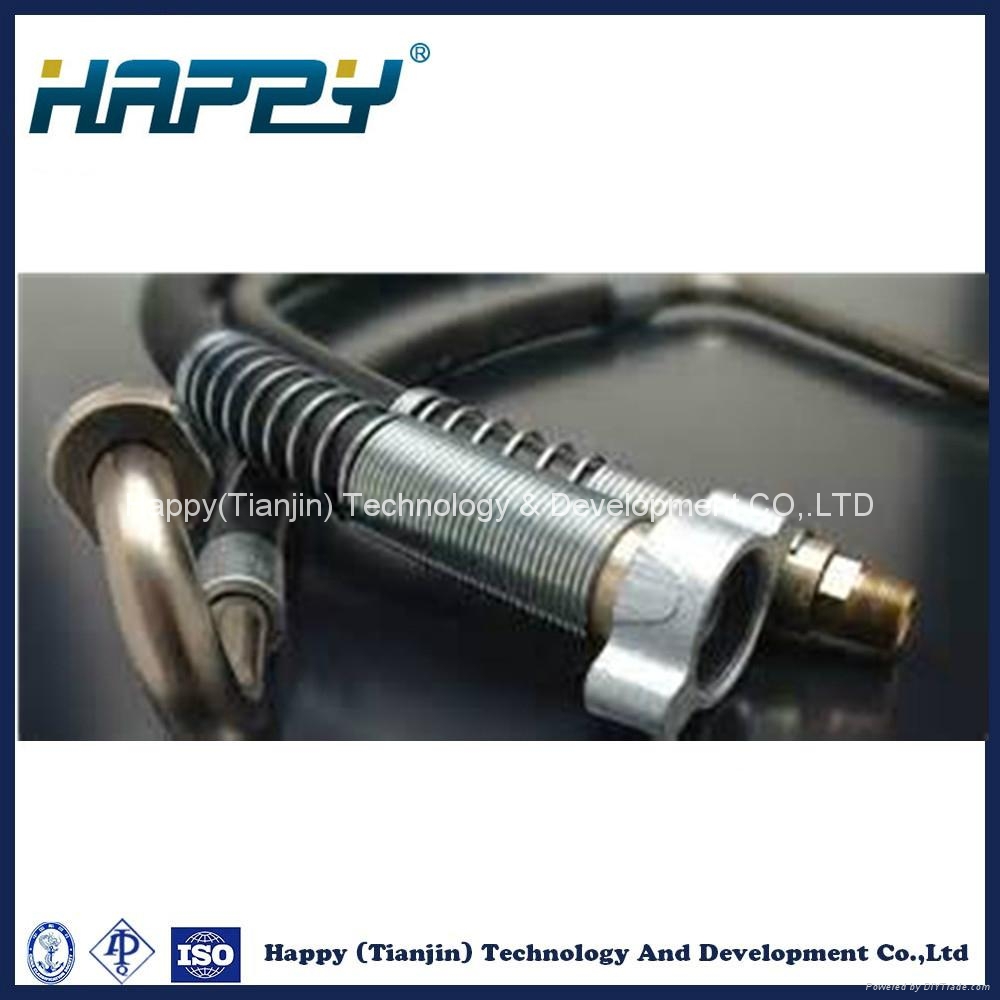

Chinese Hydraulic Rubber Hose Assembly Pipe Fitting 1
Img 1

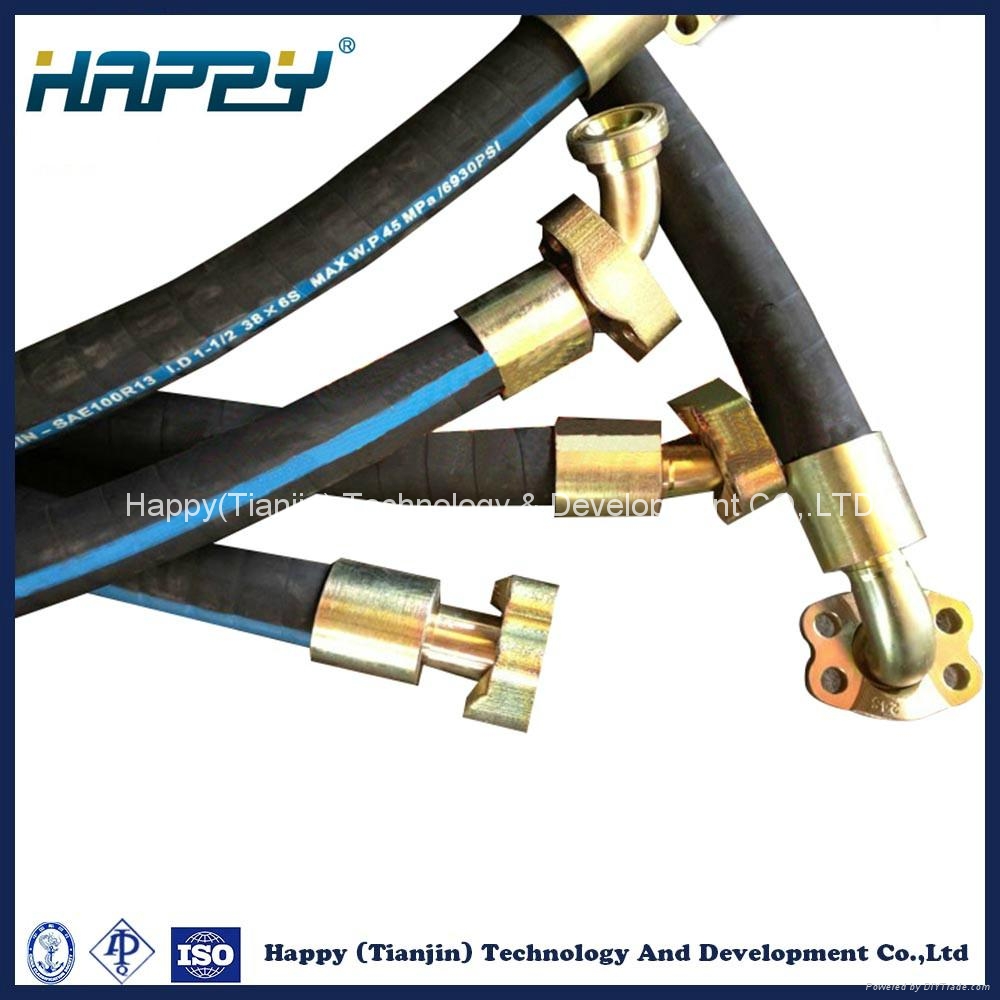

Chinese Hydraulic Rubber Hose Assembly Pipe Fitting 2
Img 2
Chinese Hydraulic Rubber Hose Assembly Pipe Fitting 3
Img 3
Chinese Hydraulic Rubber Hose Assembly Pipe Fitting 4
Img 4
Chinese Hydraulic Rubber Hose Assembly Pipe Fitting 5
Img 5
