F21-2S, F21-2D Industrial Remote Control System

Model:F21-2S, F21-2D
Brand:-
Origin:Made In China
Category:Electronics & Electricity / Remote Control
Label:Hoist controller , remote control , winch controller
Price: US $69 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Henan Dirk Electronic Co.Ltd

Free MemberHe Nan - China
Live Chat:
Last Online:03 Jul, 2017

Product Description

F21-2S industrial remote control system

NOTES: This model have two pushbuttons, you can choice single speed (F21-2S) or double speed (F21-2D)

Company Advantage:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable

1.Technical specifications

1.1 Basic informations:


Control distance Up to 100m
Control point 2 (single speed)/4 (double speed)
Frequency generation Crystal
Structure Glass-Fiber
Operation frequency 310.0325-331.165 MHz
Certificates CE, FCC, ISO9001:2008
Unique code Over 4.3billon unique ID codes .
Working temperature -35°C___+80°C
Output capacity Full sealed relay output with 5 amperes


1.2 Transmitter specifications

1. Dimensions: 196*65*53mm
2. Weight: 320g
3. Material: glass-fiber
4. Protection degree: IP65
5. Power supply: DC 3V (2AA Batteries)


1.3 Receiver specifications
1. Power supply: AC380V/36V/220V/110V/48V/24V or AC12V/DC12V (±20%)
2. Dimensions: Size:171*86*85mm
3. Weight: 550g
4. Material: glass-fiber
5. Protection degree: IP65


 2.Standard configuration:
        One transmitter ;
        One receiver;
        One 1m cable connect with receiver
        One operation and maintain manual .

3.Features of industrial remote control system:
*Two push button and one EMS button + one START button+one STOP button
*control point up to 2
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*Two single speed push button + START +STOP+EMGS+SWITCH
*UP,DOWN push button can be set jump strokes,ordinary, mutual inhibition or not .

4. Application of industrial remote control system:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, papermaking and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites which can be worked by radio controls.

If you are interest this products; please feel free to contact us
F24-8d Telecrane Industrial Radio Remote Controls System




Product Image

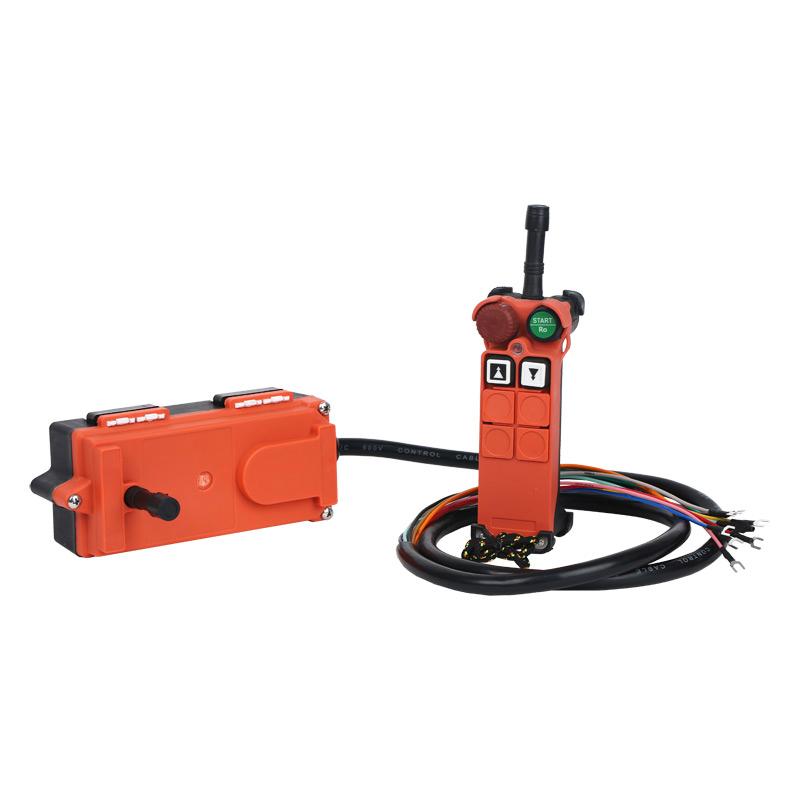

F21-2S, F21-2D Industrial Remote Control System 1
Img 1

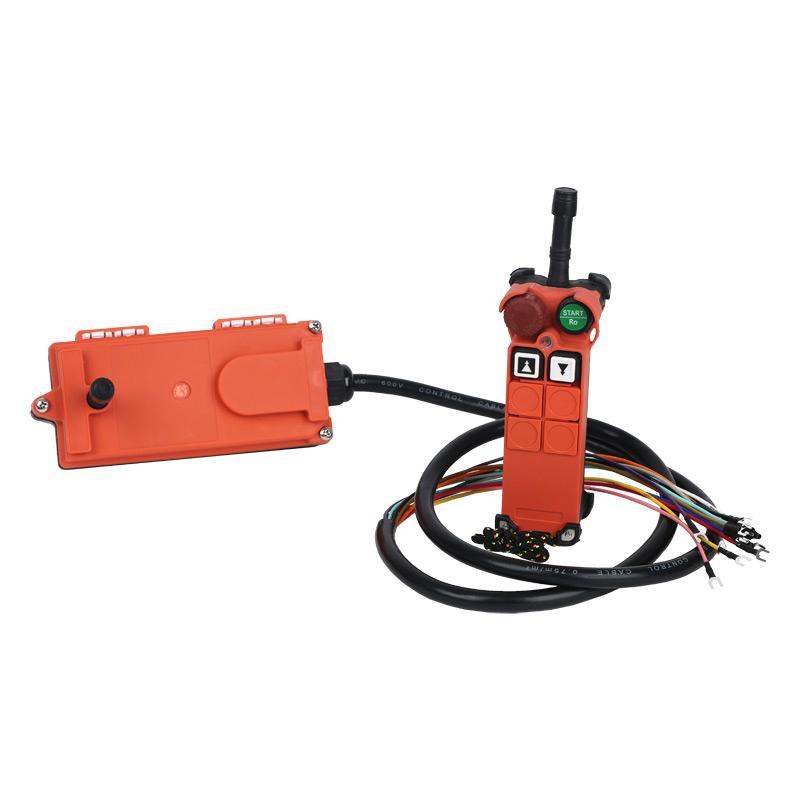

F21-2S, F21-2D Industrial Remote Control System 2
Img 2

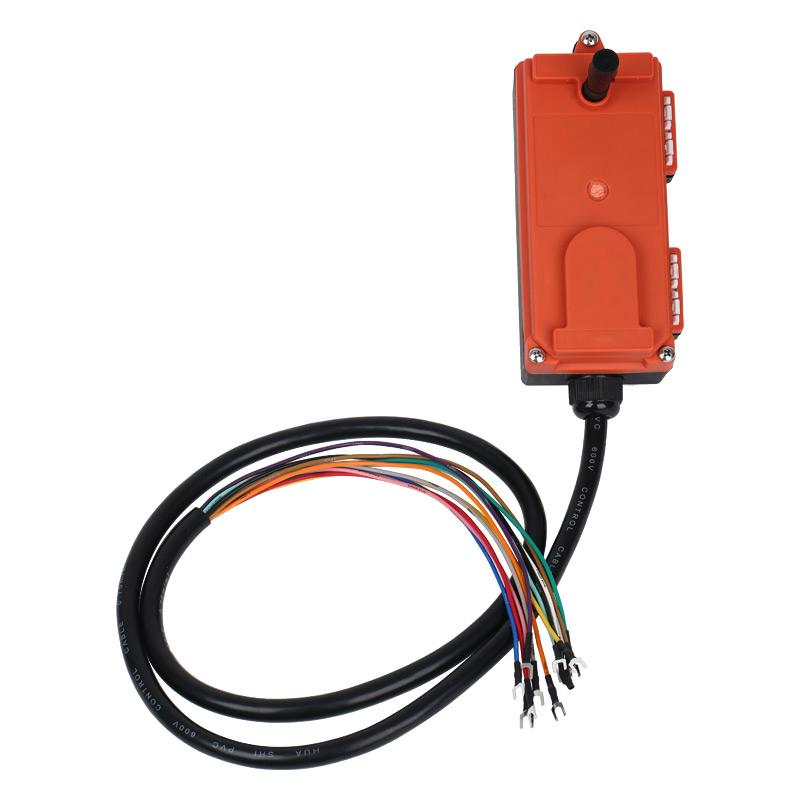

F21-2S, F21-2D Industrial Remote Control System 3
