Industrial Wireless Remote Control Bridge Crane F24-6D

Model:F24-6D
Brand:Electronic
Origin:Made In China
Category:Electronics & Electricity / Remote Control
Label:telecrane controller , remote control , crane controller
Price: US $185 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Henan Dirk Electronic Co.Ltd

Free MemberHe Nan - China
Live Chat:
Last Online:03 Jul, 2017

Product Description

industrial wireless radio overhead crane remote control F24-6D

Brief introduction:
1.More than 10 years researching and exporting experience in Radio Remote Control industry.
2.More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT
 machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
7. One year warranty

Photos:

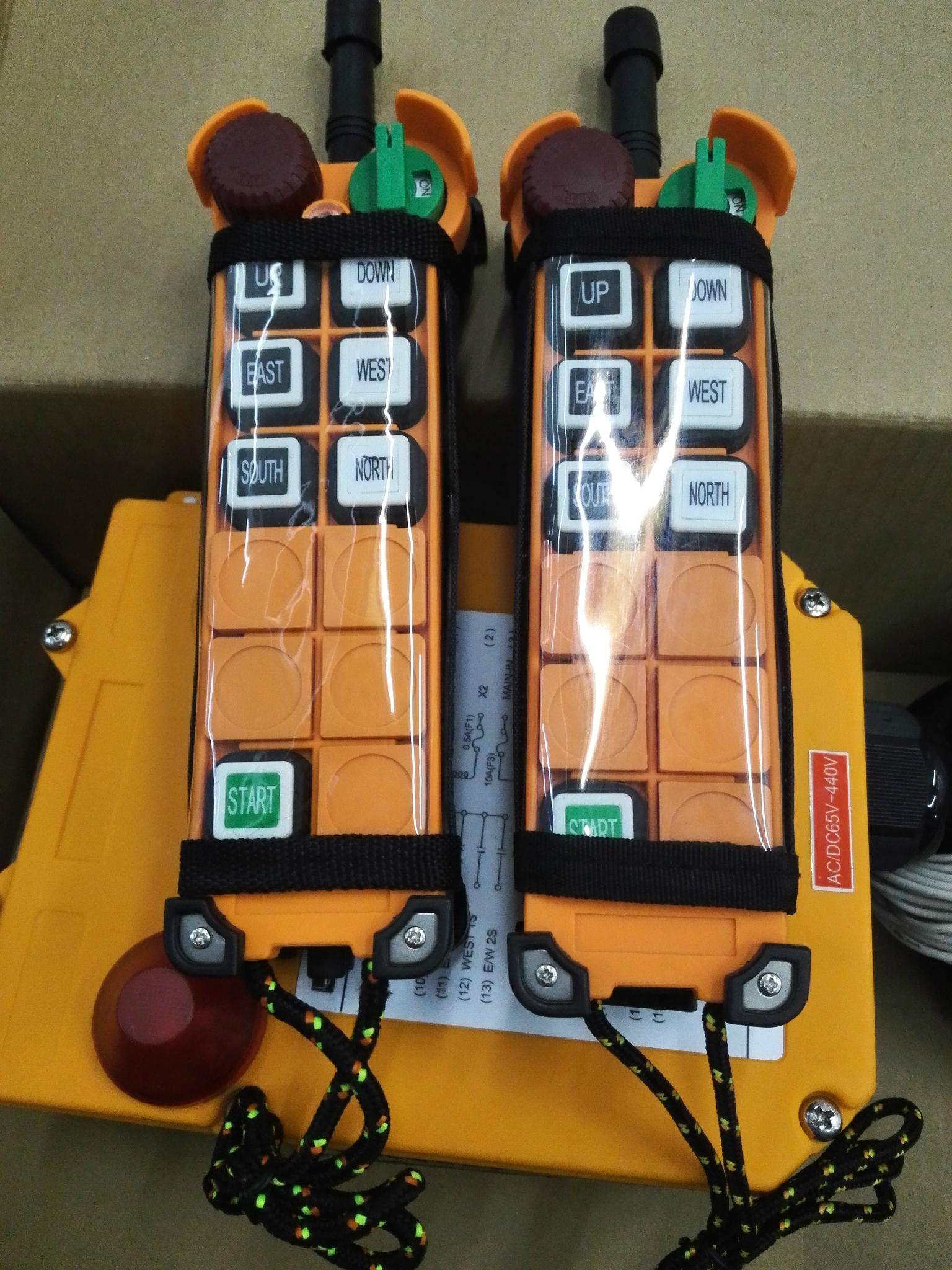

Telecrane remote controls


Specification:



Application

Overhead cranes, hoist ,chain hoist and other industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

10

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

6 Double speed push button+1 start+1 stop

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber



Standard configuration:
                          One transmitter;
                          One receiver;
                          One 1m cable connect with receiver;
                          One operation and maintain manual

remote control bridge crane Feature:
*6 Dual speed push buttons +one EMGS button+ one START button+ one STOP button + one SWITCH
* control points up to 10
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down,east/west,south/north push button can be set start ,close,speed up,jump strokes,ordinary etc.


If you are interest this products; please feel free to contact us
