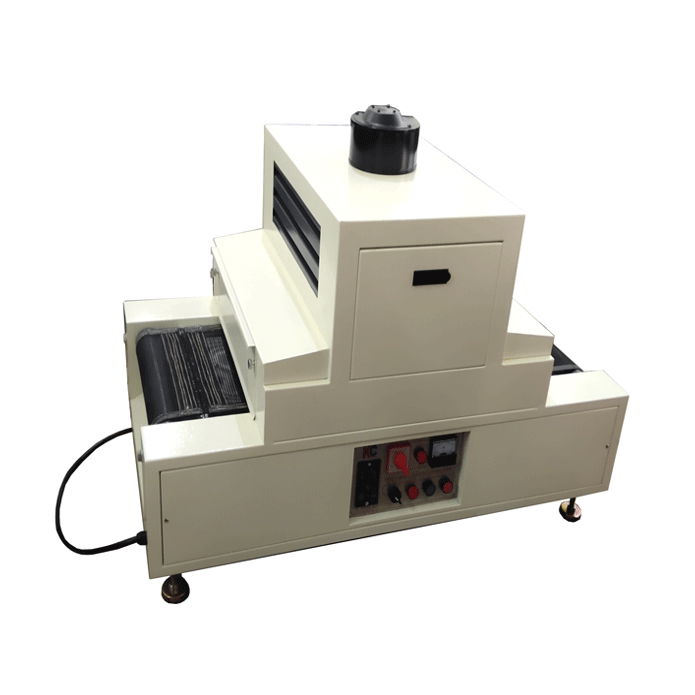

 Tabletop UV Drying Machine//Usage and characters

Guide

• UV curing for CD;
  UV curing for Small-dimension Electronic products;
  UV curing for circuit wafer UV gule;
  UV curing for A4 paper;
  UV curing for Inkjet cartridge of printer；
  Test on UV printing Ink.
• KC Serials Tabletop UV Curing Unit:Used in the field of post-printing by UV ink. it can exposure  UV light onto the film of UV ink to make it dry.
• Testing in UV ink producing factory.
• Drying after printing UV pad ink by pad printing machine.
• Tabletop UV curing machine and lower price. Suitable for curing small dimension objects；
• Install one pc 2KW UV lamp; conveyor size is 300*1250mm.

Application fields

• Electron, Hardware, Auto, Toys, Gifts, Plastics parts，
• Plastics products, House appliances, work of art, Stationery, Ornament, cosmetic, sports apparatus .UV drying for UV ink .

Tabletop UV Drying Machine//Parameter

Technical parameters

M-30125TUVC

• Max products：280×400mm(W×L)
• Total wattage：2.15KW;
• Wind fan wattage：150W/220V;
• Conveyor motor wattage：4×25W/1P/220V;
• Conveyor speed：0~10m/min;
• Speed change ways：continue;
• Dimension：1250×550×660mm(l×w×h);
• Weight：100KG;
• Lamp wattage:2KW/220V;
• Max height of products: 50mm.

• Max products：280×400mm(W×L);
• Total wattage：4.15KW;
• Wind fan wattage：150W/220V×2;
• Conveyor motor wattage：4×25W/1P/220V;
• Conveyor speed：0~10m/min;
• Speed change ways：continue;
• Dimension：1550×550×660mm(l×w×h);
• Weight：108KG;
• Lamp wattage:2KW/220V×2pcs;
• Max height of products: 50mm.

Works supply

• Power： 1 phase 220V.

Package list

• Outer Dimension:   1.20×0.47×0.68m(L×W×H)
• Gross weight: 67Kg;

• Package Dimension:   1.24×0.57×0.75m(L×W×H)
• Gross weight: 110Kg;
• CBM: 0.5301

H.S.Code

8443198000

Certificate

CE

M-30125UVC Tabletop UV Curing Machine//Advantage

Function

• The conveyer speed can adjustment according to the products drying condition;
• Conveyer belt mabe by teflon materials;
• Famous brand UV lamp installed ;
• Cooling fan installed on the side to remove the heat in curing chamber;
• Worked on Table, save the space;
• Teflon conveyer belt and resist high temperature. function.
• Electrical components and control systems using Famous brand  to ensure stable Curing quality.
