Description:

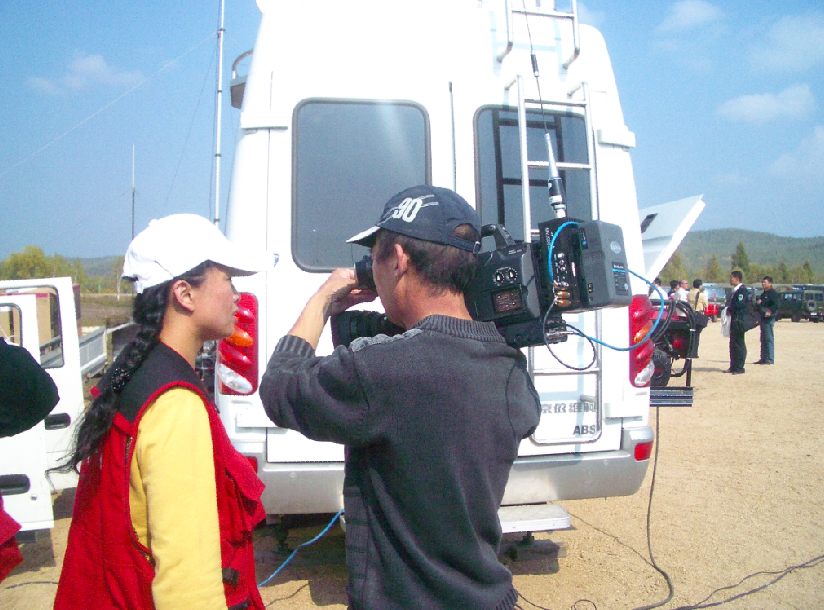

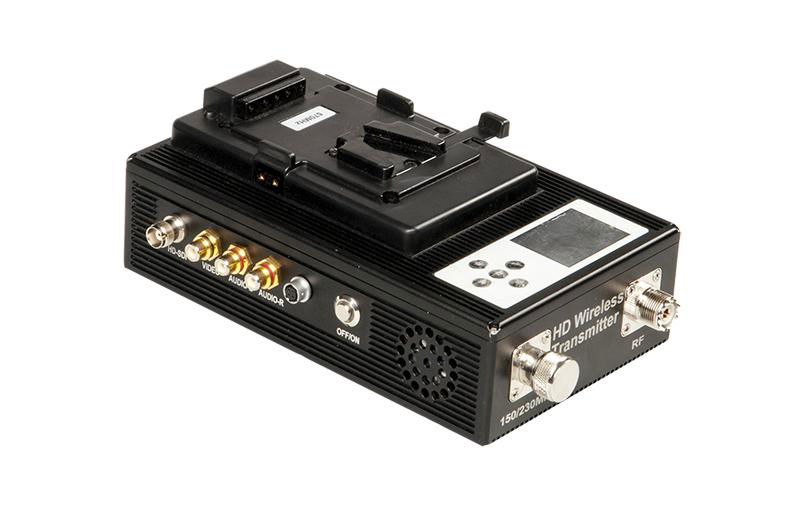

SF-M8801K2W series COFDM mobile wireless image real-time transmission system is a wireless video transmission system. Using the current leading COFDM modulation technology,has a relatively narrow air bandwidth (2MHz) and a strong anti-multipath interference capability, to overcome the image transmission multipath reflection and block brought about by high-speed shooting and real-time non-line-of-sight transmission of high-quality images under the simulation technology and conventional modulation technology , especially suitable for the use of complex environments. The series of products on the panel equipped with radio and television standard bayonet,suitable for television, news interviews and other fields.
Key features:

1. Low power consumption, good heat dissipation, low operating temperature (≤ 45 ℃)
2. Integrated design, comes with battery and external power interface, easy to use
3. Image quality is high, the image is clear and stable, no tailing phenomenon
4. Strong diffraction ability,long transmission distance, support non-line-of-sight transmission
5. Using COFDM modulation technology and MPEG-2 image compression technology,stable power , dynamic power adjustable

6. Radio frequency modulation part
   Working frequency	138MHz～4400MHz can be customized
   Output Power	1～5W LCD adjustment
   Modulation mode	COFDM
   Channel bandwidth	2/2.5/4/8MHz
   Corrective way	FEC@Viterbi （1/2，2/3，3/4）
   Protection interval	1/32，1/16，1/8，1/4
   Encryption	Manual AES double encryption
   System part
   Coding	Meet the H.264 technical standards
   Stream	2Mbps～12Mbps
   System delay	300ms
   Bit error rate	≤10-6
   Transmission distance	Airborne use> 70 km; maritime applications> 30 km; urban applications> 6 km; suburban applications> 9 km
   Using	Buckle plate type
   Audio and video parts
   Compression format	H.264
   Audio and video input	Digital HD-SDI, analog CVBS audio and video or digital HDMI, analog CVBS audio and video (optional)
   Image clarity	HD1080P（1920*1080）,support1080I、720P、480P and SD
   Image frame rate	Standard 24,50,60 frames / sec, compatible with other frame rates
   Video input physical interface	TNC, BNC female, HDMI standard interface
   Audio input physical interface	TNC, BNC female, HDMI standard interface
   Other parts
   Parameter display	Comes with LCD liquid crystal display, adjust the parameters
   Power	Radio and TV dedicated battery DC14.4V SONY V-type buckle
   Size	200×125×50 mm (L×W×H)
   Weight	1.5Kg
