Economical outdoor digital bridge

Model:SF-5017CH-W
Brand:SF-Tech
Origin:Made In China
Category:Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment
Label:microwave transmissi , outdoor monitoring , wireless video
Price: US $220 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Shenzhen SF Technology Co.,Ltd

Free MemberGuang Dong - China
Last Online:12 Apr, 2017

Product Description

Description

The SF-5017CH-W economical MIMO wireless bridge uses external antennasupports the 802.11a / n protocol,the airborne rates can reach 300M. According to a variety of on-site environment can be used with different antennas to achieve different transmission functions. Is an economical 5.8G wireless transmission equipment.

The device works in the 5G band,has rich channel resources,excellent spectrum efficiency, anti-interference ability and advanced priority control, perfectly support for audio and video and network data transmission. With different models of the antenna, you can achieve a variety of different wireless transmission applications. Very suitable for long-range wireless monitoring.

Key features:

  • Support IEEE 802.11a/n
  • Atheros 560MHz CPU
  • High output power to 26dBm400mw
  • High AP transmission rate at 300Mbps
  • High sensitivity receiving
  • support antenna signal calibration
  • Distance can be adjusted during Long-distance transmission
  • Support Poe power
  • Waterproof protection design

Details:

Details

CPU

Atheros AR9342 (560MHz)

RAM

64MB DDR2

ROM

8MB

Power supply

Power supply mode

24V PoE

Power consumption



5.5 W

Environment

Temperature

Operating temperature:-20ºC to 70ºC

Storage temperature: -40ºC to 90ºC

Humidity

Operating temperature: 5% to 95% (non-condensing)

Storage temperature: Max.90% ((non-condensing)

Wired

Wired network

Double RJ45 ports

Launch power and receiver sensitivity



Launch power

Data transmission rate

5GHz(summery)

HT20 MCS0

25dBm

HT20 MCS7

19dBm

HT40 MCS0

24dBm

HT40 MCS7

19dBm

Receiver sensitivity

Data transmission rate

5GHz

HT20 MCS0

-94dBm

HT20 MCS7

-77dBm

HT40 MCS0

-93dBm

HT40 MCS7

-75dBm

Exterior

Size

270*270*70(mm)

Weight

2kg


Product Image

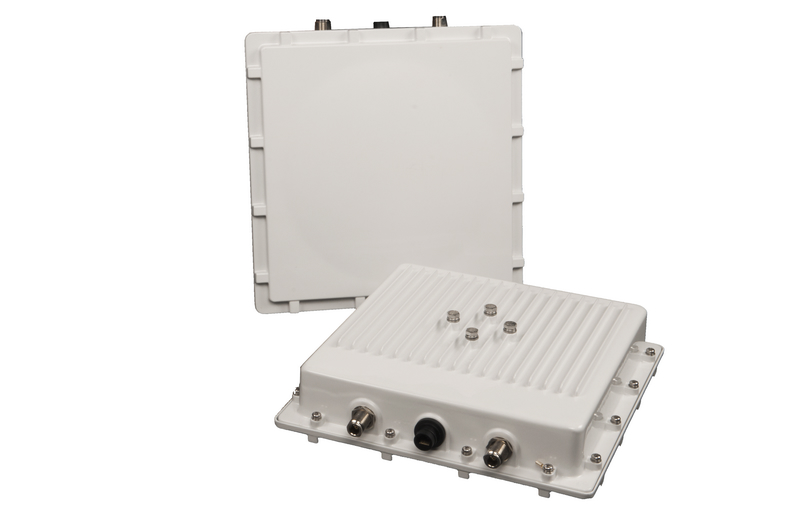

Economical outdoor digital bridge 1
Img 1

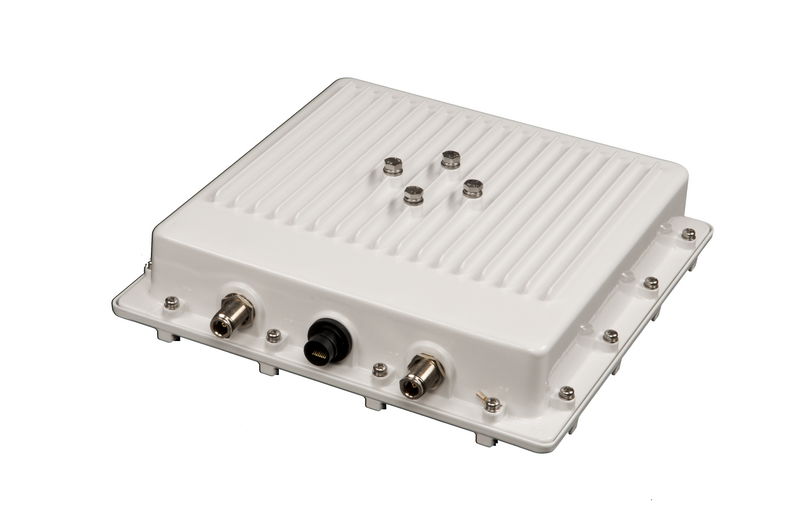

Economical outdoor digital bridge 2
Img 2

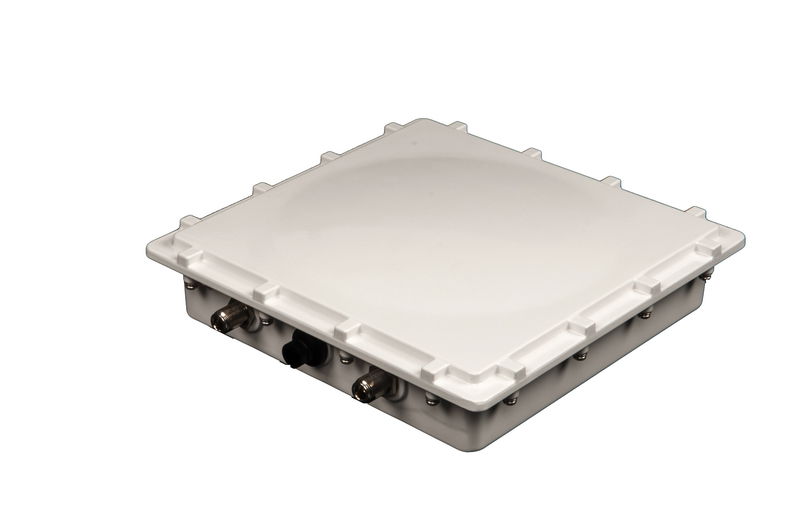

Economical outdoor digital bridge 3
Img 3
Economical outdoor digital bridge 4
Img 4
Economical outdoor digital bridge 5
Img 5
