FRP process pipes

Model:CHL-PP
Brand:CHL
Origin:Made In China
Category:Construction & Decoration / Pipe, Tube & Parts / Composite Pipe & Tube
Label:FRP pipes , FRP process pipes , FRP pipelines
Price: US $30 / m
Min. Order:30 m
Inquire Now

Member Information

Detail

Product Description

FRP process pipeline
FRP process pipe is well known by its remarkable energy saving, n≤0.0084. Thanks to smooth inwall, the fluid delivery pressure loss is small, so customer can choose smaller size pipe or smaller power delivery pump for the same flow. For long distance delivery, bigger size pipe can save installation charge, reduce thermal insulation charge, cancel anticorrosion and maintenance charge.
FRP process pipe won’t be frost crack under frozen medium.
Anti-corrosion
Pressure resistant: shock pressure test is took under 1.5times of process required. Heatproof: -70~250℃
Good insulation performance and can remove static, excellent flame proof feature and can self extinction, anti-flaming, flame repellent, nice transparency even with colorful colors, good thermal insulation properties and can increase heat conduction ability.

Non-toxic and can be used in drinking water delivery.

Production technology
FRP process pipe adopt the technology of microcomputer controlled fiberglass winding, use high quality UPR(unsaturated polyester resin) as matrix(basal body), alkali-free fiberglass yarn and its forming products as reinforced material, produced to finished products by microcomputer controlled winding process technology.

Products Specifications:
ID: DN100-DN4000
Pressure: 0.1MPa, 0.25MPa, 0.4MPa, 0.6 MPa, 0.8 MPa, 1.0 MPa, 1.2 MPa, 1.4 MPa, 1.6MPa, 2.0MPa, 2.5MPa
Stiffness(N/m2): SN1250, SN2500, SN5000, SN10000
Standard effective length: 6m and 12m
Customization of FRP process pipes with special pressure, stiffness, length is available.


Applications:
Seawater desalination project,
Water delivery project,
Nuclear power plant water delivery project,
Thermalelectric plant circulating cooling water
Municipal water supply, drainage and rainwater engineering project,
Municipal sewage management project,
Agricultural irrigation,
Chemical pipeline,
Oilfield sewage pipeline

Production Standards:
JC/T552-1994(fiberglass winding and reinforced heat convertible resin pressure pipe) GB/T21238-2007(fiberglass reinforced plastic with sand inclusion doped pipe)
ANSI/AWWA C-950 America Water Works Association(fiberglass reinforced plastic pressure pipeline)
AWWA M45 (Fiber glass pipe design
ISO10639:2004(Pressure and Non-pressure water supply plastic pipe system-fiberglass reinforced thermosetting plastic-UPR-pipe)
GB50332-2002(Design standards of water supply and sewage works pipes)
CECS190-2005(Design standards of water supply and sewage works burial fiberglass reinforced plastic with sand doped inclusion pipe


Product Image

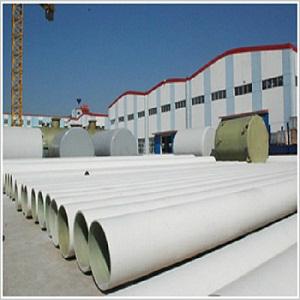

FRP process pipes 1
Img 1

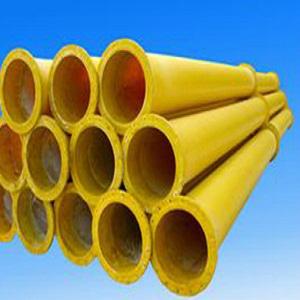

FRP process pipes 2
Img 2
FRP process pipes 3
Img 3
FRP process pipes 4
Img 4
FRP process pipes 5
Img 5
