| Model: | - |
|---|---|
| Brand: | AOL |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | double heads laser , laser cuttingmachine , cnc laser machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:21 Feb, 2017 |
double laser heads cutting machine with double efficiency Features:
The structure of the machine is more compact and more reasonable, the electric performance steady; The type of the machine has double efficacy of high-speed engraving and high-speed cutting, the precision is high.
The import guide rail equipped with the machine runs steadily, the depth of engraving can be adjusted automatically. The scrap left after engraving is only a little; The verge after cutting has no burr and does not need to polish.
It is integrates engraving, image scanning, grade carve, cutting.
|
Machine Description: |
double laser heads cutting machine with double efficiency |
|
Working size |
1300*900mm |
|
Laser power: |
80W/100W/130W/150W |
|
Laser tube: |
Co2 sealed glass laser tube |
|
Engraving speed |
0-60000mm/min |
|
Cutting speed: |
0-30000mm/min |
|
Repeating location: |
+_0.01mm. |
|
Resolution ratio: |
0.025mm |
|
Minimum shaping character: |
Letters 1 x 1mm |
|
Software: |
Laser cut ,Coreldraw and Phototshop etc |
|
Support graphic format: |
DST, PLT, BMP, DXF etc |
|
Cooling system: |
water-cooling and protection system |
|
Exhaust system |
exhaust fan and air assist |
|
Offline work: |
support |
|
Operating temperature: |
5-40 degree |
|
Operating humidity: |
5%-95% free of condensed water |
|
Gross weight: |
500Kgs |
|
Package size: |
2420mm*1760mm*1450mm |
double laser heads cutting machine with double efficiency Accessories: necessary attachment like : water cooling , exhaust fan , air assist, software, English friendly user manual, data cable and other free parts
double laser heads cutting machine with double efficiency Optional parts: Rotary device,Auto up-down work table,air compressor, red dot.auto focus function, CCD system, filter, servo motor etc.
double laser heads cutting machine with double efficiency Applicable Industries:

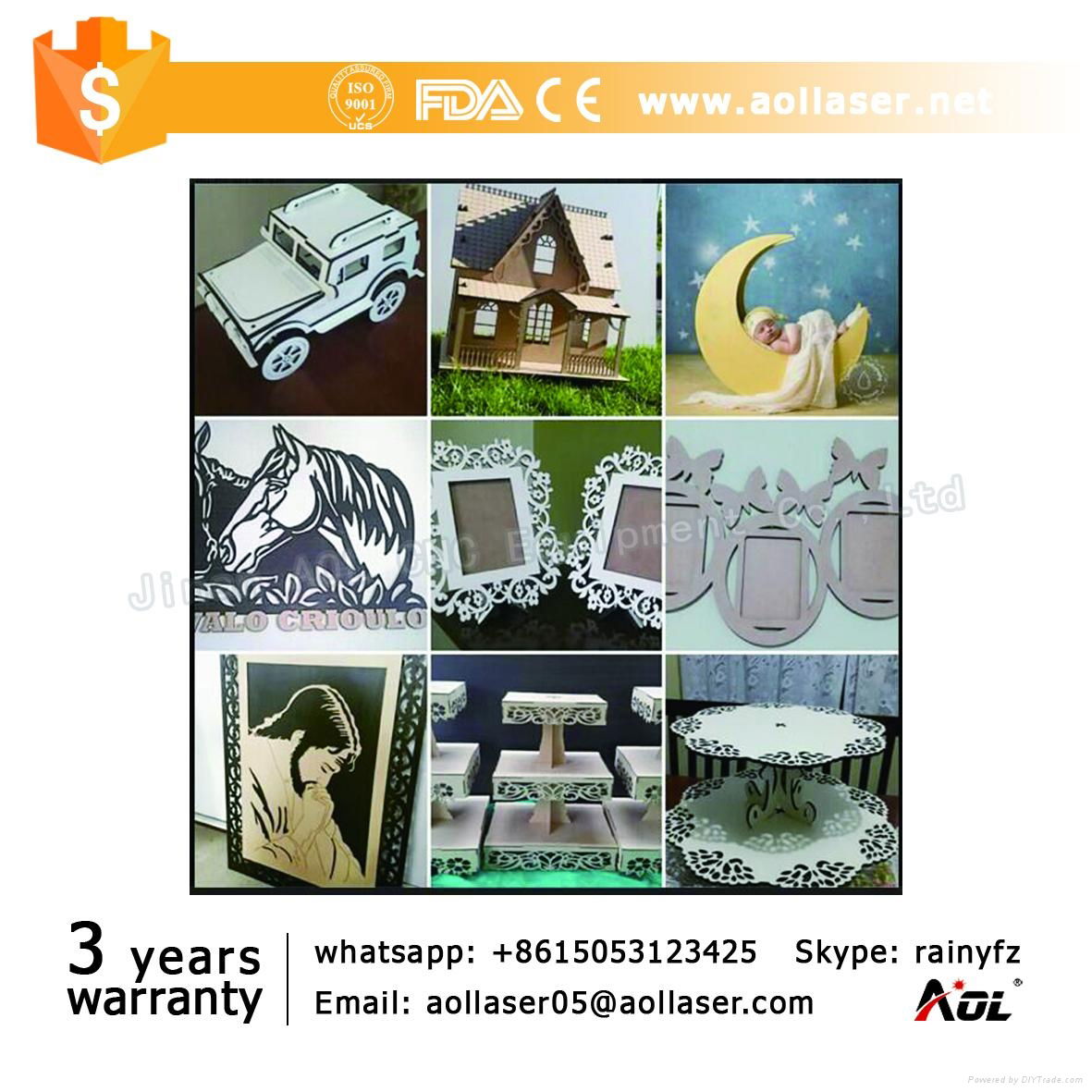

Fabric cutting,Garments sampling,large format tailoring,leather industry, shoe making, decoration,furniture,advertisement,packing and printing,molding,craft gifts industries,etc.
double laser heads cutting machine with double efficiency Applicable Materials:
fabric,leather,paper,bamboo ware,organic glass,glass,thin film,canvas,etc.
double laser heads cutting machine with double efficiency Guarantee & After Sales Service:
1. 3 year for the whole machine.
2. 8-10 months for laser tuber,lens and mirror 3 months.
3. Detailed manual and video to guide the uses how to use the machine and maintenance, also supply the specification settings for the speed and power to engrave or cut various material.
4. important parts like the control card, we need you send the broken one to us and we reback you a new one in warranty period.
5. If you meet the problems, we can solve it with pictures, videos etc, communication online/calling, if necessary, offer door-door service. But you should pay some fees like tickets etc.
