| Model: | - |
|---|---|
| Brand: | AOL |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | fabric laser machine , auto feed laser , laser cuttingmachine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:21 Feb, 2017 |

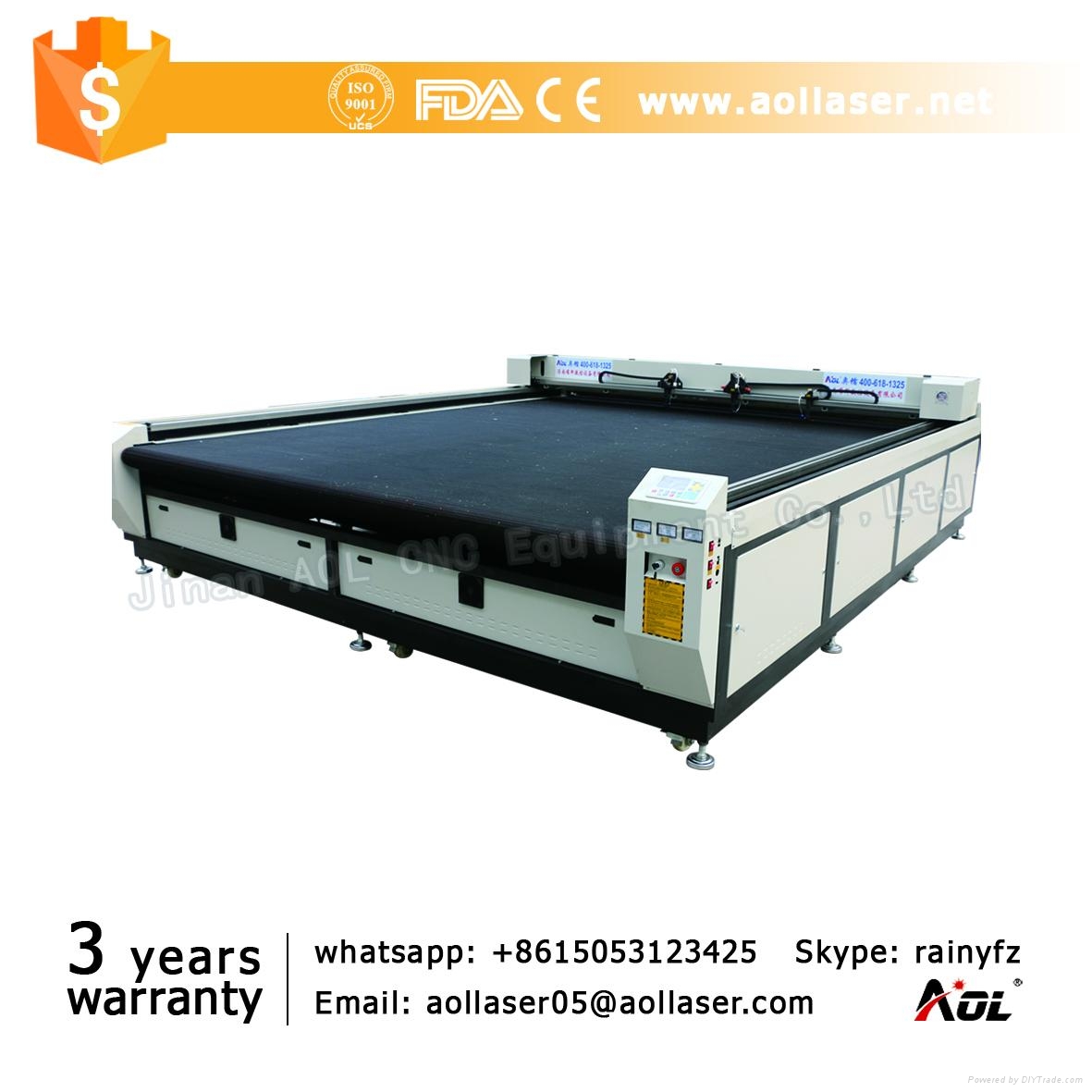

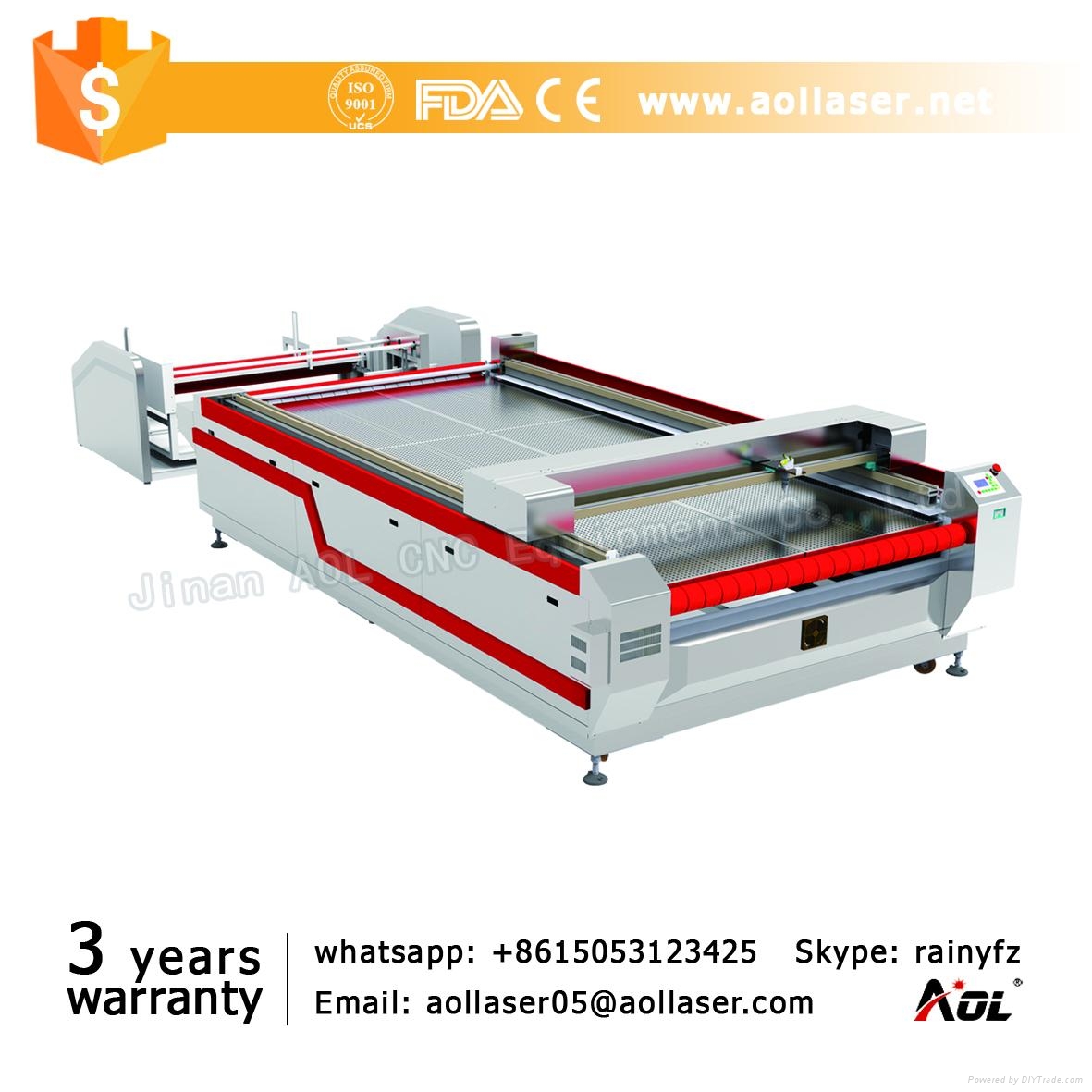

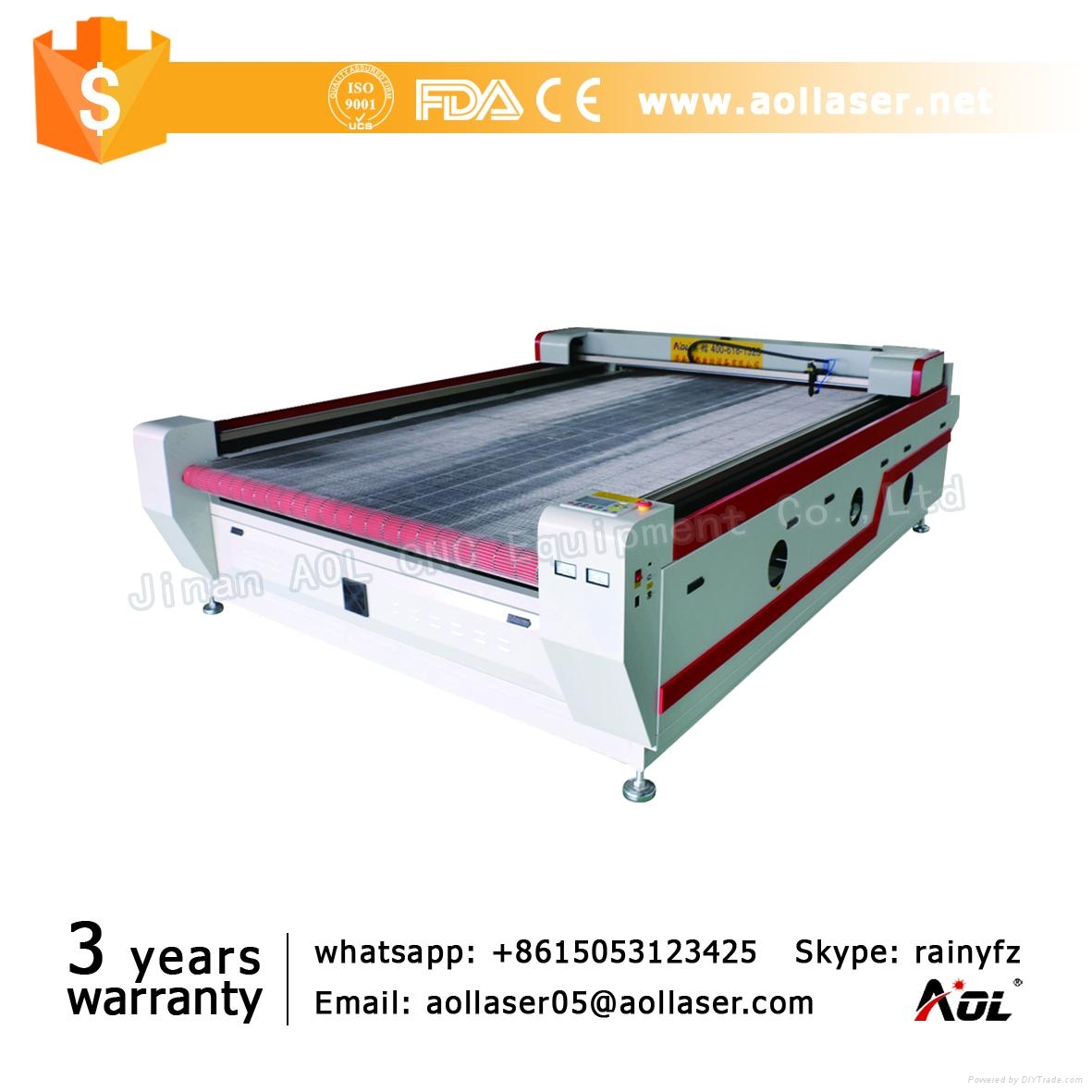

CNC conveyor auto feeding fabric laser cutting machine Features
The rolled materials are loaded to table automatically.
Unique design: rotating table, auto-feeder at back and materials holder at front.
Long and strictly tested main parts ensure stability and long life of the machines.
CO2 glass inner cavity sealing type laser and continuous circular water cooling system are utilized.
The imported liner guide rail and high speed stepping motor, as well as integral steel frame structure are used to ensure the high precision and great stability of this laser flat cutting machine.
High speed and precision;the feature of cutting is smooth,fine; with tighten working range without material waste which can save cost.
Adopt DSP control system, and moves smoothly. With modularized and unified design and installment, it has the better ability of anti-interference, so it is easy to inspect and replace the spare parts.
Easily moving universal wheel
CNC conveyor auto feeding fabric laser cutting machine Technical parameter
|
Model |
1625 |
|
Laser type |
Sealed CO2 laser tube |
|
Laser power |
60W,80W,100W,130W,150W (optional) |
|
Engraving area |
1600*2500mm |
|
Engraving speed |
0-24,000mm/min |
|
Resetting position accuracy |
+_0.1mm |
|
Working voltage |
AC110-220V +_10%.50-60HZ |
|
Power |
Max 1,500W |
|
Operating temperature |
0-45 degree |
|
Operating humidity |
5-95% |
|
Minimum shaping character |
English 1*1mm |
|
Graphic format supported |
BMP, PLT, DST, DXF, and AI |
|
Driving system |
Stepper |
|
Cooling mode |
Water-cooling and protection system |
|
Auxiliary equipment |
Exhaust-fan, air-exhaust pipe |
|
Controlling software |
DSP control system |
|
Compatible software |
Coreldraw auto CAD photoshop |
CNC conveyor auto feeding fabric laser cutting machine Machine condition
1. Every machine need to be passed 48 hours up to 72 hours operational testing before send out.
2. Machine warranty : 2 year .
3. Laser tube Warranty :
Normal laser tube warranty is 3-6 months,working time is about 1500-3000 working hours.
RECI brand laser tube warranty is 8-10 months,working time is about 8000-10000 working hours.
4. USA mirror and lens 3 month, if keep clean all the time, it will use a long-term
5. Manual and video with the machine to teach client the install and operation methods
CNC conveyor auto feeding fabric laser cutting machine After sale service
give professional reply within 24 hours technology support by mail and MSN, Skype, Yahoo online.
User friendly English manual and Video CD for machine operation and maintain.
keep your mail completely private.
CNC conveyor auto feeding fabric laser cutting machine Applicable materials
Wood, bamboo, jade, ceramic, textile, garments, crystal, plastic, Color plates, Plexiglas, glass, acrylic, wood, paper, leather, cloth, rubber, marble, granite, tiles, shells and other non-metallic materials.
CNC conveyor auto feeding fabric laser cutting machine Applicable industries
Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries
