Model: | LCT |
---|---|
Brand: | LTD |
Origin: | Made In China |
Category: | Electronics & Electricity / Insulation Material |
Label: | thermal tape , acrylic tape , thermal pad |
Price: |
US $1.5
/ pc
|
Min. Order: | 10 pc |
LCT series is a kind of thermal acrylic tape applied in the bond between heat sink and other power consumption semiconductor, the adhesive is in the nature of strong bonding strength and low thermal resistance, which can replace thermal silicon grease and mechanical fixation effectively .
Features & benefits:
Typical applications:
Physical properties:
test item | unit | LCT test value |
color | white | |
thickness | mm | 0.15~0.5 |
tensile strength | g/inch2 | 1200 |
contimuous use tenmp | ℃ | -20~180 |
breakdown voltage | KV/mm | 5 |
conductivity | W/m-k | 1.5 |

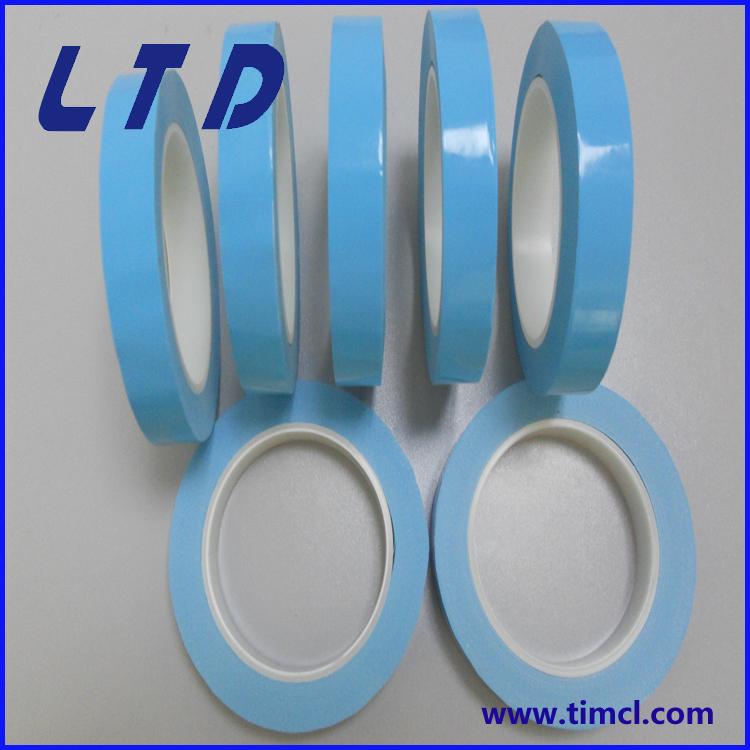

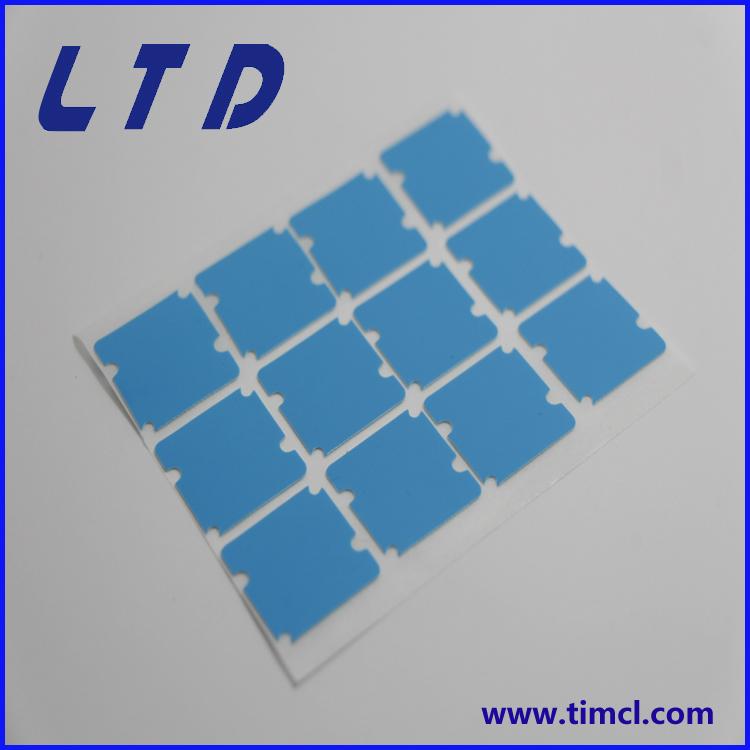

Configurations available: standard roll form of1030mm*50M, customized sheet, die-cut form.
