| Model: | 4H430-15 |
|---|---|
| Brand: | CONTROL VALVE |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | hand pull valve , solenoid valve , control valve |
| Price: |
US $6
/ pc
|
| Min. Order: | 50 pc |
| Last Online:28 Oct, 2016 |
Quick Details
| Standard or Nonstandard: |
Standard |
Structure: |
Control |
Pressure: |
Medium Pressure |
| Power: |
Pneumatic |
Material: |
Aluminum |
Temperature of Media: |
Medium Temperature |
| Media: |
Air |
Port Size: |
G1/2 |
Place of Origin: |
Zhejiang, China (Mainland) |
| Model Number: |
4H430-15 |
Brand Name: |
SDPC |
Application: |
General |
| Position number: |
2/3 position 5 way |
Packaging & Delivery
| Packaging Details: | SDPC carton |
| Delivery Detail: | 20-30 work days |

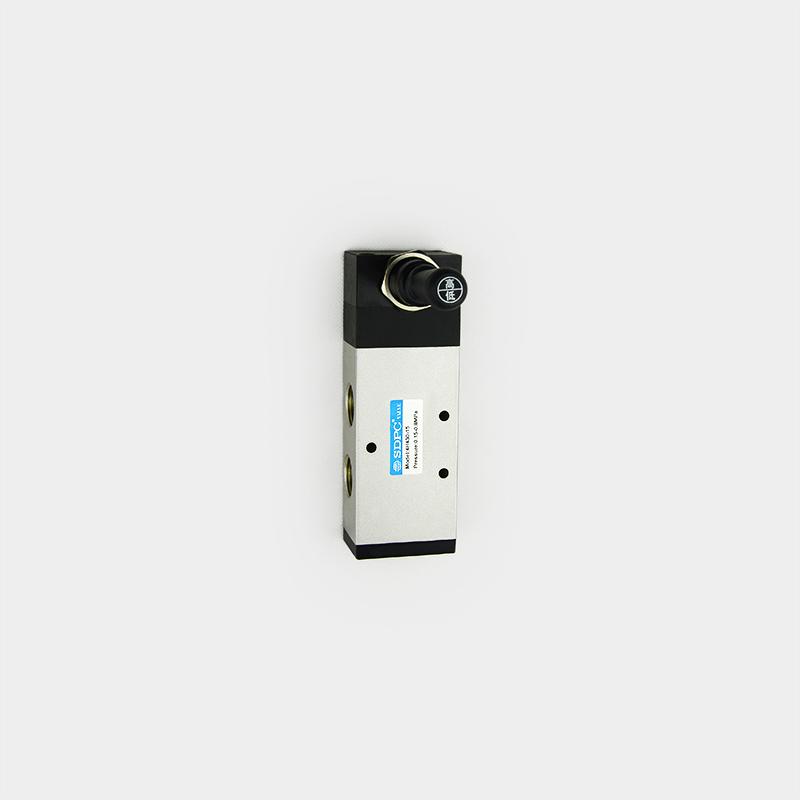

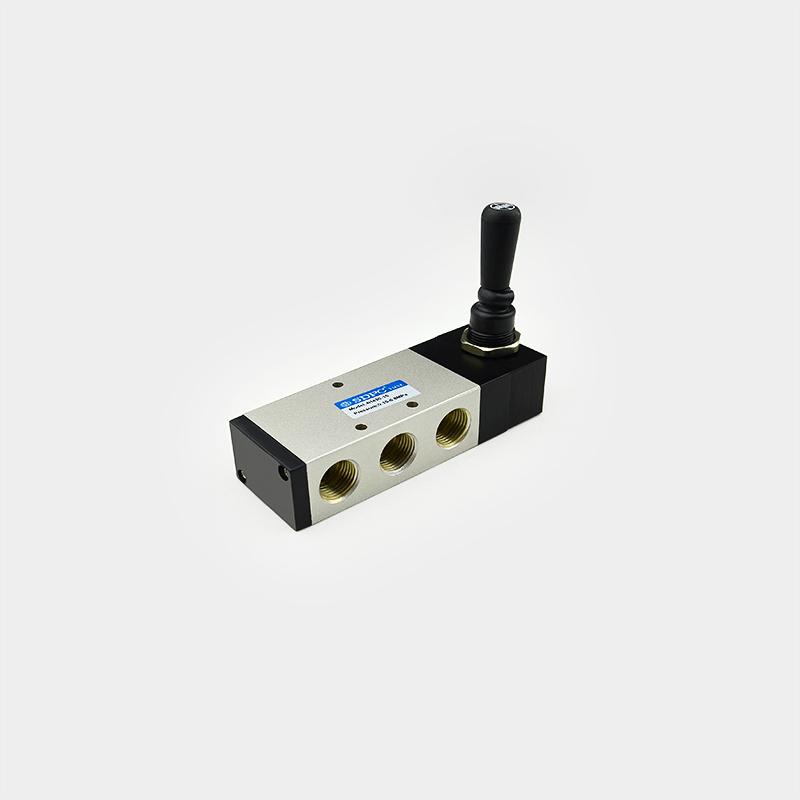

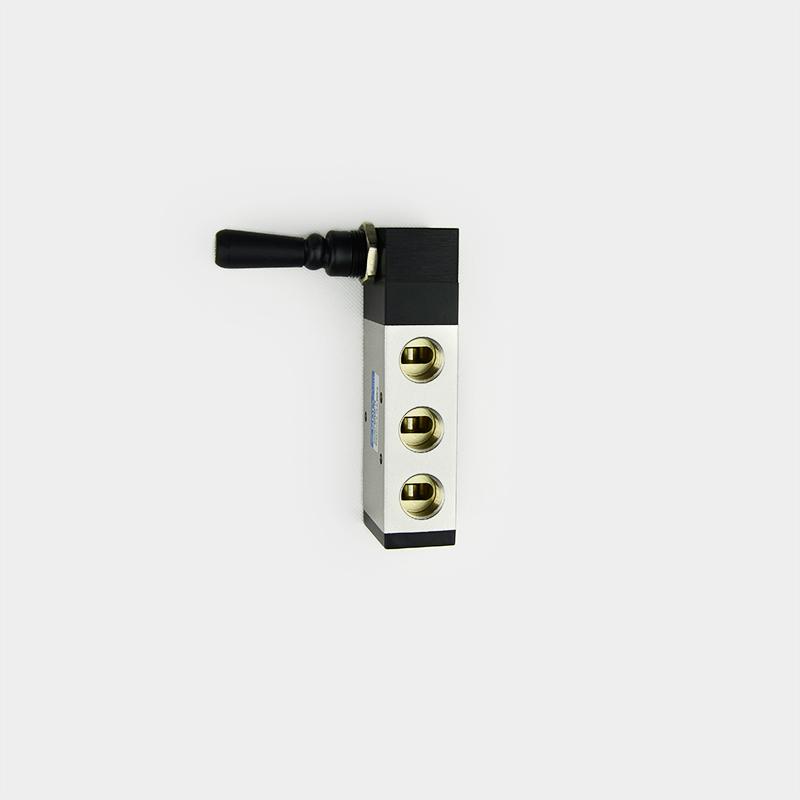

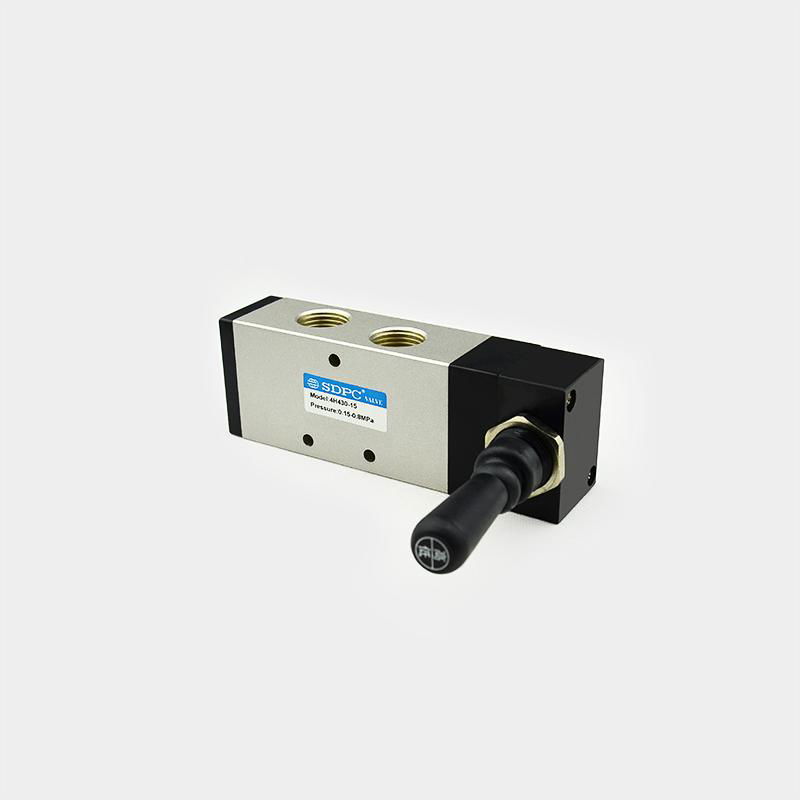

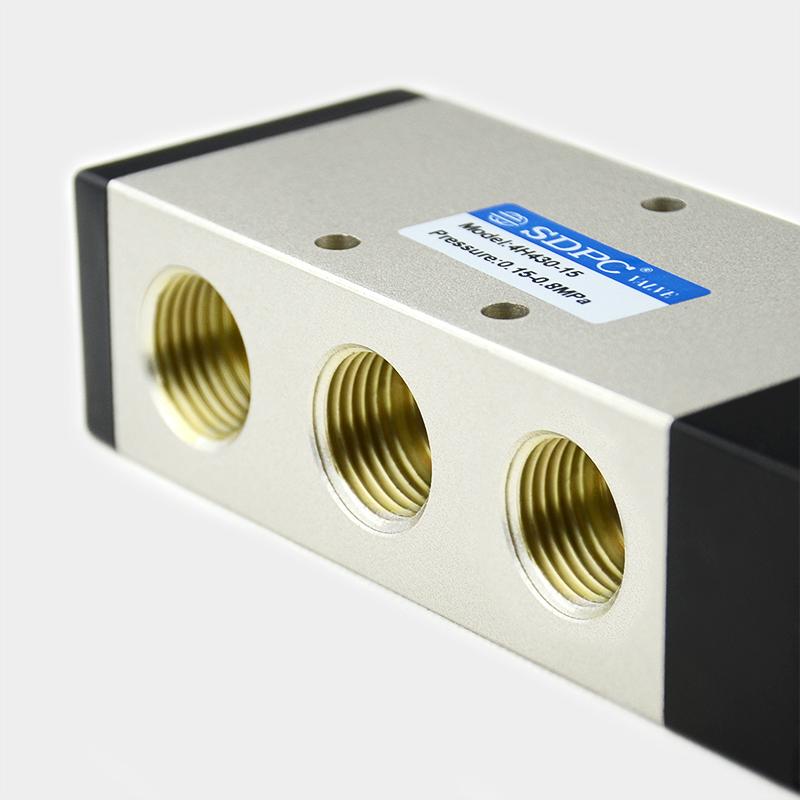

4H Series Control Valve of Hand-pull valve
| Type | 4H210-06 | 4H210-08 | 4H230-08 | 4H310-08 | 4H310-10 | 4H330-10 | 4H410-15 | 4H430-15 |
| Position number | 2 position 5 way |
3 position 5 way |
2 position 5 way |
3 position 5 way |
2 position 5 way |
3 position 5 way | ||
| Fluid | Compressed air | |||||||
| Acting type | Directly | |||||||
| Port size |
input=output= exhausted=G1/8" |
input=output=G1/4" exhausted=G1/8" |
input=output= exhausted=G1/4" |
input=output=G3/8" exhausted=G1/4" |
input=output= exhausted=G1/2" |
|||
| Ambient temperature | -5~60 ℃ | |||||||
| Operating pressure range | 0.2~0.8MPa | |||||||
