Model: | MS |
---|---|
Brand: | Cylinder |
Origin: | Made In China |
Category: | Electronics & Electricity / Other Electrical & Electronic |
Label: | cylinder , air cylinder , stainless cylinder |
Price: |
US $2
/ pc
|
Min. Order: | 100 pc |
Last Online:28 Oct, 2016 |
Quick Details
Standard or Nonstandard: |
Standard |
Structure: |
Piston Cylinder |
Power: |
Pneumatic |
Body Material: |
Aluminum |
Maximum Stroke: |
500 |
Shaft Diameter: |
6 8 10 mm |
Place of Origin: |
Zhejiang, China (Mainland) |
Model Number: |
MS |
Brand Name: |
SDPC |
Motion: |
Double acting |
Mode: |
12 16 20 25 32 40 |
Fluid: |
Compressed air |
Operating pressure range: |
0.1~1MPa |
Operating speed: |
50~500mm/sec |
Ambient temperature: |
-10~70℃ |
Packaging & Delivery
Packaging Details: | SDPC Carton or OEM |
Delivery Detail: | 20~30 work days |

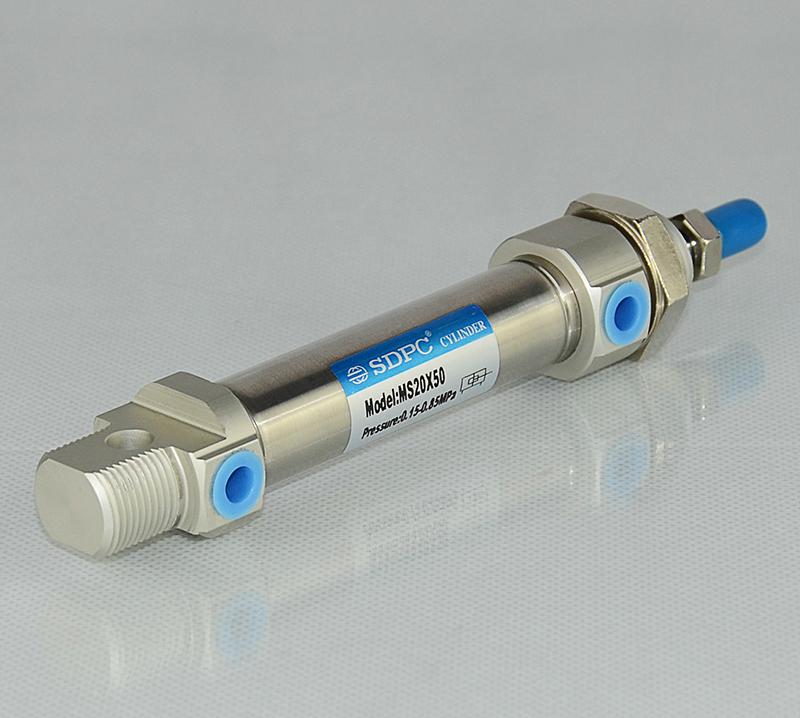

MS Series Stainless Steel Cylinder
Specification:
Mode | 12 | 16 | 20 | 25 | 32 | 40 | ||
Motion | Double acting | |||||||
Series | MS | |||||||
Fluid | Compressed air | |||||||
Operating pressure range | 0.1~1MPa | |||||||
Operating speed | 50~500mm/sec | |||||||
Ambient temperature | -10~70℃ | |||||||
Port size | M5 | 1/8" |
Packaging & Shipping:
SDPC CARTON or BLANK BOX WITH CARTON or OEM PACKING.
The port of shipment is according to you or Ningbo port.
The delivery time is depend on your quantity.
