| Model: | UM52-UM150 |
|---|---|
| Brand: | UM |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | chamfering machine , double head chamfer , chamfer |
| Price: |
US $1200
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:10 Jul, 2023 |
Technical Parameter
|
Type |
UM52 |
UM80 |
UM110 |
UM150 |
|
Max. O.D. Tube |
φ15~φ52 |
φ32~φ80 |
φ50~φ110 |
φ60~φ150 |
|
Max. O.D. Rod |
φ5~φ15 |
φ9~φ50 |
φ9~φ50 |
φ20~φ80 |
|
Standard Parts |
Knife and Clamp Kit |
Knife and Clamp Kit |
Knife and Clamp Kit |
Knife and Clamp Kit |
|
Optional |
Knife and Clamp Kit(Special) |
Knife and Clamp Kit(Special) |
Knife and Clamp Kit(Special) |
Knife and Clamp Kit(Special) |
|
Working Speed |
3s |
4s |
4s |
8s |
|
Motor Power |
1.5 KW |
3 KW |
3 KW |
4 KW |
|
Spindle Speed |
1100RPM |
720/900RPM |
720/900RPM |
450/720RPM |
|
Air Pressure |
6~8 kg/cm2(120ML/MIN) |
6~8 kg/cm2(120ML/MIN) |
6~8 kg/cm2(120ML/MIN) |
-- |
|
Hydraulic Power |
-- |
-- |
-- |
1.5 KW |
|
Hydraulic Pressure |
-- |
-- |
-- |
40~70 KG |
|
Size(mm) |
650x750x1000 |
750x900x1050 |
800x950x1100 |
1300x1150x1500 |
|
Weight |
150 KG |
270 KG |
300 KG |
1200 KG |
PS: O.D.: Outside Diameter.
The Knife and Clamping Device(Kit) can made to order according to the Customer's requirement.
Global warranty China top manufacturer double head Chamfering Machine
Feature
1: Semi-automatic metal chamfering machine with adjustable Knife;
2: Feeding tube by manual, blade forward and back automatically, due to the high speed, the production capacity increase double more;
3: This machine is good at chamfering inner and out angle of pipe or rod, chamfering and debarring can be finished at one time in fast speed and accuracy;
4: Clamping device and knife holder are designed precision and accurately, which ensure the center line of workpiece and knife holder keep at the same level;
5: Knife holder as designed specially and the blade is normalizing which enable adjusting knife simply.
Global warranty China top manufacturer double head Chamfering Machine

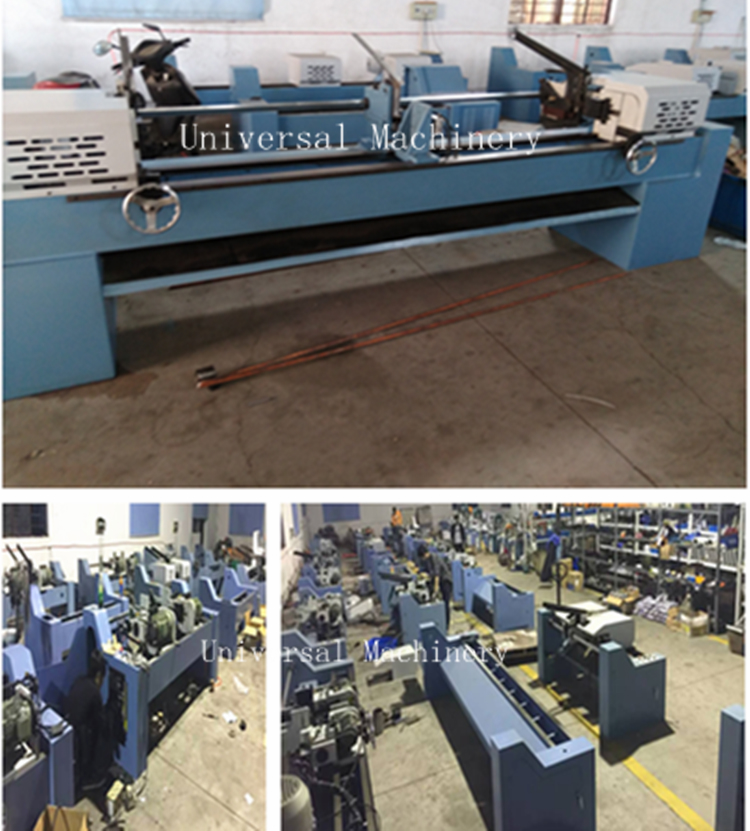

Working Shop
Global warranty China top manufacturer double head Chamfering Machine
Customer Visiting
Global warranty China top manufacturer double head Chamfering Machine
Feeder
Package
Global warranty China top manufacturer double head Chamfering Machine
Loading
Global warranty China top manufacturer double head Chamfering Machine
