Global warranty China top suppliers CNC automatic Pipe Bending Machine

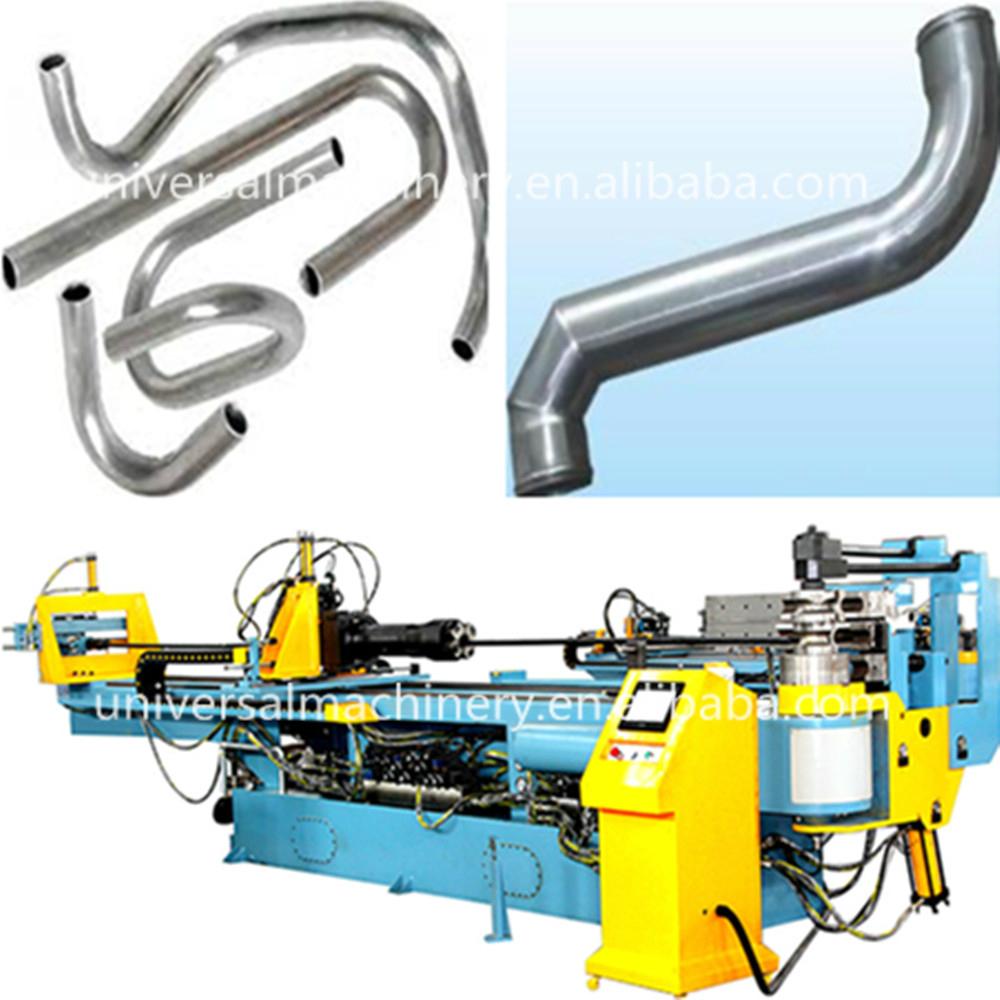

Global warranty China top suppliers CNC automatic Pipe Bending Machine 1

Global warranty China top suppliers CNC automatic Pipe Bending Machine 2

Model:	UM-115CNC
Brand:	UM
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Machine Tool
Label:	pipe bending machine , bending machine , pipe bending
Price:	US $26888 / pc
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Zhangjiagang City Universal Machinery Manufacturer Co., Ltd

Free MemberJiang Su - China

Live Chat:

Last Online:10 Jul, 2023

Product Description

Techinical Parameter

Item	Name		Data
1	Max bending capacity		Φ115 mm×10 mm
2	Max bending radius		R380mm
			Can made according to customer’s requirement
3	Min bending radius		R50mm
4	Max feeding length		3800mm
			Can made according to customer’s requirement
5	Max bending degree		190 Degree
6	Control Panel		IPC
			(more advanced than PLC)
7	Touch Screen		Taiwan Smart Face
8	Bending unit		16 Pieces
9	Working speed	Bending speed	45 Deg/sec
		Rotary speed	120 Deg/sec
		Feeding speed	800 mm/sec
10	Accuracy	Feeding	±0.05 mm
		Rotary	±0.05 Degree
		Bending	±0.05 Degree
11	Rotary Pipe		By Servo Motor Power 2 KW
			Japan Mitsubishi
12	Data input		1.Coordinate ( X, Y, Z )
			2.Working value ( Y, B, C )
13	Feeding Pipe		By Servo Motor Power 3.5 KW
			Japan Mitsubishi
14	Bending Pipe		By Servo Motor
15	Oil motor power		22 Kw
16	Max storage units		1000 Group
17	Max pressure		14 MPa
18	Hydraulic control system		Magnetic exchange valve
			Japan Yuken
19	Oil tank		450 L
20	Machine weight		8000 Kg
21	Machine size		5800×1400×1300 mm

Global warranty China top suppliers CNC Automatic Pipe Bending Machine

Feature

1. Bend-arm (C-axis) by electric. Clamp die by hydraulic, Pressure die by hydraulic.

2. Carriage (Y-axis) by servo motor. Collet (B-axis) : rotation by servo motor, grip by hydraulic.

3. Anticipated mandrel retraction unit. Standing pedestal, serves emergency stop and remote control.

4. Water-cooling system. Diagnosis error immediately.

5. Foot pedal for safe start.

6. It is fully automatic pipe bender, with PC control system (more advanced than PLC), two servo for rotary, feeding.

7. Touch screen panel display English(can be any language), have different bending degree prefabricate, dialogue operation, can choose manual,semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.Multi axles working simultaneously.

8. Bending pipe — Automatic. Rotating pipe — Automatic. Feeding pipe — Automatic.

9. One key back up of programs for USB or disk storage or through INTERNET. Management and storage of bend data and tools is done in standard text files on the hard disk of the control PC. In case of requirement it is also possible to integrate the PC into bending machine. Therefore an Ethernet adapter is included. The number of tools and products is practically unlimited. Product and tool files can easily be edited (also on a separate PC) and printed out.

10. Security code for the protection the data setting and selected operation features.

11. To access to the history bending setting data to the facilitate study of malfunction with one set of tooling.

12. All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.

13. CNC fully auto, have cubical space bending equipment, loading the whole bending process is automatic.

14. The electric pipe bender is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the pipe processing.

15. PC assorted with touch screen display, capable of 3D bending simulation, 3D preview and collision prevention.

16. CE, ISO9001 Certification.
