side loader electric reach stacker

Model:TD
Brand:NOELIFT
Origin:Made In China
Category:Transportation / Logistics / Forklifts, Pallet Trucks
Label:forklift , pallet truck , pallet stacker
Price: US $1111 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Hangzhou Noelift Equipment Co., Ltd

Free MemberZhe Jiang - China
Live Chat:Last Online:17 Oct, 2016

Product Description

ELECTRIC SIDE LOADING REACH TRUCK FEATURES



1. Optional capacity: 1.5tons, 2tons. Optional lift height: 3000-7200mm.

2. Environment-Friendly:

Low noise and non-pollution electricity enegy adopted ensure Noelift electric side loading reach truck Environment-Friendly.

3. Cost-Saving:

Brushless AC driving motor, side-pull battery, ensure 30% energy saving, lower maintenance cost. American imported CURTIS controller, quick reaction, strong ability of accerleration and deceleration control, ensure equipment longer service life.

4. Realibility:

4.1: Side move forward, equipment forks facing racks save the operation space. Special body design suitable for carrying long materials, such as long steel tube, wood, aluminium and so on.

4.2: Reach cylinder which make use of vertical design, will be more steady when operating.

4.3: Side-pull design battery, convenient for replacement, maintenance, improve efficiency.

5. Strict Quality Inspection System:

ISO9001-2008, CE approved.



ELECTRIC SIDE LOADING REACH TRUCK SPECIFICATIONS









Manufacturer/brand

NOELIFT

Model

TD15

TD20

Power type

Battery

Battery

Loading capacity

1500kg

2000kg

Loading center

500mm

500mm

Tire type front/rear

Solid PU/Solid PU

Solid PU/Solid PU

Lifting height

3000mm

3000mm

Mast height(closed)

2104mm

2094mm

Overhead guard height

2250mm

2330mm

Overall length

2450mm

2580mm

Overall width

1830mm

2000mm

Fork size

1070×100×35mm

1070×100×45mm

Turning radius

2440mm

2575mm

Driving motor type

AC

AC

Driving motor power

5.5kw

5.5kw

Lifting motor type

DC

DC

Lifitng motor power

6.3kw

7.5kw

Battery

48V/300Ah

48V/400Ah











HIGH MAST PARAMETERS







Mast

Full free

Lifting height

Lowered height ofmast

Free lifting height

Loading capacity@MAX. height

TD15

TD20

Duplex mast

NO

3500mm

2350mm

100mm

1200kg

1800kg

NO

4000mm

2600mm

100mm

1000kg

1500kg

Triplex mast

YES

4500mm

2190mm

1540mm

950kg

1400kg

YES

5000mm

2350mm

1740mm

900kg

1300kg

YES

5500mm

2520mm

1900mm

800kg

1100kg

YES

6000mm

2690kg

2090mm

700kg

1000kg

YES

6500mm

2850mm

2350mm

600kg

900kg

YES

70000mm

3020mm

2530mm

550kg

800kg

YES

7200mm

3090mm

2600mm

500kg

750kg

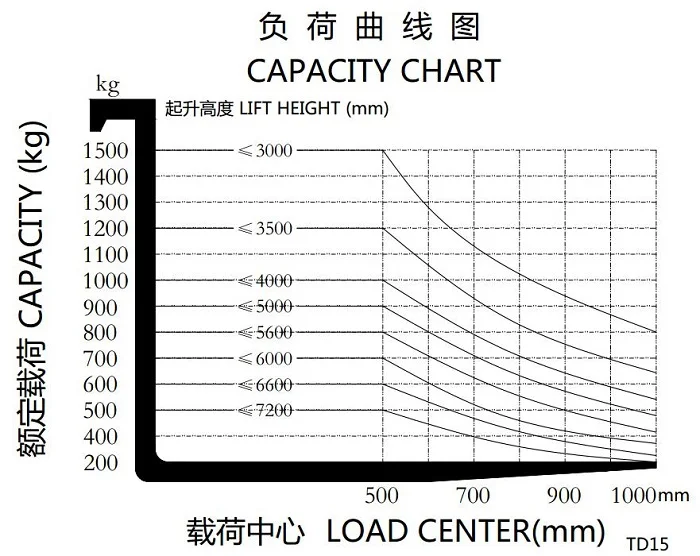

CAPACITY CHART

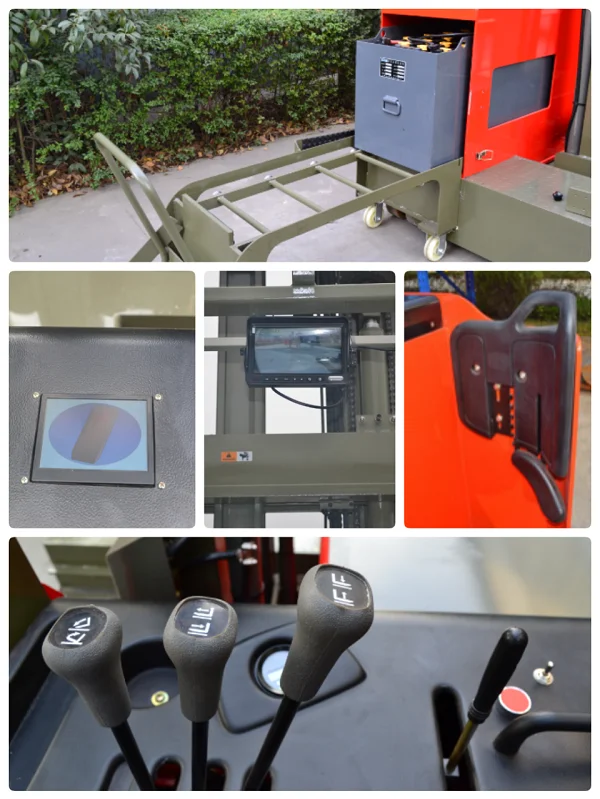

ELECTRIC SIDE LOADING REACH TRUCK DETAILS

Packaging & Shipping

  International packing way, packed with thick plastic film for side load forklift truck



Company Information



Our Services



1. One-stop solution service.

2. Customized-service all accepted

3. Customer service is in time.

4, Warranty: 12 months.

Any questions please feel freely to contact me, I will reply asap!

Noelift would love to provide most professional service to you!

FAQ



 Hangzhou Noelift Equipment CO,. LTD.

Paper Liu  Mobile/ Whatsapp : 86-15858829023
Skype ID : paper noelift   Tel / Fax: 86-571 -87620550
Email:sales02 at noelift.com Add: No.196 of Shenhua Road, Xihu District, Zhejiang, China




Product Image

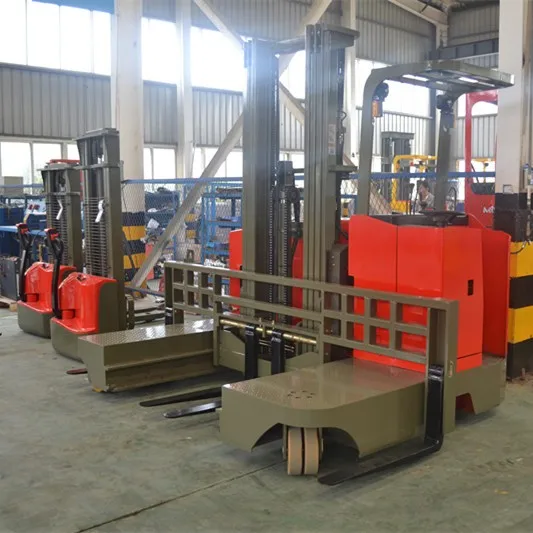

side loader electric reach stacker 1
Img 1

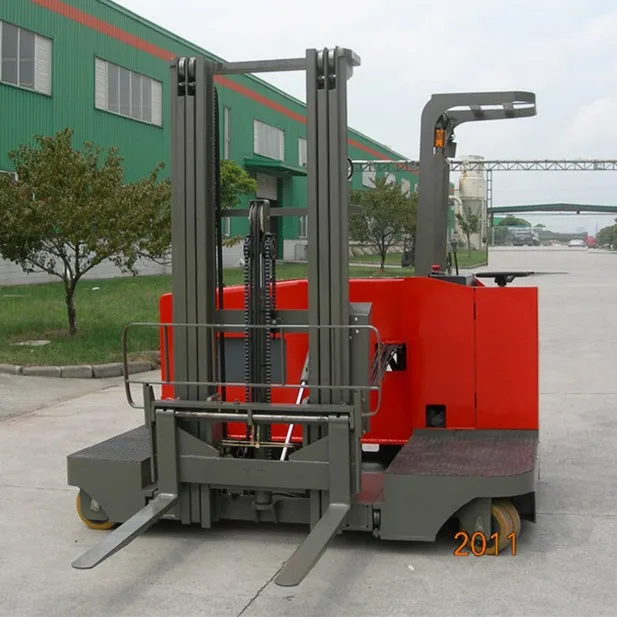

side loader electric reach stacker 2
Img 2
side loader electric reach stacker 3
Img 3

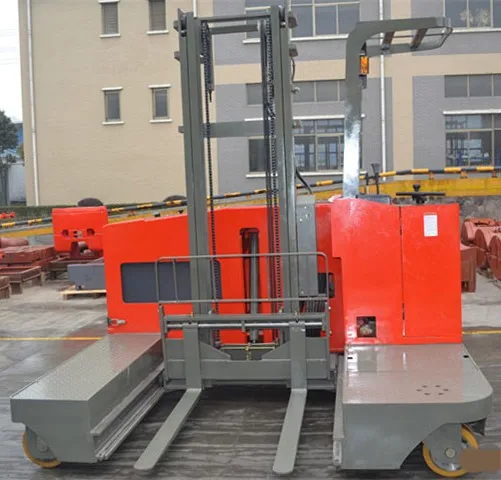

side loader electric reach stacker 4
Img 4

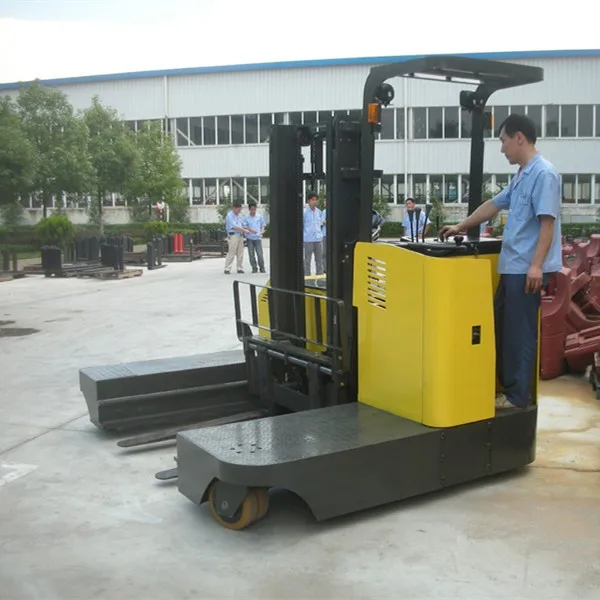

side loader electric reach stacker 5
