One color cylinder pad printer

Model:P1-804S
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:cylinderpad printer , pad printing machine , round pad print
Price: US $2086 / pic
Min. Order:1 pic
Inquire Now Add to Basket

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:19 Aug, 2022

Product Description

One color cylinder pad printer //Structure

Working table

shuttle-style  working table , suitable for cylinder pad printing

Ink supply system

Open inkwell-type system

Plate type

10mm Thick steel plate.

Pad dropping control

Simple-cylinder , simultaneously pressing

One color cylinder pad printer//Usage and characters

Guide

  • With Open inkwell to store ink,  ink adjustment more convenient, more suitable for striking observation.
  • With coin aluminum structure ensure more stabilization and long life.
  • Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
  • Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
  • Pneumatic components million times life verification, circuit boards and integrated circuits using the scale of Taiwan's famous full factory inspection;
  • Self-balanced scraping ink technology, squeegee clean, easy to replace
  • Rubber pad keeping press with products for cylinder pad printing.


Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

One color cylinder pad printer //Parameter

Technical parameters

P1-404S

  • Plate area:100×100mm;
  • Table area:200×125mm;
  • Max printing speed:500pcs/h;
  • Colour number:1;
  • Max Printing area: 100×50mm.
  • Products max diameter: 30mm

P1-604S

P1-804S

  • Max. plate size: 150×100mm;
  • Max. worktable area: 200×125mm;
  • Max. printing area:140×50;
  • Max. printing speed: 450pcs/h;
  • Printable color quantity:1.
  • Products diameter: 45mm
  • Max. plate size: 200×100mm;
  • Max. worktable area: 200×125mm;
  • Max. printing area: 190×50mm;
  • Max. printing speed: 450pcs/h;
  • Printable color quantity:1
  • Products max diameter: 60mm

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Outer dimension:0.74×0.36×1.38M
    Gross weight:108KG
  • Package domension:0.870×0.590×1.480M
    Gross weight:138KG
    CBM: 0.759684

H.S.Code

8443198000

Certicate

CE

One color cylinder pad printer //Advantage

Function

  • Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
  • shuttle table for suitable for cylinder objects;
  • Hand pick and place workpiece, operating more handy;
  • Microcomputer program control, the movement is more accurate and reliable;
  • Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
  • Equipped with four counters, can effectively measure the number of products;
  • Structure using die-casting aluminum, lightweight and solid.
  • Independent Rubber pad up and down stroke and speed adjustment function;
  • Open inkwell ink system, ink adjustment more convenient, more suitable for striking observation;
  • Temporary shutdown can prevent the ink to dry within the inkwell with INK function;
  • World famous pneumatic components to ensure the long service life of machine;
  • Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance;
  • Auto balanced doctor blade ensures that ink can be scraped cleanly and completely.

Product Image

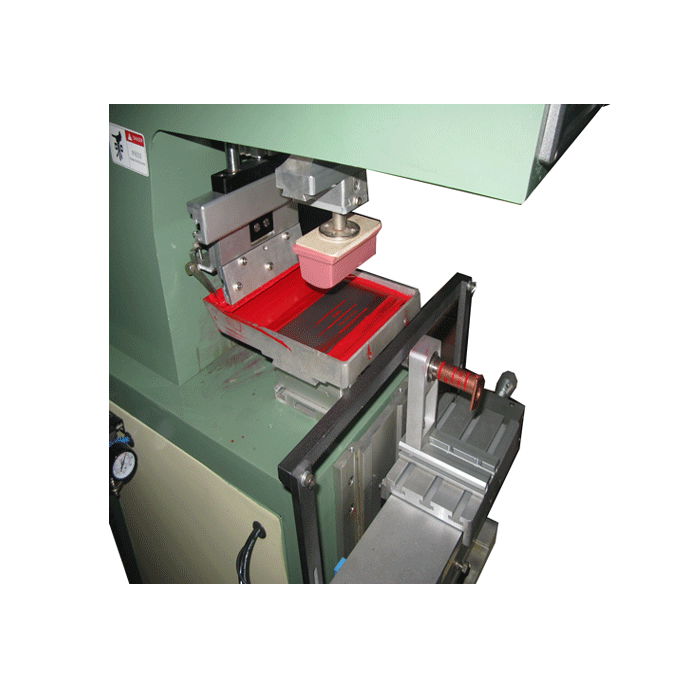

One color cylinder pad printer 1
Img 1
One color cylinder pad printer 2
Img 2
One color cylinder pad printer 3
Img 3
One color cylinder pad printer 4
Img 4
