Three Layer FIlm Blowing machine 1
  • Three Layer FIlm Blowing machine 1

Three Layer FIlm Blowing machine

Model:GD-3L45
Brand:BINHAI
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:Film blowing machine , Film machine , Film blown machine
Price: ¥68000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Ruian Binhai Plastic Packing Machinery Co.,LTD

Free MemberZhe Jiang - China
Live Chat:Last Online:28 May, 2019

Product Description

Main Technical Variables Three Layer Film Blowing machine


MODEL GD-3L45 GD-3L50 GD-3L55
SUITABLE MATERIAL

LDPE LLDPE HDPE EVA

FILM WIDTH(mm) 800-1300 800-1500 1200-2000
FILM THICKNESS (mm) 0.028-0.25 0.028-0.25 0.03-0.25
MAX.EXTRUSION OUTPUT 130kg/hr 190kg/hr 260kg/hr
EXTRUDER
SCREW DIAMETER(mm) Aφ45 Bφ50 Cφ45 Aφ50 Bφ55 Cφ50 Aφ55 Bφ65 Cφ55
SCREW L/D LENGTH

28:1

SCREW MATERIAL

SACM-645/38 CRMOALA

CYLINDER MATERIAL

SACM-645/38 CRMOALA

CYLINDER COOLING 370w×2/3 370w×2/3 550w×2/3
DRIVING MOTOR(Kw) A15+B18.5+C15 A18.5+B22+C18.5 A22+B37+C22
TEMPERATURE CONTROL 3x3 3x3 3x3
AVERAGE POWER-CONSUME(Kw) 58 70 90
TYPE OF DIE
DIE SIZE(mm) 200/250 250/300 350/400
TEMPERATURE CONTROL

4

AIR RING

1

AIR BLOWER(Kw) 5.5 7.5 11
TAKE-UPUNIT
PINCH ROLLER (DIA. WIDTH)mm φ165×1400 φ190×1600 φ 190×2100
TAKE-UP SPEED(m/min) 5-60 5-60 5-60
TAKE-UP MOTOR(Kw) 1.5 1.5 1.5
WINDING UNIT
TYPE

SURFACE FRICTION TYPE

WINDING MOTOR(Kw) 1.5 1.5 2.2
WINDING SPEED(m/min) 5-60 5-60 5-60
COVER DIMENSION(m) 7.5×5.5×6.5 8.2×5.8×7.2 9.0×6.4×8.2


OPTIONAL EQUIPMENT:1) AUTO LOADER 2) FILM SURFACE TREATER 3) DIE ROTARY DEVICE 4) AIR COMPRESSOR 5) MECHANICS SCREEN CHANGER


Price Terms:FOB
Payment Terms:TT
Packing:Film /Wooden Case
Standards Certificate:CE,ISO , SGS

Product Image

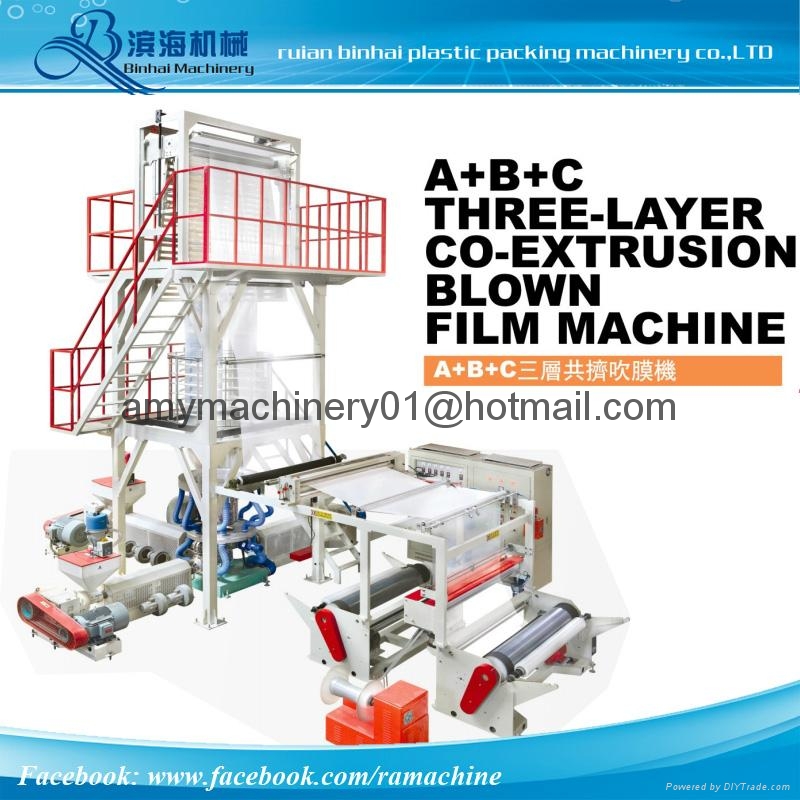

Three Layer FIlm Blowing machine 1
Img 1
