| Model: | GD/HL-50EZ |
|---|---|
| Brand: | BINHAI |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | Film blowing machine , film machinery , Blown film machine |
| Price: |
¥25000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:05 Sep, 2022 |

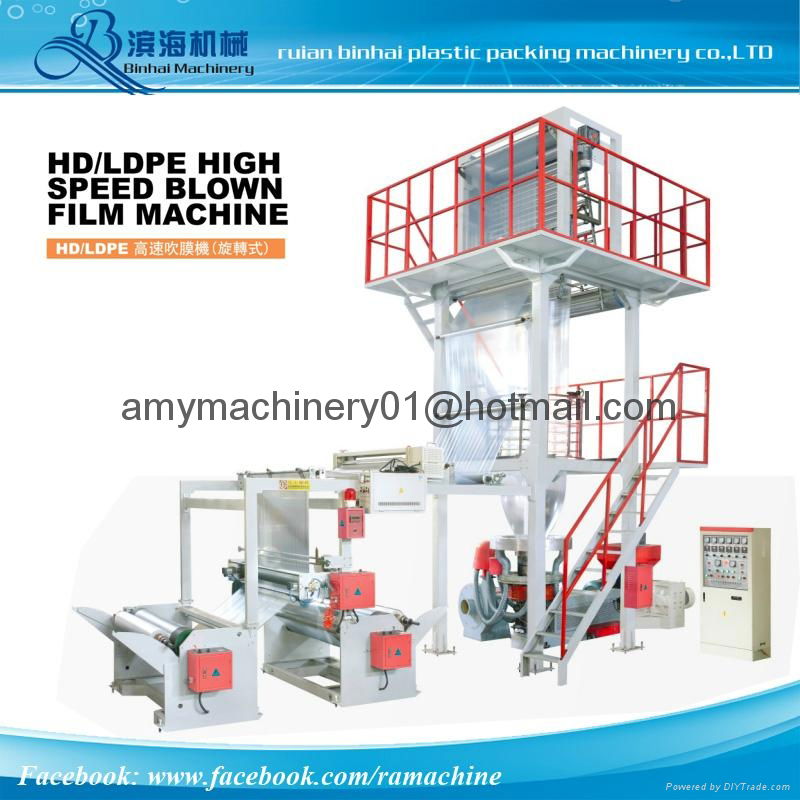

Main Technical Variables OF Rotary Head High Speed Film Blowing Machine
| MODEL | GD/HL-45EZ | GD/HL-50EZ | GD/HL-55EZ | GD/HL-65EZ |
| SUITABLE MATERIAL |
HDPE LDPE LLDPE |
|||
| FILM WIDTH(mm) | 300-600 | 300-800 | 400-1000 | 600-1300 |
| FILM THICKNESS(HD) | 0.009-0.08 | 0.009-0.08 | 0.009-0.08 | 0.01-0.08 |
| 0.02-0.11 | 0.02-0.15 | 0.02-0.15 | 0.02-0.15 | |
| MAX.EXTRUSION OUTPUT(HD) | 50kg/hr | 60kg/hr | 75kg/hr | 105kg/hr |
| 60kg/hr | 80kg/hr | 100kg/hr | 125kg/hr | |
| EXTRUDER | ||||
| SCREW DIAMETER(mm) | φ45 | φ50 | φ55 | φ65 |
| SCREW L/D LENGTH |
28:1 |
|||
| SCREW MATERIAL |
SACM-645/38 CRMOALA |
|||
| CYLINDER MATERIAL |
SACM-645/38 CRMOALA |
|||
| CYLINDER COOLING | 370w×2 | 370w×2 | 550w×2 | 550w×3 |
| DRIVING MOTOR(Kw) | 15 | 18.5 | 22 | 37 |
| TEMPERATURE CONTROL | 3 | 3 | 3 | 4 |
| AVERAGE POWER-CONSUME(Kw) | 18 | 26 | 31 | 45 |
| TYPE OF DIE | ||||
| DIE SIZE(HD) | 60/80 | 80/100 | 100/125 | 125/150 |
| 150 | 180 | 250 | 300 | |
| TEMPERATURE CONTROL |
3 |
|||
| AIR RING |
1 |
|||
| AIR BLOWER(Kw) | 2.2 | 2.2 | 3 | 5.5 |
| CENTER STEADY STICK |
2(HDPE) |
|||
| TAKE-UPUNIT | ||||
| PINCH ROLLER (DIA. WIDTH)mm | φ165×650 | φ165×850 | φ 165×1100 | φ165×1400 |
| HEIGHT ADJUSTABLE TYPE |
700mm |
|||
| TAKE-UP SPEED(m/min) | 10-80 | 10-80 | 10-80 | 10-80 |
| TAKE-UP MOTOR(Kw) | 0.75 | 1.5 | 1.5 | 1.5 |
| WINDING UNIT | ||||
| TYPE |
SURFACE FRICTION TYPE |
|||
| WINDING MOTOR(N.m) | 5 | 10 | 10 | 16 |
| WINDING SPEED(m/min) | 10-80 | 10-80 | 10-80 | 10-80 |
| COVER DIMENSION(m) | 5.0×2.0×4.1 | 5.0×2.2×4.5 | 5.5×2.5×5.2 | 5.8×2.8×6.5 |
|
OPTIONAL EQUIPMENT：1) AUTO LOADER 2) EMBOSSING ROLLER 3) FILM SURFACE TREATER 4) DIE ROTARY DEVICE 5) AIR COMPRESSOR 6) MECHANICS SCREEN CHANGER |
| Price Terms: | FOB |
|---|---|
| Payment Terms: | TT |
| Packing: | Film /Wooden Case |
| Standards Certificate: | CE,ISO , SGS |
