Application

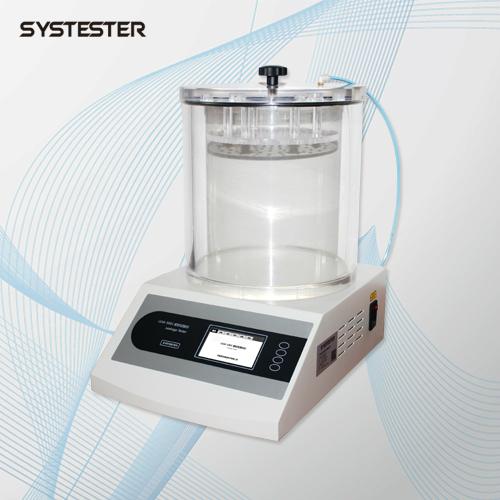

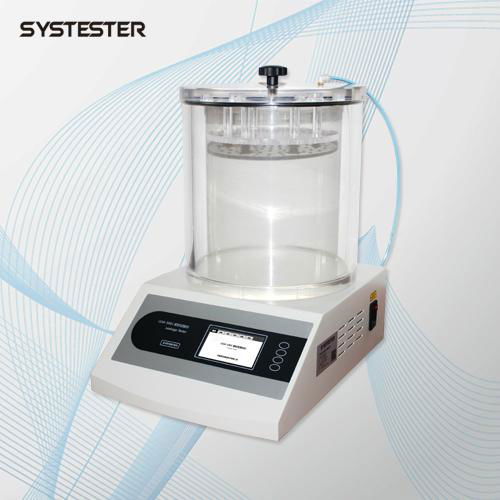

LEAK-5001 Leakage tester SYSTESTER apply to evaluating the leakage of the various kinds of package , can ,bottle etc and widely using in food & pharmaceutical industries. LEAK-5001 Leakage tester SYSTESTER is complied with ASTM D3078, GB/T 15171 standard etc.

LEAK-5001 Leakage tester SYSTESTER  Features

1. Patent technology, Touch screen operation, Real color TFT LCD display.

2. High-accuracy pressure sensor inside.

3. High performance pneumatic parts inside.

4. Overload warning.

5. Designed based on various standards.

6. Low power consumption.

7. RS232 communication port.(Optional)

Technical indexes

Vacuum chamber: 0~ - 92kPa

Accuracy: 0.1%FS

Vacuum chamber size:

Φ270mm×220 mm (H)

Φ360mm×590 mm (H)  (Optional)

 Φ460mm×330 mm (H)  (Optional)

Note: Other vacuum chamber size is customized.

Gas source: 1.1MPa (Provide for yourself )

Gas interface:  Φ6mm

Power supply:  AC 220 V 50Hz

Dimension: 335mm(L)×475mm(B)×530mm(H)

Net weight: 12kg
