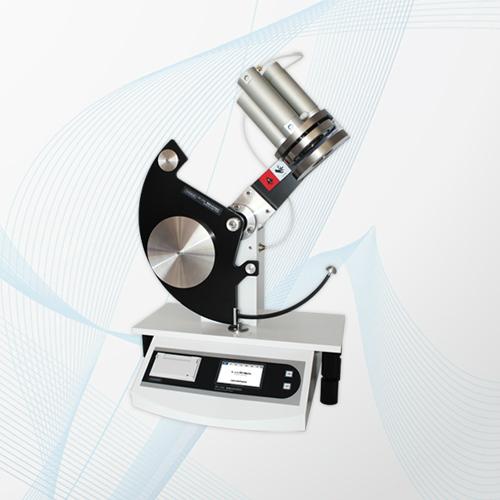

Pendulum impact testers in the metals and plastics industries

Model:PIT-1701
Brand:SYSTESTER
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:pendulum impact test , impact tester films , SYSTESTER China
Price: US $1 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

SYSTESTER Instruments Co.,Ltd.

Free MemberShan Dong - China
Live Chat:
Last Online:22 Aug, 2016

Product Description

Pendulum impact testers in the metals and plastics industries is professionally applicable to the determination of resistance to impact-puncture penetration of films, sheets, composite films, aluminum foils and other materials.



Pendulum impact testers in the metals and plastics industries  main features:

1. Embedded system control , Touch screen operation ,TFT screen display result

2. Patented technology and easy to operate

3. Specimen pneumatic clamp

4. Pendulum pneumatic lock and release

5. Pendulum capacity easy to change

6. Balance auxiliary system

7. Statistic calculation: Max, Min, Mean and standard deviation

8. Micro-printer printing mini report

9. Standard communication port

 10. Professional software optional

 11. Support DSM system



Technical indexes

Impact capacity:  1J, 2J, 3J, 5J (optional)

 Resolution:  0.001J

 Impact head size: Ф25.4mm, Ф19mm, Ф12.7mm (Customized available)

 Specimen holder size : Ф89mm, Ф60mm

 Specimen size: 100 mm x 100 mm, Ф100mm

 Gas resource pressure: 0.3 - 1.5MPa

 Gas resource interface:  Ф6mm

 Instrument dimension: 492mm(L) × 383mm(B) × 752mm(H)

 Power supply:  AC 220V 50Hz

 Net weight:  51 kg



Standards

GB 8809-88ASTM D3420NF T54-116



Configuration

Delivery: Mainframe, 1J pendulum, 2J capacity poise, 3J capacity poise, Ф25.4mm impact head, Ф19mm impact head, Ф89mm plate and Ф60mmplate, micro-printer.

Optional parts: professional software, communication cable, non-standard impact head, O-rings.



Note: Specifications are subject to change without prior notice.


Payment Terms:TT/LC

Product Image

Pendulum impact testers in the metals and plastics industries 1
Img 1
Pendulum impact testers in the metals and plastics industries 2
Img 2
Pendulum impact testers in the metals and plastics industries 3
Img 3
Pendulum impact testers in the metals and plastics industries 4
Img 4
Pendulum impact testers in the metals and plastics industries 5
Img 5
