Logging cable-Modified polypropylene insulated Logging cable

Model:-
Brand:BAOSHIDA
Origin:Made In China
Category:Electronics & Electricity / Optical Fiber, Cable & Wire / Electric Wire & Cable
Label:Logging cable , BAOSHIDA , manufacture
Price: US $100 / meter
Min. Order:1 meter
Inquire Now Add to Basket

Company Information

Detail

ShanDong BaoShiDa Cable Co.,Ltd

Free MemberShan Dong - China
Live Chat:Last Online:05 Jan, 2017

Product Description

Product Name: Modified polypropylene insulated Logging cable

Product Standard:
The product is manufactured according to the standard of SY/T6600—2004.

Application:
This product is applicable to all types of oil and gas well logging, perforation, coring and paraffin oil wells, viscosity, pour point and so on. It’s such kind of oil field exploration armored steel cable which could bear all the above mentioned mechanical load.

Operating Characteristics:
• The lowest temperature that cable could work should not lower than-300C.
• Max temperature is 150 0C for short period ( 2h maximum duration each time).
• Minimum bending radius is 30 times of cable diameter.

Type and name:


Type

Description

Production range of cable

WGSB-4.7

Single core modified polypropylene insulated double-deck steel thread armoured Logging cable













Cable diameter:
¢4.7~¢13.2mm:
Conductor cross-sectional area:
0.2~2.0  mm²

W4B-4.7

Four cores modified polypropylene insulated double-deck steel thread armoured Logging cable

WGSB-5.6

Single core modified polypropylene insulated double-deck steel thread armoured Logging cable

W3BP-5.6

Three cores modified polypropylene insulated screening double-deck steel thread armoured Logging cable

W4BP-5.6

Four cores modified polypropylene insulated screening double-deck steel thread armoured Logging cable

WGSB-8.0

Single core modified polypropylene insulated double-deck steel thread armoured Logging cable

W3BP-3.0

Three cores modified polypropylene insulated screening double-deck steel thread armoured Logging cable

W4BP-8.0

Four cores modified polypropylene insulated screening double-deck steel thread armoured Logging cable

W7B-6.4

Seven cores modified polypropylene insulated double-deck steel thread armoured Logging cable

W7BP-10.8

Seven cores modified polypropylene insulated screening double-deck steel thread armoured Logging cable

W3BP-11.8

Three cores modified polypropylene insulated screening double-deck steel thread armoured Logging cable

W7BP-11.8

Seven cores modified polypropylene insulated screening double-deck steel thread armoured Logging cable

W7BPP-11.8

Seven cores modified polypropylene insulated split-phase screening double-deck steel thread armoured Logging cable

W7BP-12.6

Seven cores modified polypropylene insulated screening double-deck steel thread armoured Logging cable

W7BP-13.2

Seven cores modified polypropylene insulated screening double-deck steel thread armoured Logging cable

Main performance:

Type

Nominal Diameter mm

Conductor nominal cross section mm²

Conductor structure No. / diameter

Rated pull-off Force kN

Conductor DC Resistance (20℃)
Ω/km

Insulation resistance (20℃)
M Ω/km

Capacitor (1kHz)
μF/km

Frequency voltage test

WGSB-4.7

4.70

0.56

7/0.32

15

≤36.00

≥200

≤0.17

1KV
5 min
No breakdown

W4B-4.7

4.70

0.22

7/0.20

13

≤84.30

≥200

≤0.19

WGSB-5.6

5.60

1.01

19/0.26

25

≤18.10

≥200

≤0.22

W3BP-5.6

5.60

0.24

7/0.21

25

≤84.30

≥200

≤0.17

W4BP-5.6

5.60

0.24

7/0.21

25

≤84.30

≥200

≤0.15

WGSB-8.0

8.00

1.02

7/0.43

45

≤18.10

≥200

≤0.14

W3BP-8.0

8.00

0.56

7/0.32

45

≤36.00

≥200

≤0.18

W4BP-8.0

8.00

0.49

7/0.30

45

≤36.00

≥200

≤0.20

W7B-6.4

6.40

0.24

7/0.21

25

≤84.30

≥200

≤0.13

W7BP-10.8

10.80

0.56

7/0.32

80

≤36.00

≥200

≤0.19

W3BP-11.8

11.80

0.56

7/0.32

80

≤18.10

≥200

≤0.14

W7BP-11.8

11.80

0.56

7/0.32

80

≤36.00

≥200

≤0.14

W7BPP-11.8

11.80

0.56

7/0.32

80

≤36.00

≥200

≤0.16

W7BP-12.6

12.60

0.56

7/0.32

80

≤36.00

≥200

≤0.14

W7BP-13.2

13.20

0.56

7/0.32

85

≤36.00

≥200

≤0.14



Cable Length :

We could supply modified polypropylene insulated cable of length between 2000 m---8000 m, with entire root, its length deviation is between -2%~+3%, any length of cable could be provided after mutual agreements.




Product Image

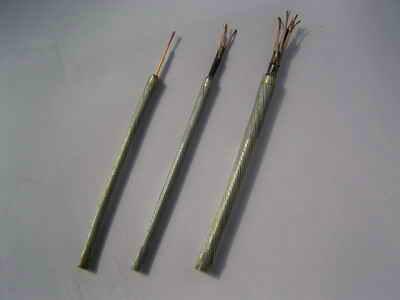

Logging cable-Modified polypropylene insulated Logging cable 1
