Ashly 4.8SP Loudspeaker Management System/4 Input,8Output

Model:4.8SP
Brand:ASHLY
Origin:Made In China
Category:Computers & AV Digital / AV Equipment / Audio & Sets
Label:ashly4.8SP , speaker management , ashly processor
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Aoster Digital & Electronics Factory

Free MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:10 Jul, 2019

Product Description

Professional Audio Processor/Speaker Management  ASHLY 4.8SP Digital DSP Processor

USB and RS-232 interface

Protea System Processor (4.8) The system processor shall consist of four inputs and eight outputs. It shall utilize 48-bit double-precision fixed-point DSP filtering with 24 bit, 48kHz, 128x oversampling delta-sigma A/D and D/A converters. Digital processing includes Gain, Parametric EQ, Shelving Filters, Time Delay, Crossover Functions, Compression, Limiting, and Matrix Routing. All inputs and outputs are RFI-protected precision balanced on XLR connectors. The processor shall have a front panel interface that allows quick access to all control parameters by offering dedicated function buttons, eliminating the need for hidden sub-menus. The front panel shall have a large white-backlit LCD text display for easy viewing. Front panel LED meter bars shall also be provided on all inputs and outputs. A USB port shall be provided on the front and rear panels for even faster set-ups and stronger visualization of input/output routing, EQ, and filter curves using freely available control software. The back panel shall also provide an RS-232 data port for control and monitoring. The digital processor shall be capable of storing up to 30 preset file “snapshots”. It shall include four security modes; Off, Preset Lock, Parameter Lock, and Full Lockout. When connected to a PC via the USB port, security settings made on the unit are read and used within the software security section. The DSP processor shall mount in a standard 19” rack using 1 space (1.75” high).

Features

4.8SP Features:

• Front Panel Parameter Control

• Single rack space with XLR audio connections

• Extremely intuitive user interface

• Crossover, EQ, delay and limiter functions

• Outputs assignable to any input

• Front panel or PC programming and control with 4 levels of security

• USB and RS-232 interface

• Third-party control friendly

• Balanced inputs and outputs

• Linkwitz-Riley, Bessel and Butterworth filters

• 12, 18, 24 and 48dB/octave slopes

• Parametric EQ: 1/64th to 4 octave range

• 682ms input and output delay (1,364ms total)

• Limiter on each output

• Individual input and output metering




Price Terms:EX-W
Payment Terms:TT /Western Union/Money gram
Packing:5pcs/carton
Lead Time:2 days

Product Image

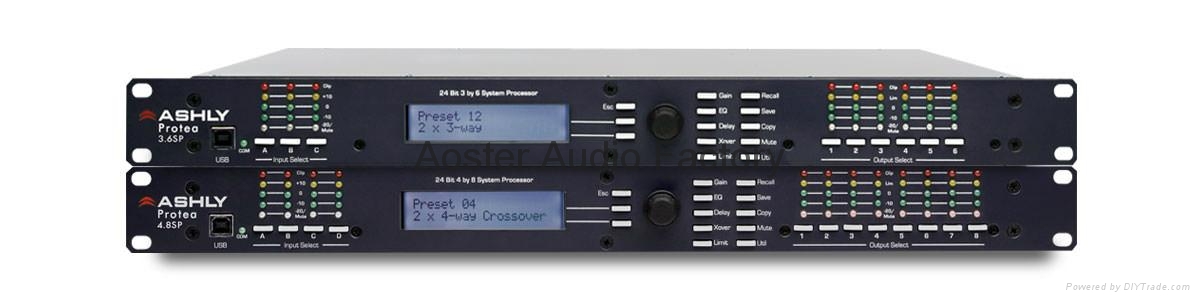

Ashly 4.8SP Loudspeaker Management System/4 Input,8Output 1
Img 1
Ashly 4.8SP Loudspeaker Management System/4 Input,8Output 2
Img 2
Ashly 4.8SP Loudspeaker Management System/4 Input,8Output 3
Img 3
