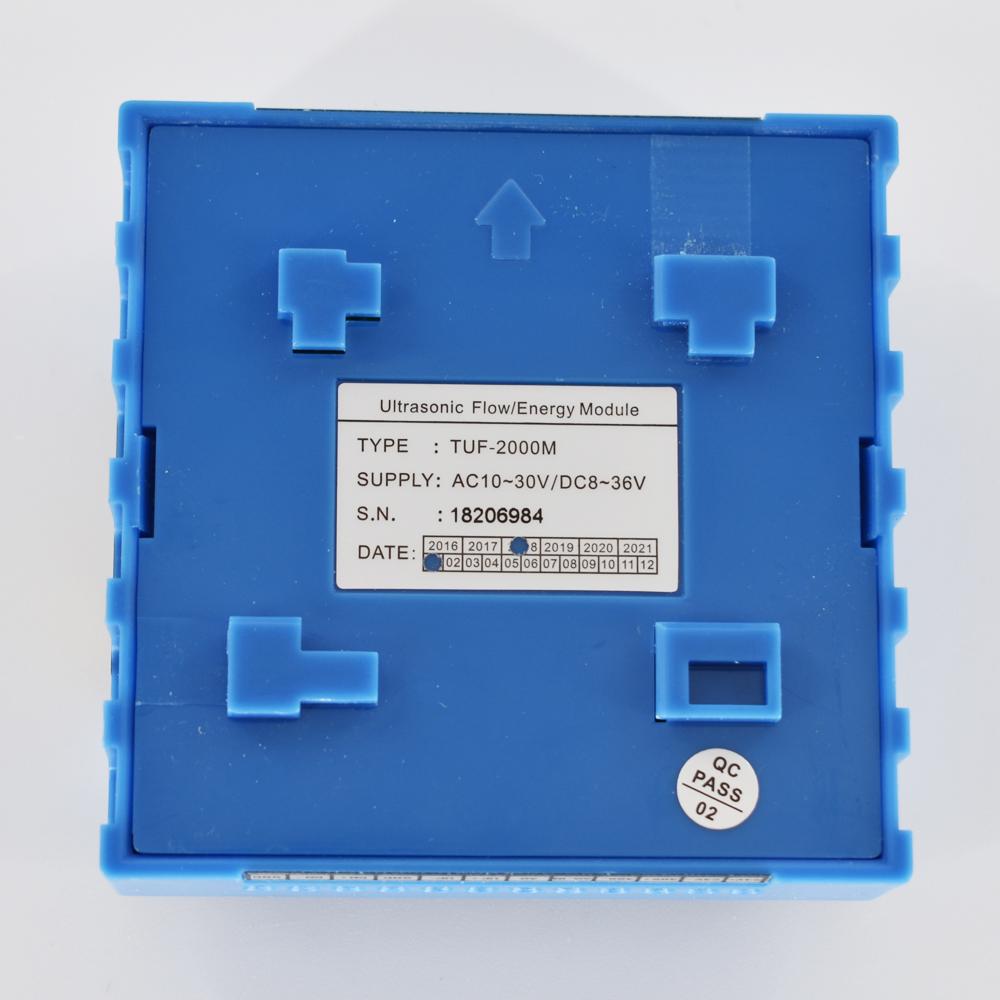

| Model: | TUF-2000M |
|---|---|
| Brand: | AERMANDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Air & Gas Flowmeter |
| Label: | TUF-2000M , Ultrasonic flowmeter , Digital Flow Meter |
| Price: |
US $120
/ Piece
|
| Min. Order: | 1 Piece |
| Live Chat: | Last Online:22 Mar, 2024 |
Working Environment
| Main Unit | Transducer | |
| Protection Level | IP65 | IP68 |
| Humidity | ≤85%RH | |
| Temperature | -20~60°c | -30~160°c |
Basic Parameters
| Accuracy |
≤1% |
| Velocity range | 0~±10m/s, Bi-directional measurement |
| Pipe size | DN15~DN6000mm |
| Temperature | -30~160°c |
| Type of liquid | Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc. |
| Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed. |
| Signal output |
1 way 4-20mA output 1 way OCT pulse output 1 way Relay output |
| Signal input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Power supply | DC8~36V or AC85~264V |
Standard Packing:
TUF-2000M Ultrasonic Flow Meter
Steel Belt
TS-2 Transducer
10 Meters Signal Cable
If you need other transducer or extend the signal cable length, please contact us.
Optional Transducers:
|
Types |
Spec. |
Model |
Measure range(mm) |
Temperature |
Size |
|
Clamp on |
Small |
TS-2 |
DN25~100 |
-30~90℃ |
42×25×32mm |
|
Medium |
TM-1 |
DN50~700 |
-30~90℃ |
69×39×44mm |
|
|
Large |
TL-1 |
DN300~6000 |
-30~90℃ |
97×54×53mm |
|
|
High temperature clamp on |
Small |
TS-2-HT |
DN15~100 |
-40~160℃ |
45×25×32mm |
|
Medium |
TM-1-HT |
DN50~700 |
-40~160℃ |
64×39×44mm |
|
|
Large |
TL-1- HT |
DN300~6000 |
-40~160℃ |
97×54×53mm |
