| Model: | - |
|---|---|
| Brand: | SR |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh |
| Label: | 3D mesh panel , welded mesh panel , 3D sandwich panel |
| Price: |
US $11
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: | Last Online:15 Oct, 2015 |

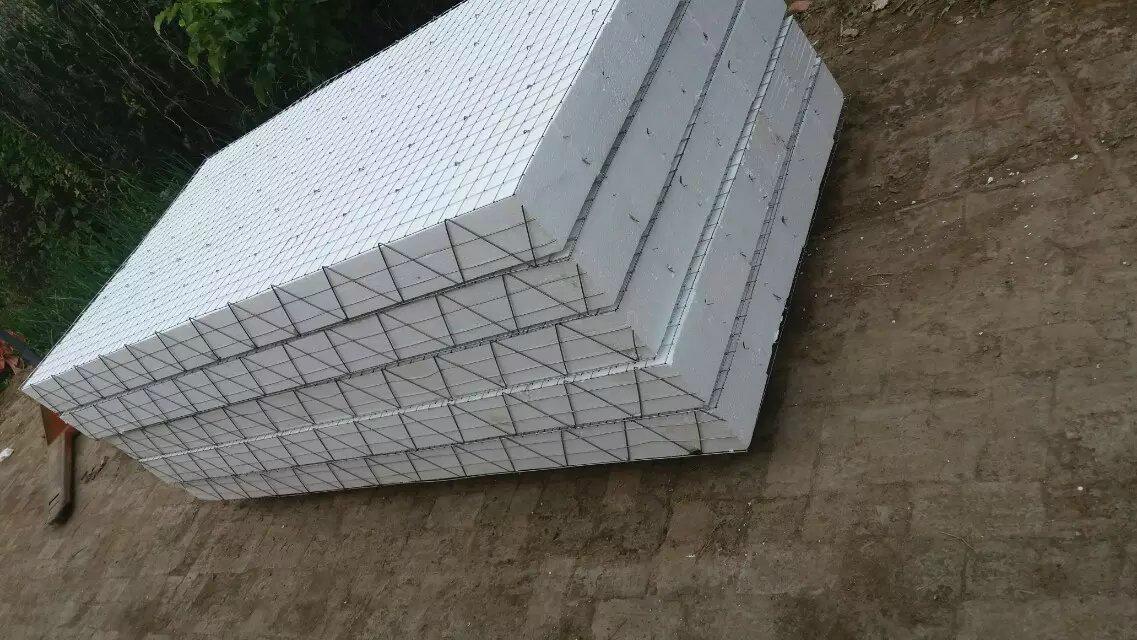

3D eps mesh wall panel 3D welded wire mesh
3D welded wire mesh is a new wire mesh products, also called double layer welded wire panel,
using welding method joining two pieces of welded wire panel together, mainly used in
construction. The side panel mesh is commonly 2" opening with 11 or 12 gauge wire, surface
with galvanized wire panel or hot dip galvanized wire panel. Inserted EPS size is 2", 2.5" and 4" It's high tensileand is easy to install and these features make 3d wire mesh panels very popular
by world construction customers.
Specificasion of 3d welded wire mesh
|
Mesh wire: |
2-2.8mm galvanized or non galvanized. |
|
Mesh opening(mm) : |
50 x 50, 75 x 75 and 100 x 100. |
|
Truss wire: |
2-2.8mm galvanized or non galvanized. |
|
Panel: |
1200mm or 1220mm. |
|
Panel length: |
2400mm, 3000mm and 6000mm. |
|
EPS Insulation Core: |
50-100mm. |
