| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh |
| Label: | welded mesh panel , wire mesh , security mesh fencin |
| Price: |
US $2
/ sq.meter
|
| Min. Order: | 100 sq.meter |
| Last Online:15 Oct, 2015 |

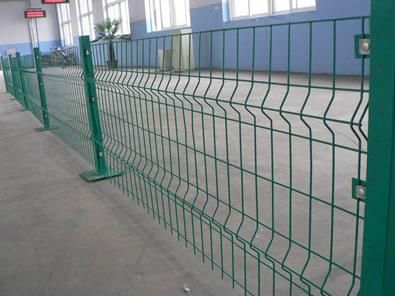

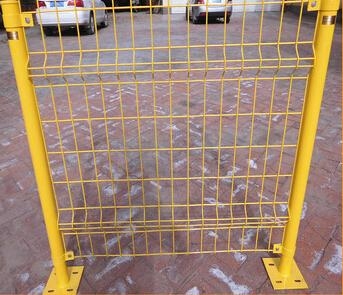

3D Powder coated galvanized welded wire mesh fence also called "curvy mesh welded wire fence" and "Triangle bending fence", welded by good quality mild steel wire or galvanized wire, popular used for garden border fence, yard fence, school fence,roadway fence,Living area and villa area fence, development zone, construction engineering isolation and protection fence,etc.
Material: High quality low carbon steel wire
Wire dia: 5mm,4mm
Hole size: 50*200mm
Fence height: 1730mm, 2030mm
Fence Length: 2500mm
Fence Fold No.: 3 or 4
Fence post square: 60x60x1.5mm
Peach shape post:70*50x1.5mm
|
3D Fence Panel Specification |
||||
|
Mesh Opening (mm) |
Wire Diameter (mm) |
Height (cm) |
Width (cm) |
Folds No. |
| 200x55,200x50,100x50 | 3, 3.5, 4, 4.5, 5 | 63 | 200 | 2 |
| 200x55,200x50,100x50 | 3, 3.5, 4, 4.5, 5 | 83 | 200 | 2 |
| 200x55,200x50,100x50 | 3, 3.5, 4, 4.5, 5 | 103 | 200 | 2 |
| 200x55,200x50,100x50 | 3, 3.5, 4, 4.5, 5 | 123 | 200 | 2 |
| 200x55,200x50,100x50 | 3, 3.5, 4, 4.5, 5 | 143 | 200 | 2 |
| 200x55,200x50,100x50 | 3, 3.5, 4, 4.5, 5 | 163 | 250 | 3 |
| 200x55,200x50,100x50 | 3, 3.5, 4, 4.5, 5 | 183 | 250 | 3 |
| 200x55,200x50,100x50 | 3, 3.5, 4, 4.5, 5 | 203 | 250 | 4 |
| 200x55,200x50,100x50 | 3, 3.5, 4, 4.5, 5 | 223 | 250 | 4 |
| 200x55,200x50,100x50 | 3, 3.5, 4, 4.5, 5 | 243 | 250 | 4 |
|
Peach shape Post |
|
|
Size |
50*70mm,70*100mm |
|
Thickness |
1.5mm,2.0mm |
|
Height |
1.8m,2.1m,2.3m,2.5m or a as your request |
|
Square Post |
|
|
Size |
40*40mm,50*50mm,60*60mm |
| thickness | 1.2mm,,1.5mm,2.0mm |
| height | 1.8m,2.1m,2.3m,2.5m or as your request |
|
Round post |
|
| Size |
38mm,48mm,60mm |
| Thickness |
1.2mm,,1.5mm,2.0mm |
| Height | 1.8m,2.1m,2.3m,2.5m or as your request |
