Studs, tracks, channels, angles for wall partition and ceiling suspension

Model:ZCSP-01
Brand:HUAXIN
Origin:Made In China
Category:Construction & Decoration / Building Steel & Structure
Label:GAL.STEEL Studs , Tracks , Channels
Price: US $2 / pc
Min. Order:1000 pc
Inquire Now Add to Basket

Member Information

Detail

SHANDONG HUAXIN BUILDING MATERIALS LIMITED

Biz MemberShan Dong - China
Live Chat:
点击这里给我发消息Last Online:18 May, 2020

Product Description

Galvanized steel profiles for plasterboard wall partition including:

studs, track or rails, main channels, vice channels, furring channels,

wall angles.

Specifications:

Thickness:0.3mm--1.2mm

Length: 1.8m, 2m,3m,3.6m,5m according to requirements

Surface: Galvanized, Zinc coating is 40g/m2-180g/m2

Technology:adopting high-grade quality hot-dipped galvanized steel,

The products surface:  zero spangle,and intensity toughness,

besides, it can add 20% more than common product

Packing: loose bundle package each 8pcs or 10pcs,12pcs,20pcs



FEATURES:

1.Our products’ raw material is high quality hot dipped zinc

galvanized steel strip, absolute fireproof and heat insulation,

waterproof and anti-rust, anti-corrosive,high durability

2. Hot dipped zinc galvanized steel strip zinc coating is 40-180g/m2

3.Selling well in Middle East , Africa ,Australia, Malaysia ,and America ,

wherethe products have enjoyed an excellent reputation with

high quality and services

4. We can professionally manufacture the special specification products

5.Advanced equipment and technology can make sure the products

exactly size and high quality



Specification for Asia:

Main channel: 38x12mm

Furring channel: 68x35x12mm

Wall angle: 25x25mm

C studs: 50x35mm

C studs: 70x35mm

C studs: 75x35mm

C studs: 100x50mm

U track: 52x25mm

U track: 72x25mm

U track: 76x25mm

U track: 100x40mm



Specification to Australia:

Top cross rail: 25x21mm

Furring channels: 28x38mm

Furring channels: 16x38mm

Furring channel track: 28x2030mm

Furring channel track: 16x20x30mm

C studs: 64x33.5x35.5mm

C studs: 76x33.5x35.5mm

C studs: 92x33.5x35.5mm

C studs: 150x33.5x35.5mm

U track: 51x32x32mm

U track: 64x32x32mm

U track: 76x32x32mm

U track: 92x32x32mm



Specification to Europe, Russia; Ukraine;Georgia. etc.

C studs: 60x27mm

U track:  28x27mm

C studs: 50x50mm

U track:  50x40mm

C studs: 75x50mm

U track:  75x40mm

C studs: 100x50mm

U track:  100x40mm


Payment Terms:T/T or L/C

Product Image

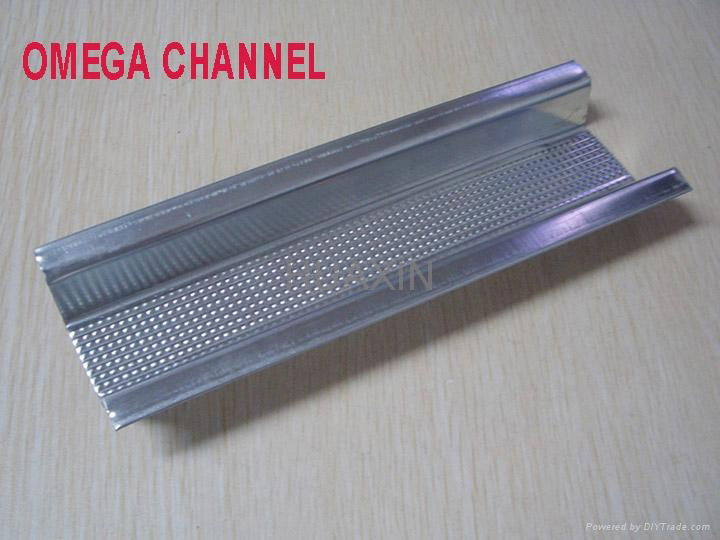

OMEGA CEILING CHANNEL
Img 1

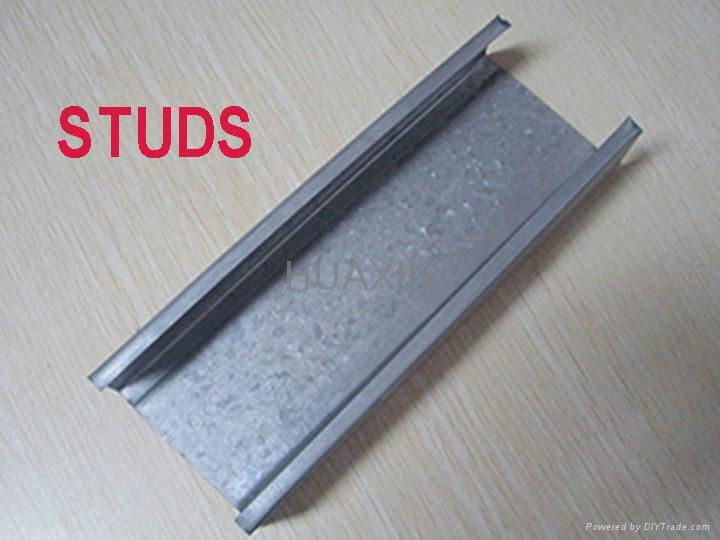

STUDS
Img 2

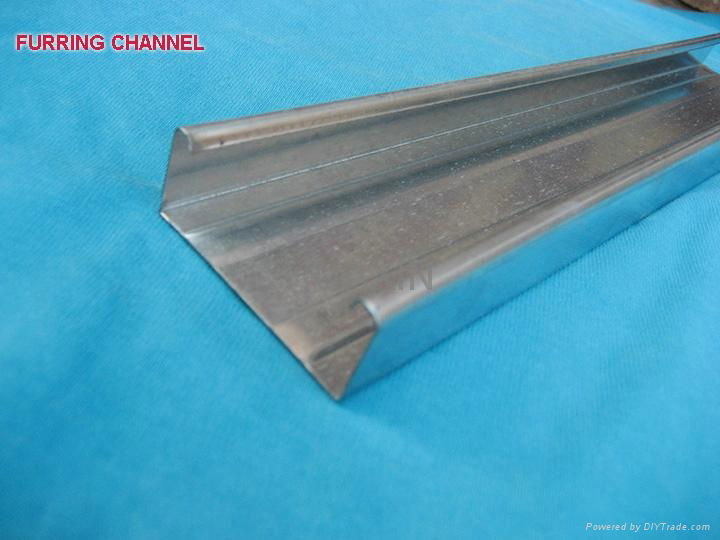

FURRING CHANNEL
