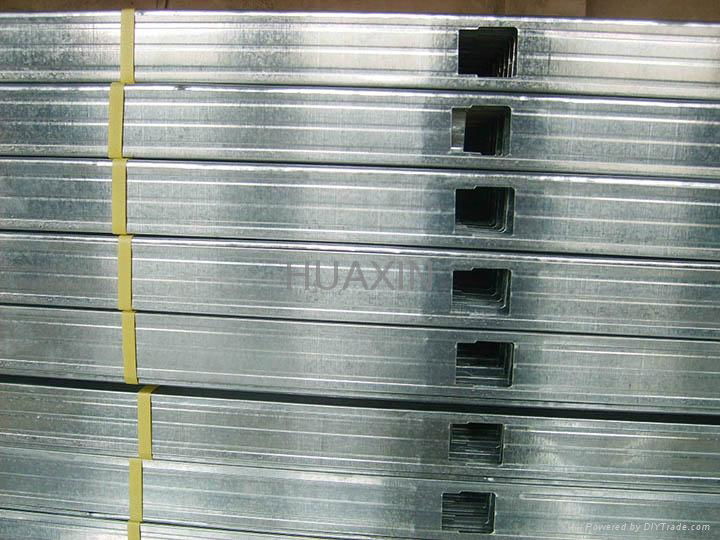

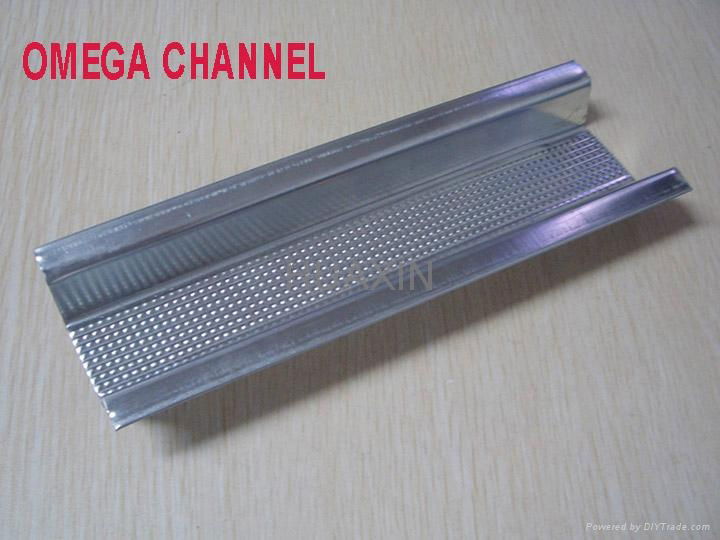

Galvanized steel profiles for plasterboard wall partition including:

studs,track or rails,main channels,vice channels furring channels,wall angles.

Specifications:

Thickness:0.3mm--1.2mm

Length: 1.8m, 2m,3m,3.6m,5m according to requirements

Surface: Galvanized, Zinc coating is 40-180g/m2

Technology:adopting high-grade quality hot-dipped galvanized steel,

The products surface zero spangle,and intensity toughness

Packing: loose bundle package each 8pcs or 10pcs, 12pcs, 20pcs

FEATURES:

1. Our products’ raw material is high quality hot dipped zinc

    galvanized steel strip, absolute fireproof and heat insulation,

    waterproof and anti-rust, anti-corrosive,high durability

2. Hot dipped zinc galvanized steel strip zinc coating is 40-180g/m2

3. Selling well in Middle East , Africa ,Australia, Malaysia ,and America ,

     wherethe products have enjoyed an excellent reputation with

     high quality and services

4. We can professionally manufacture the special specification products

5. Advanced equipment and technology can make sure the products

    exactly size and high quality

Specification for Asia:

Main channel: 38x12mm

Furring channel: 68x35x12mm

Wall angle: 25x25mm

C studs: 50x35mm

C studs: 70x35mm

C studs: 75x35mm

C studs: 100x50mm

U track: 52x25mm

U track: 72x25mm

U track: 76x25mm

U track: 100x40mm

Specification to Australia:

Top cross rail: 25x21mm

Furring channels: 28x38mm

Furring channels: 16x38mm

Furring channel track: 28x2030mm

Furring channel track: 16x20x30mm

C studs: 64x33.5x35.5mm

C studs: 76x33.5x35.5mm

C studs: 92x33.5x35.5mm

C studs: 150x33.5x35.5mm

U track: 51x32x32

U track: 64x32x32

U track: 76x32x32

U track: 92x32x32

Specification to Europe, Russia; Ukraine;Georgia. etc.

C studs: 60x27mm

U track: 28x27mm

C studs: 50x50mm

U track: 50x40mm

C studs: 75x50mm

U track: 75x40mm

C studs: 100x50mm

U track: 100x40mm
