API 13 A SECTION - 12 : Attapulgite / Salt Clay
Product Description
API 13 A SECTION - 12
|
Sr. No.
|
Parameters
|
API 13 A SECTION 12 (ATTAPULGITE)
|
|
1
|
Viscometer dial reading at 600 rpm
|
30 min
|
|
2
|
Residue > 75 µm
|
8% max
|
|
3
|
Moisture Content
|
16% max
|
Applications:
- Drilling mud (gel) is crucial in the extraction of drill cutting during the drilling processes.
- Drilling mud (gel) is a major component in well drilling process.
- Another conventional use of bentonite is as a mud constituent for oil and water well drilling. Its roles are mainly to seal the borehole walls, to remove drill cuttings and to lubricate the cutting head.
Note: All the test carried out as per IS Standard.
Advantage:
- Bentonite extracts the drill cutting from around the bit which is then floated to the surface.
- Bentonite seals the drill hole against seepage and prevents wall cavities and leakages.
- Bentonite (Drilling mud) served to cool and lubricate the drill bit.
- Bentonite form slurry with leakages that is pumped through drill stem and out through drill bit.

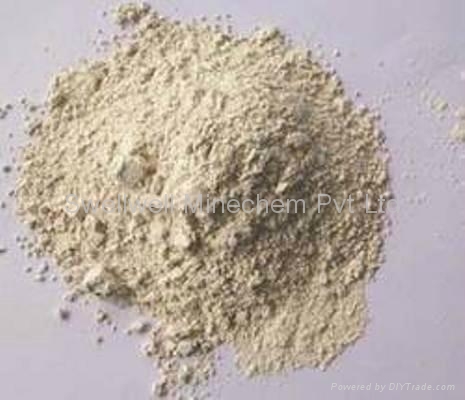

Product Image
Img 1
Img 2
