LA-28 dual 8'' stage line array Mini pa speakers Line Array systems

Model: LA-28
Brand:tir
Origin:Made In China
Category:Electronics & Electricity / Other Electrical & Electronic
Label:line array , dual 8''
Price: -
Min. Order:2 pc
Inquire Now Add to Basket

Member Information

Detail

Guangzhou T.I Reward CO.,LTD

Free MemberGuang Dong - China
Live Chat:Last Online:31 Oct, 2015

Product Description

LA-28 is a two-way line array module with high efficiency which specially designed for medium and small-scale performance.

Two 8" neodymium magnet LF loudspeakers with 3" voice coil.

The modules are designed to be used in multiples with a minimal configuration of three. Up to 20 units can be arrayed to achieve extreme high levels needed for larger venues.

 - Medium scale venues (concert hall, auditorium, theatre, clubs), touring show, rental market

- Drivers:2x8" LF;1x3" HF

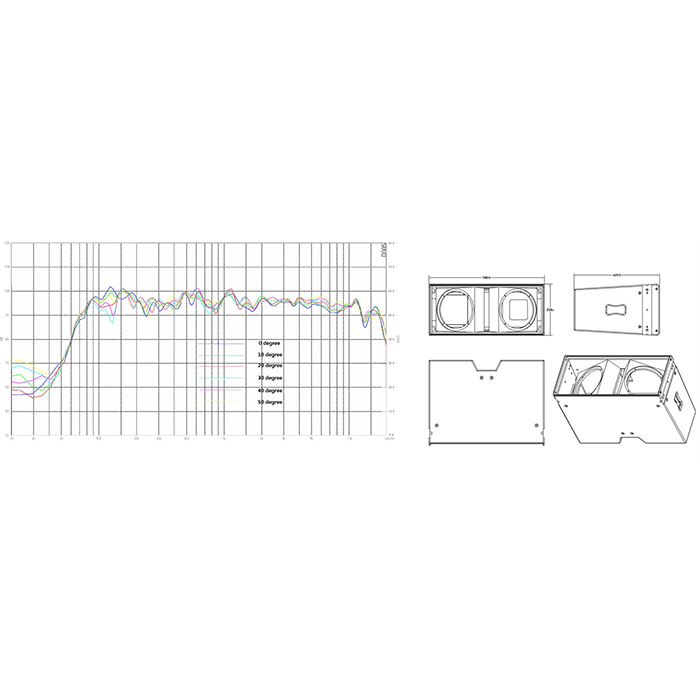

Frequency Response            70Hz-20kHz ± 3dB

Power handling                LF 500W (RMS) 1000W (PEAK)

                              HF 100W (RMS) 200W (PEAK)

Sensitivity                   LF 97dB(1W@1M)

                              HF 108dB(1W@1M)

Max@S.P.L.                    LF 124dB(PEAK/1M)

                              HF 128dB(PEAK/1M)

LF section                    2×8"(210mm) woofer

Nominal impedance             8ohm

HF section                    3"compression driver

Nominal impedance             8ohm

Dispersion                    110°H×10°V

Speaker cables                LF 1(+)1(-)  HF 2(+)2(-)

Input connectors              2×NL4MP speakon

Dimensions                    580×260×430mm(W×H×D)

Package dimensions            650×330×500mm/0.11cbm

Enclosure                     Plywood

Net weight                    23kg

Gross weight                  26kg




Product Image

 LA-28 dual 8'' stage line array Mini pa speakers Line Array systems 1
Img 1
 LA-28 dual 8'' stage line array Mini pa speakers Line Array systems 2
Img 2
 LA-28 dual 8'' stage line array Mini pa speakers Line Array systems 3
Img 3
 LA-28 dual 8'' stage line array Mini pa speakers Line Array systems 4
Img 4
