Highway Guardrail Cold Roll Forming Machine

Model:customized
Brand:Believe Industry
Origin:Made In China
Category:Industrial Supplies / Construction Machine
Label:Guardrail Machine , Roll Forming Machine , Cold Roll Former
Price: US $70000 / set
Min. Order:1 set
Inquire Now Add to Basket

Company Information

Detail

Shanghai Believe Industry Co., Ltd

Free MemberShang Hai - China
Live Chat:
点击这里给我发消息Last Online:23 Nov, 2017

Product Description

Description:
This guardrail forming machine has two kinds of specifications: 2-wave guardrail forming machine and 3-wave guardrail forming machine. The equipment is mainly composed of decoiler, punching unit, roll former, cutting device, product table, and control cabinet, etc. This machine adopts automatic PLC control. The guardrail forming machine enjoys high quality forming and high speed production. The processing flow of this machine includes: decoiling-flattening-punching-forming-cutting.

Properties:
This machine adopts automatic PLC control and touch screen operation. And it has high speed forming process and makes little noise. The equipment adopts welded frame of high intensity. After fine finish, forming rollers get heat treatment before chromeplate. So this equipment has features of stable performance and long service life.

Operation and Points That Need Attention:
The guardrail forming machine is totally automatically controlled by PLC. Therefore, only by inputting related production data, such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and then carry out relevant operation.

Maintenance and Lubrication:
Users should regularly do lubrication for chains and wheels, bearings and speed reducer, etc. And the forming rollers and machine should be kept clean.

Transportation and Packing:
This kind of machine should adopt sea shipping by container and nude packing.

Parameters of the Machine:
1. Suitable material: galvanized sheet, etc.
2. Suitable thickness: 1.5-3mm, 2-4mm
3. Forming specifications: 2-wave, 3-wave
4. Forming speed: 8-10m/min
5. Main motor power: depending on specific requirements of users
6. Cutting mode: hydraulic mould cutting
7. Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands

www.believeindustry.com


Payment Terms:TT 30% as deposit, 70% before shipment

Product Image

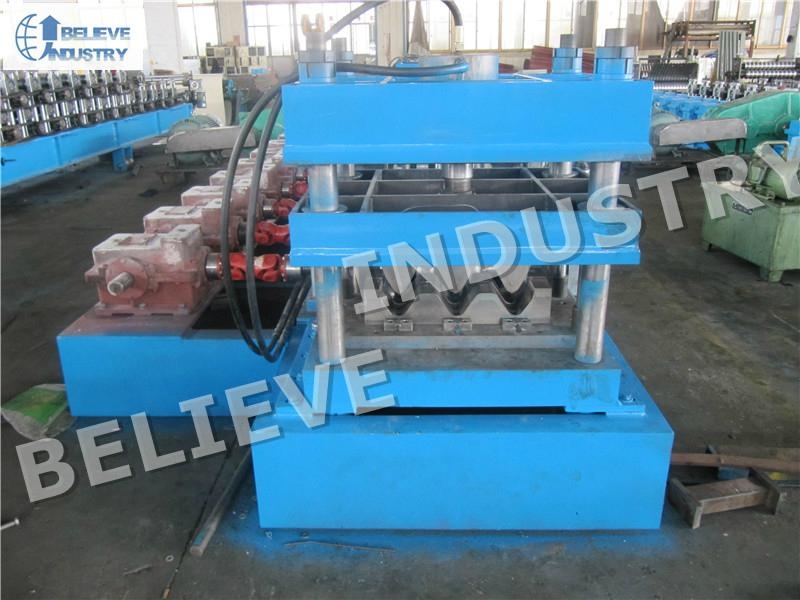

Highway Guardrail Cold Roll Forming Machine 1
Img 1
Highway Guardrail Cold Roll Forming Machine 2
Img 2
Highway Guardrail Cold Roll Forming Machine 3
Img 3
